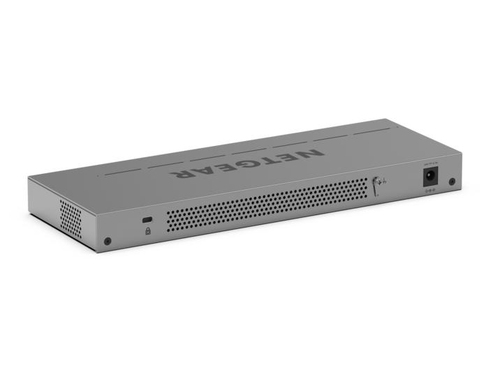

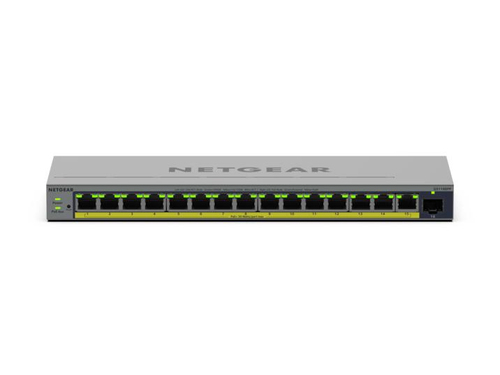

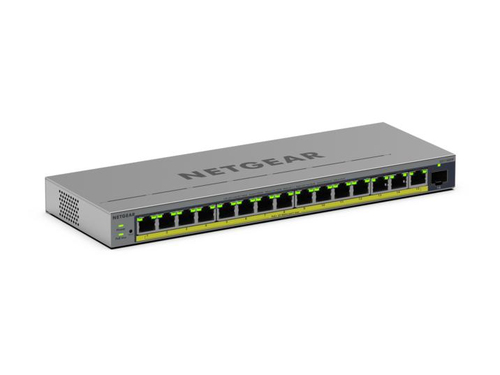

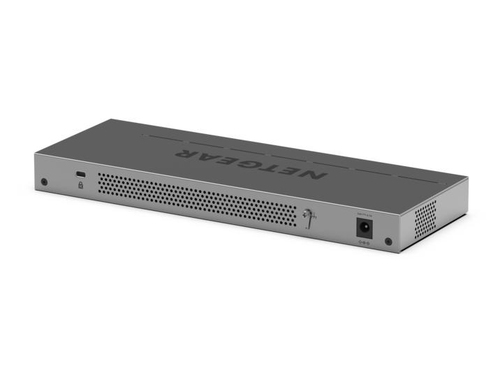

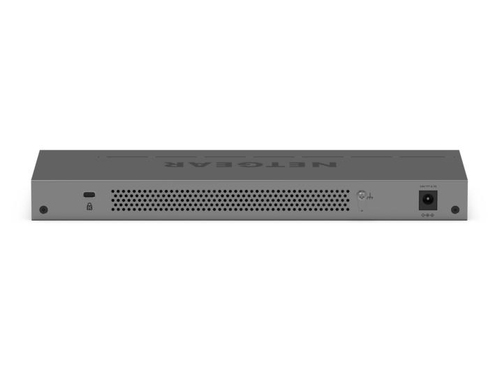

NETGEAR GS116EPP

GS116EPP-100EUS - 606449174830

NETGEAR GS116EPP Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Brand: Netgear
Product code: GS116EPP-100EUS
SKU: N69LT2EVTP5UJ
EAN/GTIN: 606449174830

15 x Gigabit Ethernet ports with PoE+ with 1 SFP Fiber port
Plug-and-play with fundamental network management features
QoS and VLAN management
Energy Efficient Ethernet for maximum power savings
Fanless and silent
Desktop or wall-mount

€318.09 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

16-Port, 1 Gbit/s, 231 W, 8K, 4.1 MB, 0-40°C, Grey, 286 x 101 x 27 mm, 0.83 kg

NETGEAR GS116EPP. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Installed SFP modules quantity: 1. MAC address table: 8000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3az. Power over Ethernet (PoE)

EASY POE CONTROLS

Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for advanced control over all PoE-powered devices

GIGABIT ETHERNET AND FIBER

15 ports provide Gigabit Ethernet connectivity to your devices and 1 SFP fiber port for long distance connections

VLANS

Port-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources

FANLESS DESIGN

Silent operation makes this switch perfect for noise-sensitive environments

VERSATILE MOUNTING OPTIONS

Place your switch on your desktop or mount it to your wall with the hardware provided in the box. Silent operation makes this switch perfect for noise-sensitive environments

ENERGY EFFICIENT

Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

Specifications

Management features

Switch type Managed

Switch layer L2/L3

Quality of Service (QoS) support Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 16

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity 1

SFP module slots quantity 1

Network

Networking standards IEEE 802.1p, IEEE 802.3az

Rate limiting Yes

Ethernet LAN data rates 1000 Mbit/s

VLAN support Yes

Virtual LAN features Port-based VLAN

Number of VLANs 64

Data transmission

Switching capacity 1 Gbit/s

MAC address table 8000 entries

Jumbo frames support Yes

Jumbo frames 10000

Packet buffer memory 4.1 MB

Security

IGMP snooping Yes

Queue scheduling algorithms Strict Priority Queue (SPQ), Weighted Round Robin (WRR)

Multicast features

Multicast support Yes

Number of multicast groups filtered 128

Design

Product colour Grey

Housing material Metal

Performance

Mean time between failures (MTBF) 5704358 h

Power

Power source AC/DC

Power consumption (max) 250.6 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes

Power over Ethernet plus (PoE+) ports quantity 15

Power over Ethernet (PoE) power per port 30 W

Total Power over Ethernet (PoE) budget 231 W

Other features

Bandwidth 32 Gbit/s

Warranty period 5 year(s)

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Operating relative humidity (H-H) 0 - 90%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Weight & dimensions

Width 286 mm

Depth 101 mm

Height 27 mm

Weight 830 g

Packaging content

Quick start guide Yes

Manual Yes

Certificates

Compliance certificates BSMI, CE, Federal Communications Commission (FCC), KC, VCCI
