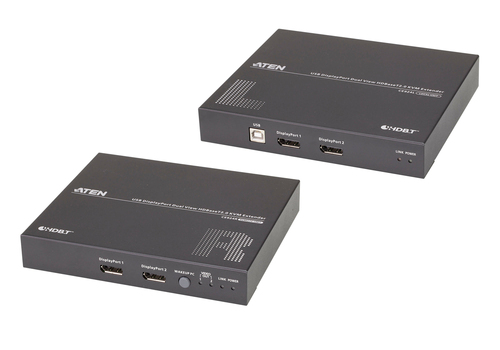

ATEN USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender (4K@100m for Single View)
- Brand
- ATEN
- Product code
- CE924
- SKU
- ZIHW89AWNMK41
- EAN/GTIN
- 4710469340611
- Allows dual view DisplayPort access to a computer and KVM control from a remote console

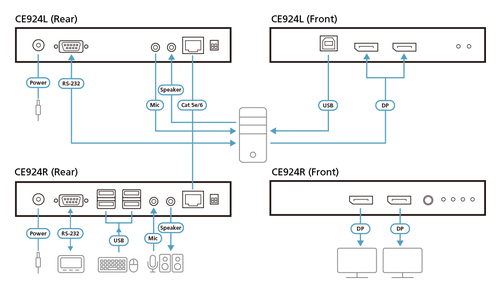

- Extends video, audio, USB, and RS-232 signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable
- Supports 4 ports USB 2.0 full speed hub on the receiver–allowing to connect up to 4 various USB 2.0 peripheral
- Long distance with superior video quality
- HDBaseT™ Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910); (single view only; dual-view resolution up to 1080P)
- HDBaseT™ Long-Reach mode up to 1080P @ 150 m (single view only; dual-view resolution up to 720P)
Product Info
The ATEN CE924 USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, and RS-232 signals. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as it provides long-reach capability that extends Full HD 1080P signals up to 150 meters. In addition, CE924 supports single 4K display or dual 1080p display for DisplayPort video output resolution up to 100m by using a single Cat6 / 2L-2910 Cat 6 cable.
With an easy cable installation supporting various signals, the CE924 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

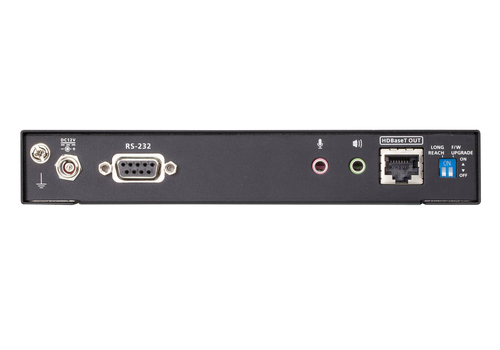

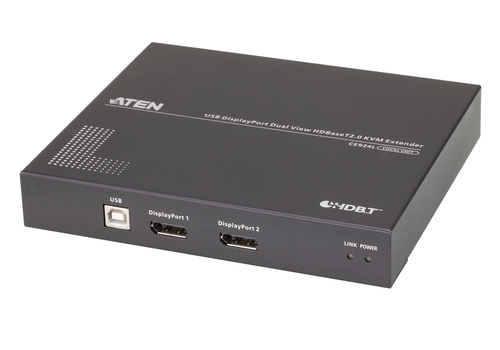

1x CE924L USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Local Unit)
1x CE924R USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
2x DisplayPort cables
1x pink audio jack cable set
1x green audio jack cable set
1x USB Type-A to Type-B cable
2x power adapters
2x mounting kits
1x user instructions
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum digital resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
| Transmitter | |
| Transmitter video port type | DisplayPort |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | DisplayPort |
| RJ-45 ports quantity (receiver) | 1 |
| Ports & interfaces | |
| USB port type | USB Type-A |
| Weight & dimensions | |
| Transmitter width | 15.4 cm |
| Transmitter depth | 17.4 cm |
| Transmitter height | 2.88 cm |
| Transmitter weight | 820 g |
| Receiver width | 15.6 cm |
| Receiver depth | 17.4 cm |
| Receiver height | 2.88 cm |
| Receiver weight | 850 g |
| Packaging data | |
| Package width | 131 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 4.04 kg |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | DisplayPort, USB Type-A to USB Type-B |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Weight | 3.08 kg |
| Logistics data | |
| Master (outer) case net weight | 3.08 kg |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 247 mm |
| Master (outer) case length | 556 mm |
| Master (outer) case height | 153 mm |
| Master (outer) case gross weight | 4.28 kg |
| Products per master (outer) case | 1 pc(s) |
