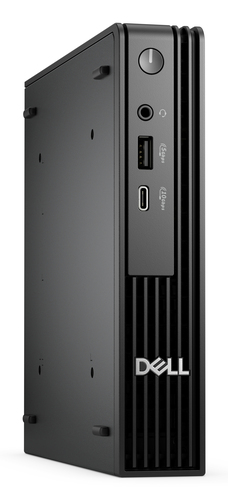

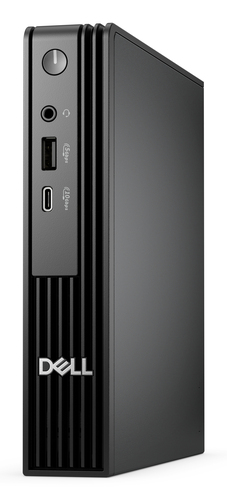

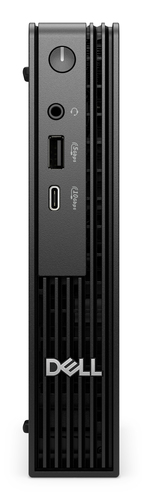

DELL Pro QCM1250

Processor

Processor manufacturer Intel

Processor family Intel® Core™ i5

Processor generation Intel® Core™ i5 (14th gen)

Processor model i5-14500T

Processor cores 14

Processor threads 20

Processor boost frequency 4.8 GHz

Performance cores 6

Efficient cores 8

Performance-core Max Turbo Frequency 4.8 GHz

Efficient-core Max Turbo Frequency 3.4 GHz

Performance-core base frequency 1.7 GHz

Efficient-core base frequency 1.2 GHz

Processor cache 24 MB

Processor cache type Smart Cache

Number of processors installed 1

Processor base power 35 W

Maximum turbo power 92 W

Neural processor unit (NPU)

AI software frameworks supported by NPU DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Memory

Internal memory 8 GB

Maximum internal memory 64 GB

Internal memory type DDR5-SDRAM

Memory layout (slots x size) 1 x 8 GB

Memory slots 2x SO-DIMM

Non-ECC Yes

Memory channels Single-channel

Memory data transfer rate 4800 MT/s

Storage

Total storage capacity 512 GB

Storage media SSD

Optical drive type No

Number of storage drives installed 1

Total SSDs capacity 512 GB

Number of SSDs installed 1

SSD capacity 512 GB

SSD interface PCI Express 4.0

NVMe Yes

SSD form factor M.2

Graphics

Discrete graphics card No

On-board graphics card Yes

Discrete graphics card model Not available

On-board GPU manufacturer Intel

On-board graphics card family Intel® UHD Graphics

On-board graphics card model Intel UHD Graphics 770

Network

Ethernet LAN Yes

Ethernet LAN data rates 10,100,1000 Mbit/s

Cabling technology 10/100/1000Base-T(X)

LAN controller Intel WGI219LM

Wi-Fi Yes

Top Wi-Fi standard Wi-Fi 6E (802.11ax)

Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)

WLAN controller manufacturer Intel

WLAN controller model Intel Wi-Fi 6E AX211

Antenna type 2x2

Bluetooth Yes

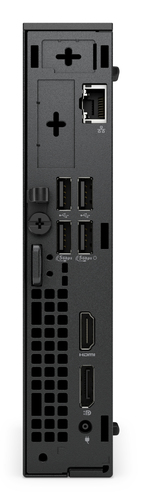

Ports & interfaces

USB 2.0 ports quantity 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1

HDMI ports quantity 1

HDMI version 2.1

DisplayPorts quantity 1

DisplayPort version 1.4a

Ethernet LAN (RJ-45) ports 1

Combo headphone/mic port Yes

DC-in jack Yes

Number of rear USB ports 4

Number of front USB ports 2

Number of front audio ports 1

Design

Chassis type Micro PC

Placement supported Horizontal/Vertical

Cable lock slot Yes

Cable lock slot type Kensington

Product colour Black

Intel® vPro™ Platform Eligibility Yes

Performance

Market positioning Business

Motherboard chipset Intel Q870

Audio chip Realtek ALC3204

Audio system High Definition Audio

Trusted Platform Module (TPM) Yes

Trusted Platform Module (TPM) version 2.0

Product type Mini PC

Software

Operating system installed Windows 11 Pro

Operating system architecture 64-bit

Trial software Activate Your Microsoft 365 For A 30 Day Trial

Power

Power supply 90 W

Power supply input voltage 100 - 240 V

Power supply input frequency 50 / 60 Hz

Operational conditions

Operating temperature (T-T) 10 - 35 °C

Storage temperature (T-T) -40 - 65 °C

Operating relative humidity (H-H) 20 - 80%

Storage relative humidity (H-H) 5 - 95%

Operating altitude -15.2 - 3048 m

Non-operating altitude -15.2 - 10668 m

Operating vibration 0.26 G

Non-operating vibration 1.37 G

Operating shock 40 G

Non-operating shock 105 G

Sustainability

Sustainability certificates ENERGY STAR, EPEAT Climate +, EPEAT Gold

Weight & dimensions

Width 36 mm

Depth 178 mm

Height 182 mm

Weight 1.16 kg

Packaging content

Mouse included on selected markets Dell Optical Mouse-MS116 - Black

Keyboard included on selected markets Dell Wired Keyboard - KB216 - UK (QWERTY) - Black

Display

Display included No
