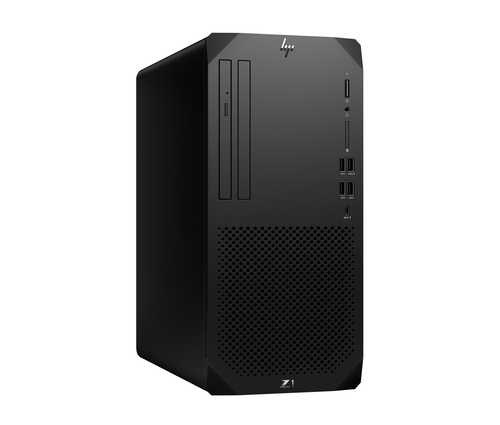

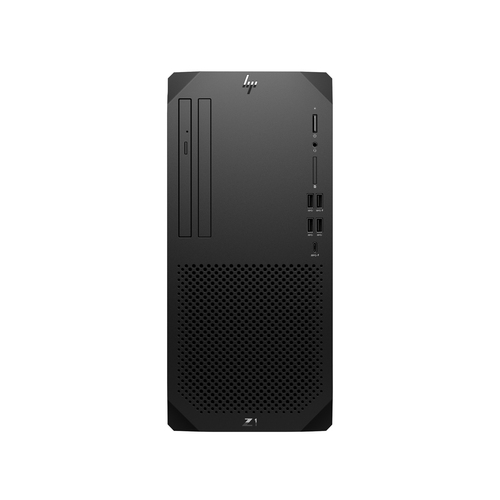

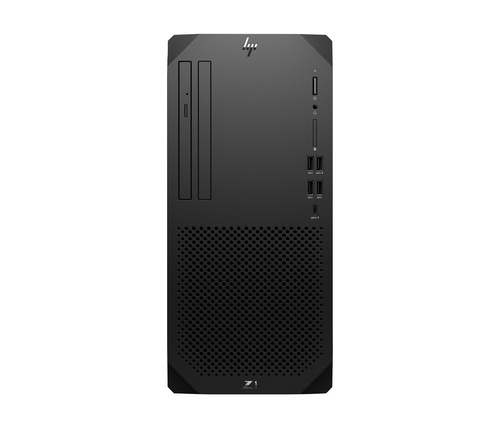

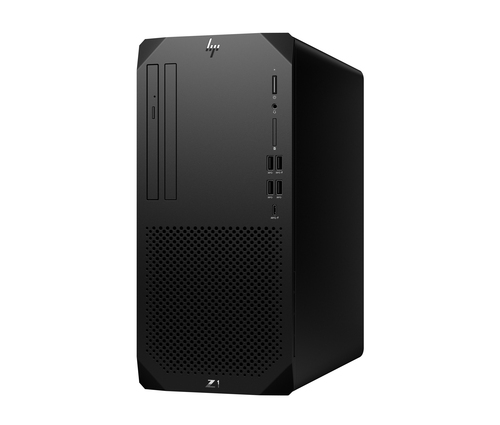

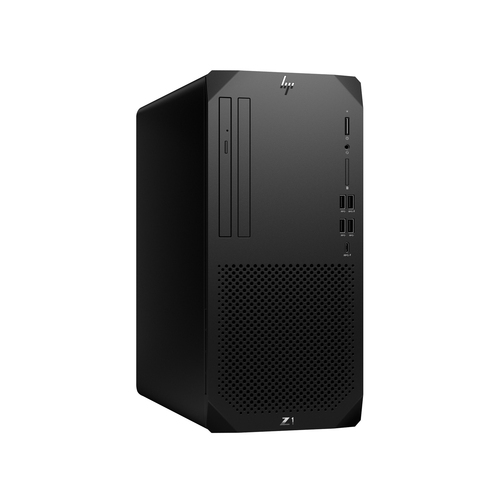

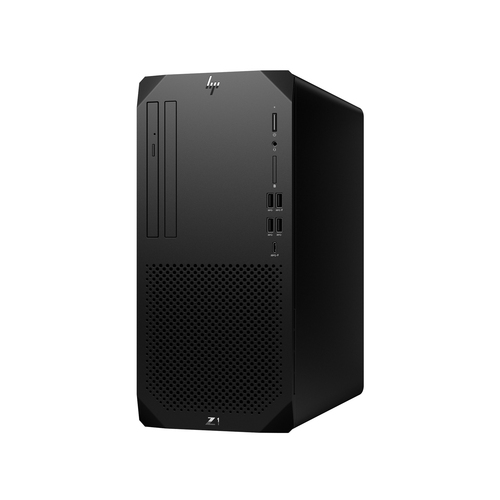

HP Z1 G9 Intel® Core™ i7 i7-14700 32 GB DDR5-SDRAM 1 TB SSD NVIDIA T1000 Windows 11 Pro Tower Workstation AI Workstation Black
- Brand
- HP
- Product code
- 8T2B2EA#ABU
- SKU
- GULHX3GDL9Q7P
- EAN/GTIN
- 198122882922
- Intel Core™ i7-14700 (up to 5.4 GHz with Intel Turbo Boost Technology, 33 MB L3 cache, 20 cores, 28 threads)
- Windows 11 Pro
- NVIDIA T1000 (8 GB GDDR6 dedicated)
- 32 GB DDR5-4800 MT/s (1 x 32 GB), 1 TB PCIe NVMe™ SSD
Product Info
The most affordable pro-certified Z desktop
Pro-grade performance is now within reach with a desktop built for designing, editing and even gaming. From 2D and 3D CAD to entry VR content creation, gain speed and efficiency across your workflows. Go beyond a commercial PC with a desktop certified for select professional software applications.
Description
Intel Core™ i7 processor
Run several CPU–heavy programs simultaneously without sacrificing performance with an Intel Core™ i7 processor.[1]
Windows 11
Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.
Security is your top priority
The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.
Graphics
Create 3D models with NVIDIA T1000.
Tool-less Access
Evolve your work. Evolve your rig. With a tool-less sliding access cover, you can easily get into the the interior, and customize your Z to fit your needs.
Sustainability
This product contains 60% recycled plastics, utilizes 90% power supply efficiency, and meets GreenScreen️ for Safer Chemicals' methodology standards.[2]
Dust Filter
Help keep your system clean while sitting on the factory floor or machining environment with the front-access dust filter.[5]
Sanitizable
Designed to be wiped down using many commonly available household disinfecting and cleaning wipes using the HP cleaning guidelines.[6]
WiFi Connectivity
Wi-Fi 7 can provide higher data rates than Wi-Fi 6E.[7]
Upgrade your performance
Easily multitask with an Intel Core™ processor paired with the ideal graphics for your work. Designing in CAD? Accelerate 3D workflows with professional GPUs.
Certified for your workflow
Work confidently knowing your desktop is tested and certified for select professional apps. We've worked closely with software providers on apps like AutoCAD, SOLIDWORKS and Revit so you get seamless, reliable performance across your workflow.[3]
Industy leading security
HP Wolf for Business security[4] features come standard on every Z1 Tower, for an always-on, always-acting, resilient defense. From the BIOS to the browser, above and below the OS, these constantly evolving solutions help protect your PC from threats.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700 |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 33 MB |
| Processor cache type | L3 |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Memory | |
| Internal memory | 32 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 4800 MHz |
| Storage | |
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro T1000 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 7 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Combo headphone/mic port | Yes |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Design | |
| Chassis type | Tower |
| Placement supported | Vertical |
| Cable lock slot | Yes |
| Product colour | Black |
| Introduction year | 2024 |
| Country of origin | China, Czech Republic |
| Performance | |
| Market positioning | Performance |
| Motherboard chipset | Intel Q670 |
| Audio chip | Realtek ALC3205 |
| Password protection | Yes |
| Password protection type | BIOS, Power on, User |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Product type | Workstation |
| Software | |
| Operating system installed | Windows 11 Pro |
| Pre-installed software | HP Jumpstart; HP Noise Cancellation Software; HP Support Assistant; Buy Office (sold separately); HP Privacy Settings; HP Desktop Support Utilities; HP Setup Integrated OOBE |
| Bundled software | HP Wolf Pro Security Edition (1 year) |
| Brand-specific features | |
| HP JumpStart | Yes |
| HP Support Assistant | Yes |
| HP Security tools | HP Power On Authentication; Power-on password (via BIOS); SATA port disablement (via BIOS); Setup password (via BIOS); Support for chassis padlocks and cable lock devices; USB enable/disable (via BIOS); Serial enable/disable (via BIOS); HP Sure Click; Windows Defender; HP Sure Sense; HP Client Security Manager Gen7; HP Sure Start Gen7; HP Sure Run Gen4; HP Sure Recover Gen4; HP Tamper Lock; TPM 2.0 Embedded Security Chip (Common Criteria EAL4+ Certified) (FIPS 140-2 Level 2 Certified) |
| HP Management tools | HP Client Catalog (download); HP Cloud Recovery; HP Driver Packs; HP Management Integration Kit for Microsoft System Center Configuration Management Gen4; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Image Assistant (download); Ivanti Management Suite (download); HP Client Management Script Library (download) |
| HP Software provided | HP Noise Cancellation Software; Buy Office (sold separately); HP Privacy Settings; HP Desktop Support Utilities; HP Setup Integrated OOBE |
| HP GTIN (EAN/UPC) | 198122882922 |
| HP Artificial Intelligence | AI Workstation |
| HP segment | Business |
| Power | |
| Power supply | 550 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainable technologies and materials | 45% post-consumer recycled plastic; 5% ITE-derived closed loop plastic; Bulk packaging available; 80 Plus® Platinum power supplies available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Ocean-bound plastic in speaker enclosure and system fan; Contains recycled metal |
| Weight & dimensions | |
| Width | 337 mm |
| Depth | 308 mm |
| Height | 155 mm |
| Weight | 5.7 kg |
| Package width | 287 mm |
| Package depth | 400 mm |
| Package height | 499 mm |
| Package weight | 9.24 kg |
| Packaging content | |
| Mouse included | Yes |
| Mouse connectivity | Wired |
| Keyboard included | Yes |
| Keyboard connectivity | Wired |
| Logistics data | |
| Harmonized System (HS) code | 8471500000 |
| Display | |
| Display included | No |
| Technical details | |
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://kaas.hpcloud.hp.com/pdf-public/pdf_6681828_en-US-1.pdf |
| Other features | |
| Keyboard type | USB |
| Manufacturer warranty | 3 year (3/3/3) limited warranty includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. |
