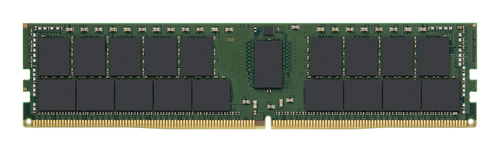

Kingston Technology KSM32RD4/64HD memory module
Kingston Technology KSM32RD4/64HD memory module 64 GB 1 x 64 GB DDR4 3200 MT/s ECC
- Brand
- Kingston
- Product code
- KSM32RD4/64HD
- SKU
- GS3YWY13MTNM7
- EAN/GTIN
- 740617348200
- Power Supply: VDD = 1.2V
- VDDQ = 1.2V
- VPP = 2.5V
- VDDSPD = 2.41V to 2.75V
- Functionality and operations comply with the DDR4 SDRAM datasheet
- 16 internal banks
- Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
- the banks in the same or different bank group accesses are available
- Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
- Supports ECC error correction and detection
- On-Die Termination (ODT)
- Temperature sensor with integrated SPD
- This product is in compliance with the RoHS directive
- Per DRAM Addressability is supported
- Internal Vref DQ level generation is available
- Write CRC is supported at all speed grades
- CA parity (Command/Address Parity) mode is supported
€733.69
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
Kingston's KSM32RD4/64HD is a 8G x 72-bit (64GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/
parity, 2Rx4, ECC, memory module, based on thirty-six 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
| Features | |
|---|---|
| Buffered memory type | Registered (buffered) |
| CAS latency | 22 |
| Internal memory | 64 GB |
| Memory layout (modules x size) | 1 x 64 GB |
| Internal memory type | DDR4 |
| Memory clock speed | 3200 MHz |
| Memory data transfer rate | 3200 MT/s |
| Component for | Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| Memory ranking | 2 |
| Memory voltage | 1.2 V |
| Module configuration | 8192M x 72 |
| Row cycle time | 45.75 ns |
| Row active time | 32 ns |
| SPD profile | Yes |
| Programming power voltage (VPP) | 2.5 V |
| JEDEC standard | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 133.3 mm |
| Height | 31.2 mm |
