Kingston Technology KSM32SED8/16HE memory module
KSM32SED8/16HE - 740617348811
Kingston Technology KSM32SED8/16HE memory module 16 GB 1 x 16 GB DDR4 3200 MT/s ECC
- Brand
- Kingston
- Product code
- KSM32SED8/16HE
- SKU
- GNO8PZ8L5PL0A
- EAN/GTIN
- 740617348811
- Power Supply: VDD = 1.2V
- VDDQ = 1.2V
- VPP = 2.5V
- VDDSPD = 2.20V to 3.60V
- Functionality and operations comply with the DDR4 SDRAM datasheet
- 16 internal banks
- Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available
- Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
- Supports ECC error correction and detection
- On-Die Termination (ODT)
- Temperature sensor with integrated SPD
- This product is in compliance with the RoHS directive
- Per DRAM Addressability is supported
- Internal Vref DQ level generation is available
- Write CRC is supported at all speed grades
- CA parity (Command/Address Parity) mode is supported
- RoHS Compliant and Halogen-Free
€264.22
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
16GB DDR4 3200MT/s ECC Unbuffered SODIMM CL22 2Rx8 1.2V 260-pin 8Gbit Hynix E
Kingston Technology KSM32SED8/16HE. Component for: Server, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR4, Memory form factor: 260-pin SO-DIMM, CAS latency: 22, ECC

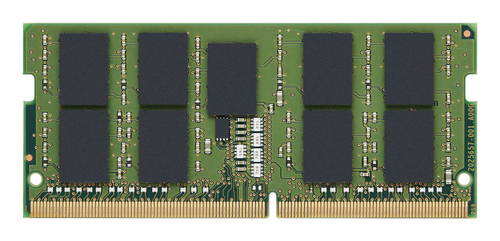

Kingston's KSM32SED8/16HE is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) w/ parity, 2Rx8, ECC, memory module, based on eighteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 260-pin SODIMM uses gold contact fingers.
Specifications
Features
Buffered memory type
Unregistered (unbuffered)
CAS latency
22
Internal memory
16 GB
Memory layout (modules x size)
1 x 16 GB
Internal memory type
DDR4
Memory clock speed
3200 MHz
Memory data transfer rate
3200 MT/s
Component for
Server
Memory form factor
260-pin SO-DIMM
ECC
Yes
Memory ranking
2
Memory voltage
1.2 V
Module configuration
2048M x 72
Row cycle time
45.75 ns
Row active time
32 ns
SPD profile
Yes
Programming power voltage (VPP)
2.5 V
JEDEC standard
Yes
Operational conditions
Operating temperature (T-T)
0 - 85 °C
Storage temperature (T-T)
-55 - 100 °C
Technical details
Compliance certificates
RoHS
Weight & dimensions
Width
69.6 mm
Depth
3.7 mm
Height
30 mm
