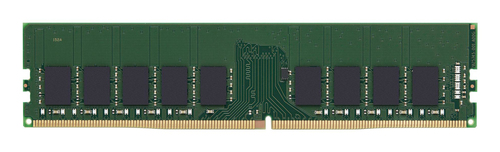

Kingston Technology KSM32ED8/32HD memory module
Kingston Technology KSM32ED8/32HD memory module 32 GB 2 x 16 GB DDR4 3200 MT/s ECC
- Brand
- Kingston
- Product code
- KSM32ED8/32HD
- SKU
- 9YJ9AL6EL50RU
- EAN/GTIN
- 740617348231
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- Temperature sensor with integrated SPD
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
€403.38
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Kingston Technology KSM32ED8/32HD. Component for: Server, Internal memory: 32 GB, Memory layout (modules x size): 2 x 16 GB, Internal memory type: DDR4, Memory form factor: 288-pin DIMM, CAS latency: 22, ECC
Kingston's KSM32ED8/32HD is a 2G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
| Features | |
|---|---|
| Buffered memory type | Unregistered (unbuffered) |
| CAS latency | 22 |
| Internal memory | 32 GB |
| Memory layout (modules x size) | 2 x 16 GB |
| Internal memory type | DDR4 |
| Memory clock speed | 3200 MHz |
| Memory data transfer rate | 3200 MT/s |
| Component for | Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| Memory channels | Dual-channel |
| Memory ranking | 2 |
| Memory voltage | 1.2 V |
| Module configuration | 2048M x 72 |
| Row cycle time | 45.75 ns |
| Row active time | 32 ns |
| SPD profile | Yes |
| Programming power voltage (VPP) | 2.5 V |
| JEDEC standard | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 133.3 mm |
| Height | 31.2 mm |
