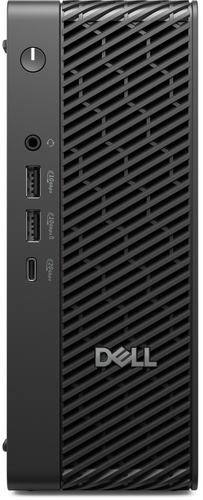

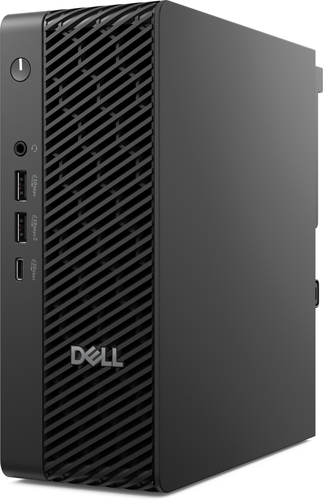

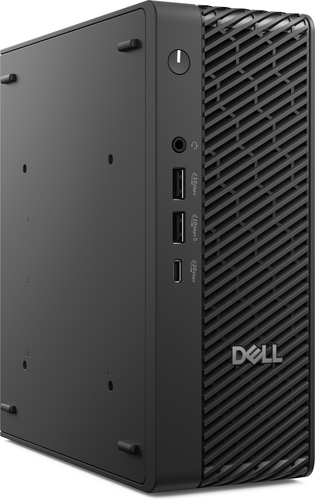

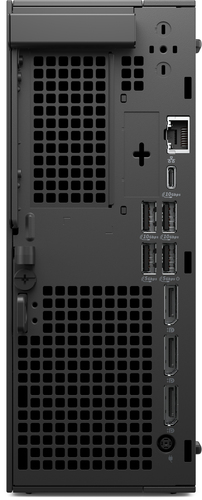

DELL Pro Max FCM2250

Processor

Processor manufacturer Intel

Processor family Intel Core Ultra 7

Processor generation Intel Core Ultra (Series 2)

Processor model 265

Processor cores 12

Processor threads 14

Processor boost frequency 5.3 GHz

Performance cores 2

Efficient cores 8

Low Power Efficient-cores 2

Performance-core Max Turbo Frequency 5.3 GHz

Efficient-core Max Turbo Frequency 4.2 GHz

Low Power Efficient-core Max Turbo Frequency 2.4 GHz

Performance-core base frequency 2.1 GHz

Efficient-core base frequency 1.7 GHz

Low Power Efficient-core Base Frequency 700 MHz

Processor cache 12 MB

Number of processors installed 1

Processor base power 15 W

Maximum turbo power 57 W

Neural processor unit (NPU)

Neural processor unit (NPU) Intel AI Boost

Sparsity support Yes

Windows Studio effects support Yes

AI software frameworks supported by NPU DirectML, ONNX RT, OpenVINO, Windows ML

Memory

Internal memory 16 GB

Maximum internal memory 64 GB

Internal memory type DDR5-SDRAM

Memory layout (slots x size) 1 x 16 GB

Memory slots 2x SO-DIMM

Non-ECC Yes

Memory data transfer rate 5600 MT/s

Storage

Total storage capacity 512 GB

Storage media SSD

Optical drive type No

Number of storage drives installed 1

Total SSDs capacity 512 GB

Number of SSDs installed 1

SSD capacity 512 GB

SSD memory type TLC

SSD interface PCI Express 4.0

NVMe Yes

SSD form factor M.2

M.2 SSD size 2280 (22 x 80 mm)

Graphics

Discrete graphics card Yes

Discrete GPU manufacturer NVIDIA

On-board graphics card Yes

Discrete graphics card model NVIDIA RTX A400

Discrete graphics card memory 4 GB

Discrete graphics memory type GDDR6

Number of discrete graphics cards 1

On-board GPU manufacturer Intel

On-board graphics card family Intel Graphics

On-board graphics card model Intel Graphics

Graphics card Mini DisplayPort ports quantity 4

Network

Ethernet LAN Yes

Ethernet LAN data rates 10,100,1000 Mbit/s

Cabling technology 10/100/1000Base-T(X)

LAN controller Intel® I219-LM

Wi-Fi Yes

Top Wi-Fi standard Wi-Fi 7 (802.11be)

Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

WLAN controller manufacturer Intel

WLAN controller model Intel Wi-Fi 7 BE200

Bluetooth Yes

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1

USB 3.2 Gen 2x2 Type-C ports quantity 1

DisplayPorts quantity 3

DisplayPort version 1.4a

Ethernet LAN (RJ-45) ports 1

Combo headphone/mic port Yes

Expansion slots

PCI Express x8 (Gen 4.x) slots 2

Design

Chassis type Micro PC

Placement supported Horizontal/Vertical

Cable lock slot Yes

Cable lock slot type Kensington

Product colour Black

Intel® vPro™ Platform Eligibility Yes

Performance

Audio chip Realtek ALC3204

Audio system High Definition Audio

Trusted Platform Module (TPM) Yes

Product type Mini PC

Trusted Platform Module (TPM) version 2.0

Software

Operating system architecture 64-bit

Operating system installed Windows 11 Pro

Trial software Activate Your Microsoft 365 For A 30 Day Trial

Power

Power supply 280 W

Power supply input voltage 100 - 240 V

Power supply input frequency 50/60 Hz

Operational conditions

Operating temperature (T-T) 0 - 35 °C

Storage temperature (T-T) -40 - 65 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 0 - 95%

Operating altitude -15.2 - 3048 m

Non-operating altitude -15.2 - 10668 m

Operating vibration 0.66 G

Non-operating vibration 1.3 G

Operating shock 110 G

Non-operating shock 160 G

Sustainability

Sustainability certificates ENERGY STAR

Weight & dimensions

Width 79.3 mm

Depth 178 mm

Height 206 mm

Weight 2.54 kg

Packaging content

Mouse included on selected markets Dell Optical Mouse-MS116 - Black

Keyboard included on selected markets Dell Wired Keyboard - KB216 - UK (QWERTY) - Black

Cables included AC

Carbon footprint

Total carbon footprint (kg of CO2e) 183

Total carbon emissions, standard deviation (kg of CO2e)

Carbon emissions, manufacturing (kg of CO2e) 63.318

Carbon emissions, logistics (kg of CO2e) 3.66

Carbon emissions, energy usage (kg of CO2e) 114.741

Carbon emissions, end-of-life (kg of CO2e) 1.28

Total carbon emissions, w/o use phase (kg of CO2e) 68.259

PAIA version GaBi version 1, 2024

Display

Display included No
