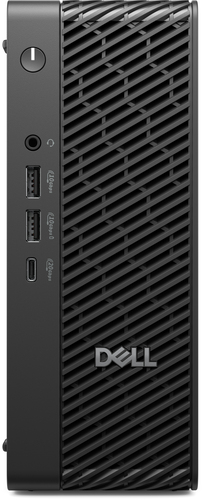

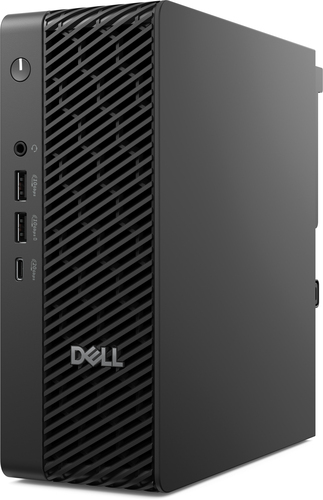

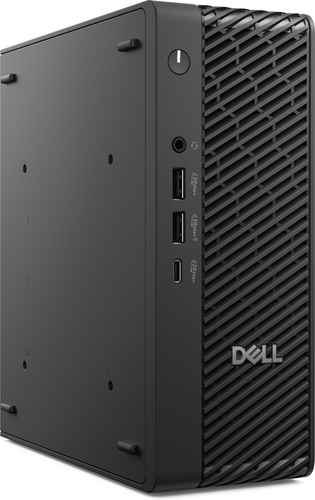

DELL Pro Max FCM2250

Processor

Processor manufacturer Intel

Processor family Intel Core Ultra 7

Processor generation Intel Core Ultra (Series 2)

Processor model 265

Processor cores 20

Processor threads 20

Processor boost frequency 5.3 GHz

Performance cores 8

Efficient cores 12

Performance-core Max Turbo Frequency 5.2 GHz

Efficient-core Max Turbo Frequency 4.6 GHz

Performance-core base frequency 2.4 GHz

Efficient-core base frequency 1.8 GHz

Processor cache 30 MB

Processor cache type Smart Cache

Number of processors installed 1

Processor base power 65 W

Maximum turbo power 182 W

Neural processor unit (NPU)

Neural processor unit (NPU) Intel AI Boost

Sparsity support Yes

Windows Studio effects support Yes

AI software frameworks supported by NPU DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Total processor performance up to 33 TOPs

NPU performance up to 13 TOPs

GPU performance up to 8 TOPs

Memory

Internal memory 16 GB

Maximum internal memory 64 GB

Internal memory type DDR5-SDRAM

Memory layout (slots x size) 1 x 16 GB

Memory slots 2x SO-DIMM

Non-ECC Yes

Memory data transfer rate 5600 MT/s

Storage

Total storage capacity 1 TB

Storage media SSD

Optical drive type No

Number of storage drives installed 1

Total SSDs capacity 1 TB

Number of SSDs installed 1

SSD capacity 1 TB

SSD memory type TLC

SSD interface PCI Express 4.0

NVMe Yes

SSD form factor M.2

M.2 SSD size 2280 (22 x 80 mm)

Graphics

Discrete graphics card Yes

Discrete GPU manufacturer NVIDIA

On-board graphics card Yes

Discrete graphics card model NVIDIA RTX A1000

Discrete graphics card memory 8 GB

Discrete graphics memory type GDDR6

Number of discrete graphics cards 1

On-board GPU manufacturer Intel

On-board graphics card family Intel Graphics

On-board graphics card model Intel Graphics

Graphics card Mini DisplayPort ports quantity 4

Network

Ethernet LAN Yes

Ethernet LAN data rates 10,100,1000 Mbit/s

Cabling technology 10/100/1000Base-T(X)

LAN controller Intel® I219-LM

Wi-Fi Yes

Top Wi-Fi standard Wi-Fi 7 (802.11be)

Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

WLAN controller manufacturer Intel

WLAN controller model Intel Wi-Fi 7 BE200

Antenna type 2x2

Antenna design Internal

Bluetooth Yes

MU-MIMO Yes

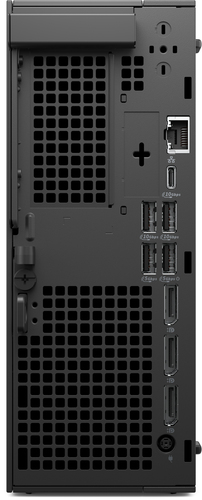

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1

USB 3.2 Gen 2x2 Type-C ports quantity 1

DisplayPorts quantity 3

DisplayPort version 1.4a

Ethernet LAN (RJ-45) ports 1

Combo headphone/mic port Yes

DC-in jack Yes

Expansion slots

PCI Express x8 (Gen 4.x) slots 2

Design

Chassis type Micro PC

Placement supported Horizontal/Vertical

Cable lock slot Yes

Cable lock slot type Kensington

Product colour Black

Intel® vPro™ Platform Eligibility Yes

Performance

Audio chip Realtek ALC3204

Audio system High Definition Audio

Trusted Platform Module (TPM) Yes

Product type Mini PC

Trusted Platform Module (TPM) version 2.0

Software

Operating system architecture 64-bit

Operating system installed Windows 11 Pro

Trial software Activate Your Microsoft 365 For A 30 Day Trial

Processor special features

Intel® Active Management Technology (Intel® AMT) Yes

Power

Power supply 280 W

Power supply input voltage 100 - 240 V

Power supply input frequency 50/60 Hz

Operational conditions

Operating temperature (T-T) 0 - 35 °C

Storage temperature (T-T) -40 - 65 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 0 - 95%

Operating altitude -15.2 - 3048 m

Non-operating altitude -15.2 - 10668 m

Operating vibration 0.66 G

Non-operating vibration 1.3 G

Operating shock 110 G

Non-operating shock 160 G

Sustainability

Sustainability certificates ENERGY STAR, TCO

Weight & dimensions

Width 79.3 mm

Depth 178 mm

Height 206 mm

Weight 2.54 kg

Packaging content

Mouse included on selected markets Dell Optical Mouse-MS116 - Black

Keyboard included on selected markets Dell Wired Keyboard - KB216 - UK (QWERTY) - Black

Cables included AC

Carbon footprint

Total carbon footprint (kg of CO2e) 183

Total carbon emissions, standard deviation (kg of CO2e)

Carbon emissions, manufacturing (kg of CO2e) 63.318

Carbon emissions, logistics (kg of CO2e) 3.66

Carbon emissions, energy usage (kg of CO2e) 114.741

Carbon emissions, end-of-life (kg of CO2e) 1.28

Total carbon emissions, w/o use phase (kg of CO2e) 68.259

PAIA version GaBi version 1, 2024

Display

Display included No
