ATEN 2A-143G network transceiver module
2A-143G - 4710469341724
ATEN 1G Ethernet Copper SFP Module
- Brand
- Synology
- Product code
- 2A-143G
- SKU
- VASNIE76TLD2K
- EAN/GTIN
- 4710469341724
- 1GbE connectivity up to 100 meters over Cat 5e/6/6a (UTP) cable
- IEEE 802.3ab compliant
- Network redundancy
- Low power consumption
Product Info
1Gb Ethernet Copper SFP Transceiver
ATEN 1G Ethernet Copper SFP Module. SFP transceiver type: Copper, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Product colour: Metallic. Width: 12 mm, Depth: 68.5 mm, Height: 13.8 mm. Country of origin: Taiwan

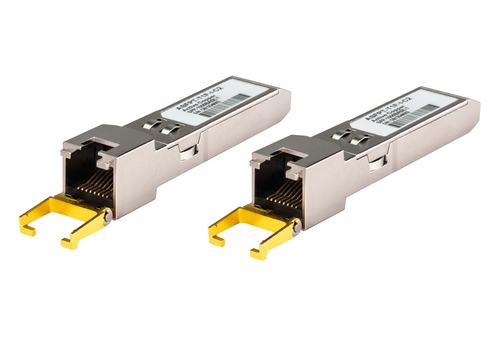

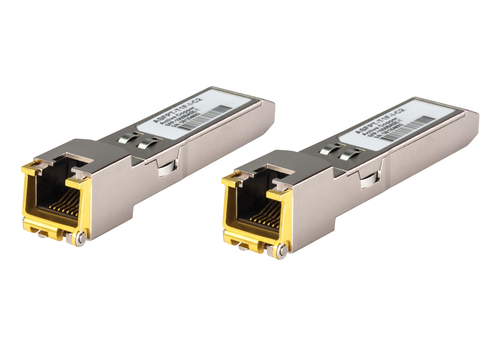

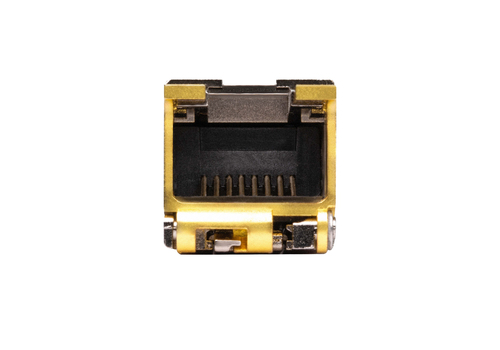

The 2A-143G 1Gb Ethernet Copper SFP Transceiver is designed for 1 Gigabit Ethernet environments, enabling standard Cat 5e/6/6a UTP copper cable connections through a network switch’s SFP port. Supporting transmission distances of up to 100 meters, the 2A-143G features a hot-pluggable form factor with a standard RJ-45 interface for flexible deployment in copper-based infrastructures. Compliant with IEEE 802.3ab specifications, it is a cost-effective, high-performance solution for extending Ethernet connectivity in environments where fiber is unavailable or unnecessary. It’s ideal for office environments or IT deployments that rely on existing copper infrastructure.
| Performance | |
|---|---|
| SFP transceiver type | Copper |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Maximum transfer distance | 100 m |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3ab |
| Copper ethernet cabling technology | 1GBASE |
| Features | |
| Product colour | Metallic |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -45 - 90 °C |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 68.5 mm |
| Height | 13.8 mm |
| Weight | 20 g |
| Logistics data | |
| Customs product code (TARIC) | 90309000 |
| Country of origin | Taiwan |
