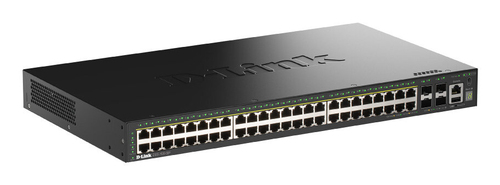

D-Link DGS-1530-52P/B network switch

DGS-1530-52P/B - 0790069474514

D-Link 52-Port Gigabit Stackable PoE+ Smart Managed Switch with 4 x 10G SFP+ Ports

Brand: D-Link
Product code: DGS-1530-52P/B
SKU: 7XTXAL8MACW90
EAN/GTIN: 0790069474514

Managed L2 Web-based management
Quality of Service (QoS) support Configuring Location Settings (CLI)
Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45
10G support
MAC address table: 16000 entries Switching capacity: 176 Gbit/s
Access Control List (ACL)
Rack mounting Stackable
AC Power supply included Power over Ethernet (PoE)

€1912.99 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

48 x 10/100/1000 Mbps PoE, 4 x 10G SFP+, 176 Gbps, 130.95 Mpps, 440 x 308 x 44 mm, 4.35 kg

D-Link 52-Port Gigabit Stackable PoE+ Smart Managed Switch with 4 x 10G SFP+ Ports. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting

The DGS-1530 Series are part of the Layer 2 family of D-Link’s Stackable Smart Switch product line that provides wired Gigabit speeds for Metro Ethernet and campus networks. They feature a variety of ports, including 10/100/1000BASE-T RJ-45 ports, 1G SFP ports, and 10G SFP+ ports for increased network bandwidth. Surge protection, advanced Layer 2 functions, and a suite of security and management tools make the DGS-1530 Series Stackable Smart Switch ideal for Metro Ethernet and campus applications.

Product Highlights

Comprehensive Security Solution Support for Access Control Lists (ACLs), multiple user authentication methods, and IP-MAC-Port Binding ensures a secure network environment

Superior Reliability
Per-port surge protection, Ethernet Ring Protection Switching (ERPS), and redundant power supply (RPS) features all help to maximize service availability

Scalability and High Availability
Physical stacking provides agile expansion and redundancy while reliability through fault tolerant topologies ensures rock-solid connectivity

Specifications

Management features

Switch type Managed

Switch layer L2

Quality of Service (QoS) support Yes

Web-based management Yes

Traffic classification Yes

ARP inspection Yes

Configuring Location Settings (CLI) Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 48

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

SFP+ module slots quantity 4

USB Type-A ports quantity 1

Console port RJ-45

USB 2.0 ports quantity 1

Network

Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x

10G support Yes

Port mirroring Yes

Full duplex Yes

Policy-based routing Yes

Flow control support Yes

Link aggregation Yes

Broadcast storm control Yes

Auto MDI/MDI-X Yes

Spanning tree protocol Yes

Ethernet LAN data rates 10,1000,100 Mbit/s

Auto-negotiation Yes

VLAN support Yes

Number of VLANs 4096

Data transmission

Switching capacity 176 Gbit/s

Forwarding rate 130.95 Mpps

MAC address table 16000 entries

Store-and-forward Yes

Jumbo frames support Yes

Packet buffer memory 1.5 MB

Security

Access Control List (ACL) Yes

Access Control List (ACL) egress 1000

Access Control List (ACL) ingress 2000

IGMP snooping Yes

Security algorithms SNMP, SNMPv2, SNMPv3

MAC address filtering Yes

SSH/SSL support Yes

Loop protection Yes

Password protection Yes

Authentication type RADIUS, TACACS+

Multicast features

Multicast support Yes

Design

Rack mounting Yes

Stackable Yes

Product colour Black

LED indicators Yes

Number of fans 3 fan(s)

Performance

Noise level 52.7 dB

Mean time between failures (MTBF) 230300 h

Power

Power source AC

Power supply included Yes

AC input voltage 100 - 240 V

AC input frequency 50/60 Hz

Power consumption (max) 482 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes

Power over Ethernet plus (PoE+) ports quantity 48

Total Power over Ethernet (PoE) budget 370 W

Operational conditions

Operating temperature (T-T) -5 - 50 °C

Storage temperature (T-T) -20 - 70 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Heat dissipation 1643.62 BTU/h

Weight & dimensions

Width 440 mm

Depth 250 mm

Height 44 mm

Weight 4.35 kg
