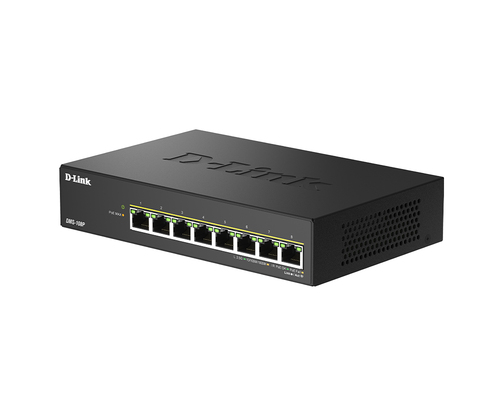

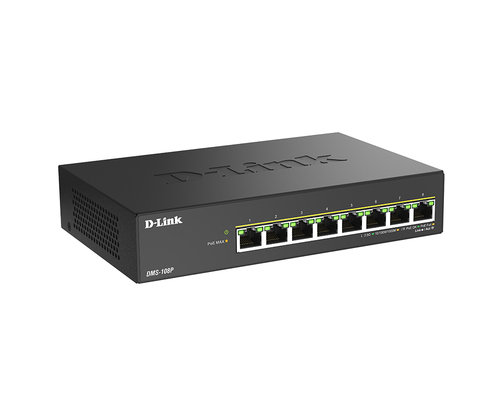

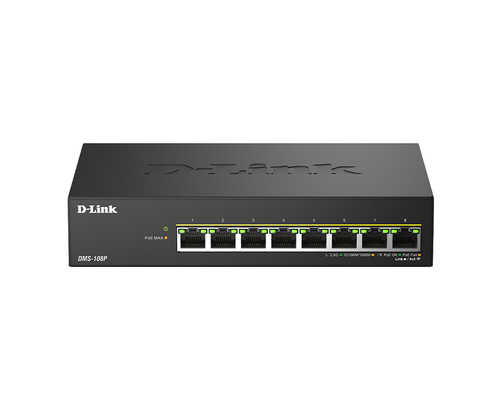

D-Link DMS-108P/B network switch

D-Link 8-Port 2.5G Multi-Gigabit PoE++ Unmanaged Switch


Brand
D-Link
Product code
DMS-108P/B
SKU
2KQ1M1OOOWXKN
  • 8-port 2.5GE connectivity for high performance networking
  • IEEE 802.3af/at/bt PoE (up to 90W/port), 230W power budget
  • Plug and Play simplicity for easy installation
  • Fanless design for enhanced reliability and silent performance
  • Durable metal housing enhances product durability
  • IGMP snooping for optimized bandwidth utilization
  • Auto MDI/MDI-X crossover on all ports simplifies setup
  • IEEE 802.3x flow control prevents packet loss
  • Quality of Service (QoS) ensures uninterrupted connectivity
  • IEEE 802.3az reduces power consumption and operating cost
€163.04 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

Plug & Play
No complex configurations required for fast and easy network connectivity

Multi-Gigabit​
Multi-Gigabit ports for high data rate transmission

High Power Budget
230W PoE total budget to power more devices

IEEE802.3bt
Up to 90W per port enables high-power devices (PD)

Multicast Optimization
IGMP snooping feature prevents network flooding

Silent Operation
Fanless design for a noise-free working environment

Unleash Wi-Fi 6 via 2.5G Ports
As Wi-Fi 6 (802.11ax) delivers ultra-fast speeds and low latency, standard Gigabit Ethernet can become a bottleneck. 2.5G Ethernet offers 2.5x the bandwidth without new cabling, unlocking the full potential of Wi-Fi 6 for smoother 4K/8K streaming, HD surveillance, AR/VR gaming, data transfer, and data-intensive environments. Future-proof your network and experience Wi-Fi 6 at its best—fast, reliable, and unrestricted.

Small Size, Big Power
The DMS-108P with IEEE 802.3bt (PoE++) delivers up to 90W per port with a 230W total power budget, enabling high-performance devices without additional power supplies. Ideal for Wi-Fi 6 access points, PTZ cameras, kiosks, smart LED lighting systems, and much more. PoE++ simplifies installation, reduces cabling costs, and enhances energy efficiency.

Smarter Multicast, Smoother Performance
The DMS-108P enables IGMP Snooping to enhance network efficiency by intelligently managing multicast traffic, ensuring data reaches only the devices that need it. This reduces bandwidth congestion, improves video streaming and VoIP performance, and optimizes IPTV, surveillance, and enterprise networks.

Prioritize Traffic for Optimized Performance
With the DMS-108P, you can effortlessly manage your network traffic with the 802.1p Quality of Service (QoS) feature. The switch automatically organizes and prioritizes time-sensitive and critical data for efficient delivery, enabling buffer-free video streaming as well as jitter-free video and voice calls.

Management features
Switch type Unmanaged
Quality of Service (QoS) support Yes
Traffic classification Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
Power connector DC-in jack
Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support No
Auto MDI/MDI-X Yes
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Data transmission
Switching capacity 40 Gbit/s
Forwarding rate 29.76 Mpps
MAC address table 4000 entries
Store-and-forward Yes
Design
Stackable Yes
Product colour Black
LED indicators Yes
Performance
Mean time between failures (MTBF) 140688261 h
Power
Power source DC
Power supply included Yes
DC input voltage 54 V
Input current 4.62 A
Power consumption (max) 261.02 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 8
Power over Ethernet (PoE) power per port 90 W
Total Power over Ethernet (PoE) budget 290 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 890.6 BTU/h
Weight & dimensions
Width 190 mm
Depth 120 mm
Height 38 mm
Weight 753 g
Certificates
Certification CB; UL; LVD; FCC; VCCI; IC; BSMI
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
