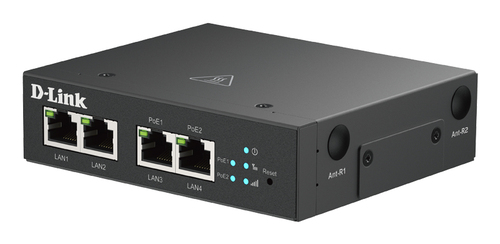

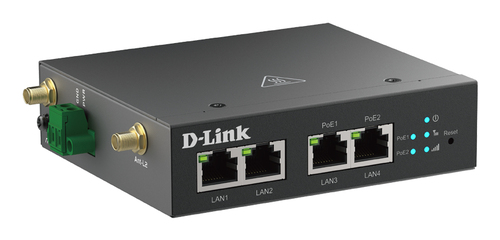

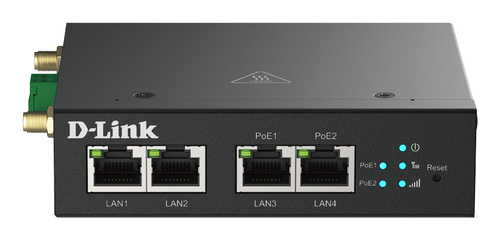

D-Link 4G LTE M2M VPN PoE+ Router
- Brand
- D-Link
- Product code
- DWM-314-TP/B
- SKU
- EM9GFB8QUWD1S
- 4G LTE speeds of up to 150 Mbps for fast Internet access and data transfer
- 2 x 10/100 Fast Ethernet LAN ports for reliable wired connectivity
- 2 x 10/100 Fast Ethernet PoE LAN ports for PoE-enabled connectivity
- 1 x SIM slot for plug-and-play WAN connectivity
- No set up required, simply plug it in and your network is ready to go
- Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- Wall or DIN-rail mounting allow for optimal device placement
Product Info
Enhance Passenger Experience with Reliable 4G Connectivity
The DWM-314-TP 4G Multi-Connect PoE modem is designed for real-time communication and acts as a power source to offer public Wi-Fi connection, ensure public transport security through surveillance camera and display navigation-friendly information by showing real time bus arrivals or ads on the digital signage. This plug-and-play design ensures hassle-free installations for the bus shelters and improves urban mobility, by giving commuters more accessible and useful information to help optimize their journeys.
Empower Your M2M Network with PoE+
The DWM PoE Modem Series, featuring a built-in 4-port Gigabit switch and 802.3af/at Power over Ethernet (PoE+) technology, delivers both data and power through Ethernet cables. As a true PSE (Power Sourcing Equipment) solution, it streamlines M2M communication for IoT applications, reducing the need for separate electrical infrastructure and lowering installation costs of extra PoE switch. Ideal for powering surveillance cameras, digital signage, wireless access points, and IoT sensors, it offers flexible device placement without extra wiring. Its PD-Alive feature minimizes downtime, ensuring continuous operation, while PoE scheduling optimizes power use and cuts energy costs.
Robust Build Quality
The industrial-grade casing provides reliable high-speed connectivity in extreme conditions. The corrosion-resistant zinc-plated steel case with wide operating temperature range and humidity tolerance mean that the DWM-314-TP is ready for the most demanding M2M applications in virtually any environment. Convenient wall and DIN-rail mounting options allow the DWM-314-TP to be mounted virtually anywhere to optimize signal quality.
The DWM-314-TP is also engineered to safely accept wide input voltage(VDC 48~57V) fluctuations, providing more flexibility and convenience when selecting a suitable power source, making your M2M installations significantly more reliable and much easier to deploy.
| Modem | |
|---|---|
| Interface | 2x RJ45, 2x RJ45 PoE |
| Antenna type | External |
| Performance | |
| Networking standards | IEEE 802.3at |
| Features | |
| Product colour | Black |
| LED indicators | Yes |
| Power LED | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| Power | |
| DC input voltage | 48 - 57 V |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Depth | 115 mm |
| Height | 99 mm |
| Width | 31 mm |
