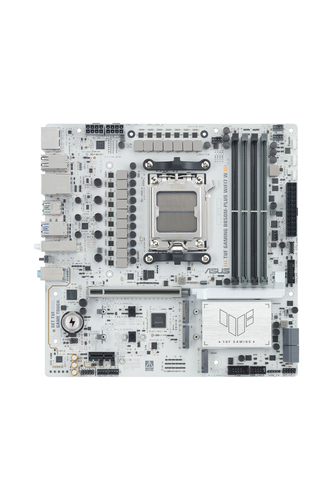

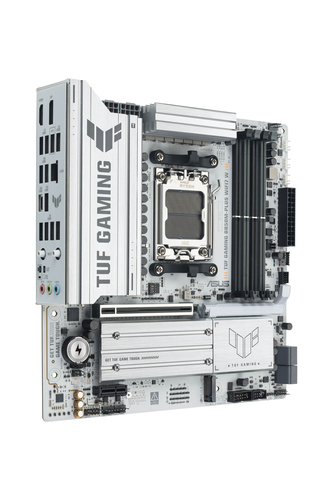

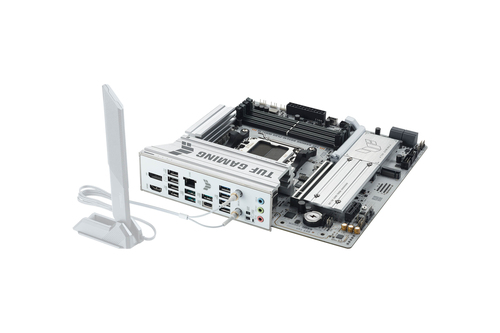

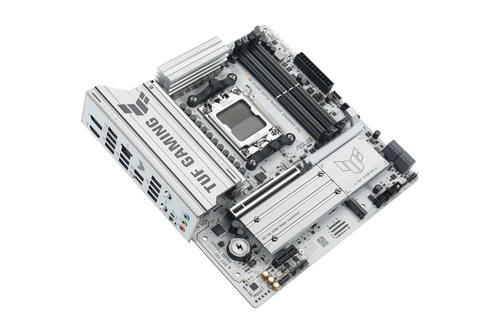

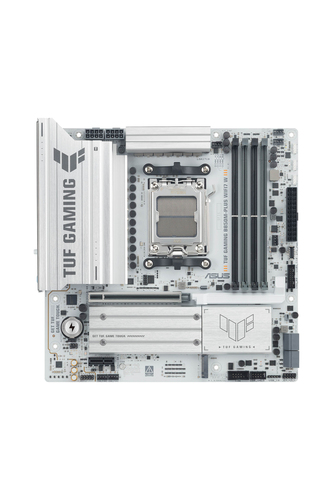

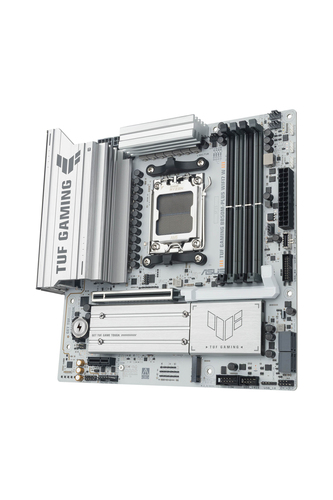

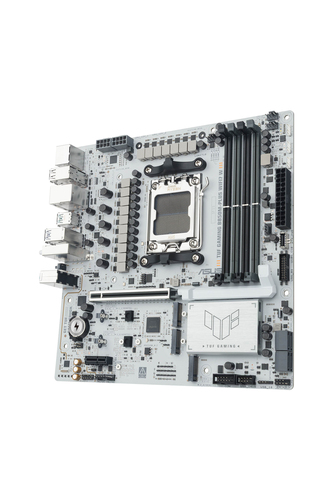

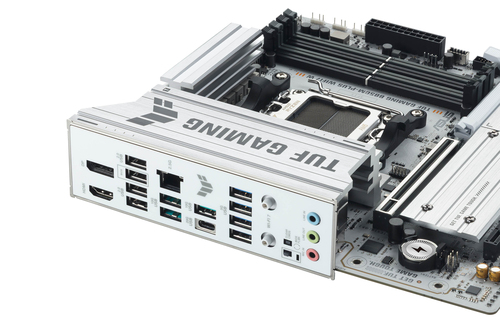

ASUS TUF GAMING B850M-PLUS WIFI7 W

90MB1MD0-M0EAY0 - 4711636167451

ASUS TUF GAMING B850M-PLUS WIFI7 W AMD B850 Socket AM5 micro ATX

Brand: Asus
Product code: 90MB1MD0-M0EAY0
SKU: N49CK3GV5JMI7
EAN/GTIN: 4711636167451

AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PC micro ATX AMD B850 Realtek ALC1220P 7.1 channels
DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
BIOS type: UEFI AMI 256 Mbit
2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

€236.59 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

AMD Socket AM5, AMD B850 Chipset, 4 x DIMM slots, max. 256GB, DDR5

ASUS TUF GAMING B850M-PLUS WIFI7 W. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

TUF GAMING
B850M-PLUS WIFI7 W
ASUS TUF GAMING B850M-PLUS WIFI7 W takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Specifications

Processor

Processor manufacturer AMD

Processor socket Socket AM5

Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets Socket AM5

Memory

Supported memory types DDR5-SDRAM

Number of memory slots 4

Memory slots type DIMM

Memory channels Dual-channel

ECC сompatibility ECC & Non-ECC

Maximum internal memory 256 GB

Unbuffered memory Yes

Storage controllers

Supported storage drive types HDD & SSD

Supported storage drive interfaces M.2, SATA III

Number of HDDs supported 4

Number of storage drives supported 7

RAID support Yes

RAID levels 0, 1, 5, 10

Graphics

Parallel processing technology support Not supported

Internal I/O

USB 2.0 connectors 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors 1

Number of SATA III connectors 4

Front panel audio connector Yes

Front panel connector Yes

ATX Power connector (24-pin) Yes

CPU fan connector Yes

Number of chassis fan connectors 3

Chassis intrusion connector Yes

EPS power connector (8-pin) Yes

Number of COM connectors 1

12V power connector Yes

RGB LED pin header Yes

Number of RGB LED pin headers 3

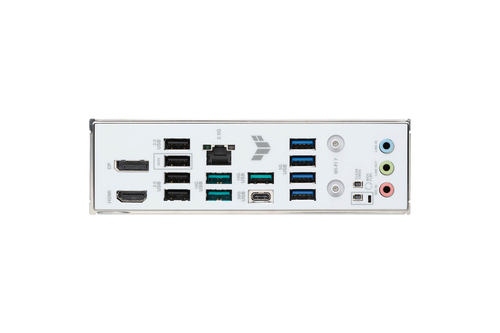

Rear panel I/O ports

USB 2.0 ports quantity 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3

USB 3.2 Gen 2x2 Type-C ports quantity 1

Ethernet LAN (RJ-45) ports 1

HDMI ports quantity 1

DisplayPorts quantity 1

WiFi-AP antenna jack 1

Network

Ethernet LAN Yes

Ethernet interface type 2.5 Gigabit Ethernet

Wi-Fi Yes

Top Wi-Fi standard Wi-Fi 7 (802.11be)

Wi-Fi standards Wi-Fi 7 (802.11be)

WLAN controller model MediaTek MT7925

Bluetooth Yes

Bluetooth version 5.4

Features

Motherboard chipset AMD B850

Audio chip Realtek ALC1220P

Audio output channels 7.1 channels

Product colour White

Component for PC

Motherboard form factor micro ATX

Motherboard chipset family AMD

Windows operating systems supported Windows 11

Expansion slots

PCI Express x1 (Gen 4.x) slots 1

PCI Express x16 (Gen 4.x) slots 1

PCI Express x16 (Gen 5.x) slots 1

Number of M.2 (M) slots 3

1st M.2 largest key size 2280

1st M.2 highest PCI Express generation 5.0

2nd M.2 largest key size 2280

2nd M.2 highest PCI Express generation 4.0

3rd M.2 largest key size 2280

3rd M.2 highest PCI Express generation 4.0

BIOS

BIOS type UEFI AMI

BIOS memory size 256 Mbit

Packaging data

Package width 275 mm

Package depth 275 mm

Package height 67.5 mm

Package weight 1.65 kg

Weight & dimensions

Width 244 mm

Depth 244 mm

Packaging content

Cables included SATA

Antenna included Yes

Screws included Yes
