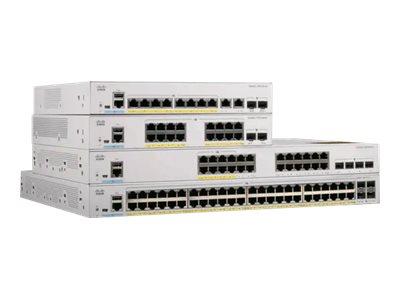

Cisco Catalyst 1000-24T-4G-L - Switch - Managed - 24 x 10/100/1000 + 4 x Gigabit SFP (uplink) - rack-mountable - remanufactured
- Brand
- Hewlett Packard Enterprise
- Product code
- C1000-24T-4G-L-RF
- SKU
- 3LZ2WXTCMKEUV
- EAN/GTIN
- 889728460231
- Switch
- Managed
- 24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
- rack-mountable
- remanufactured
- Weight: 4.18 KG
Product Info
Cisco Catalyst 1000 Series switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco Catalyst 1000 switches operate on Cisco IOS software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for Small and Medium Sized (SMB) organizations.
Description
Robust security
Equipped with Kerberos, RADIUS, Secure Shell (SSH), SSH2, and TACACS+ authentication methods, this switch ensures secure network access and management, safeguarding against unauthorized access and threats.
Efficient data processing
With a forwarding bandwidth of 28 Gbps and a switching bandwidth of 56 Gbps, alongside a forwarding rate of 41. 67 Mpps for 64-byte L3 packets, the Cisco Catalyst 1000-24T-4G-L delivers efficient and reliable data processing and transmission.
Versatile connectivity
Featuring 24 1000Base-T ports along with 4 1000Base-X SFP uplink ports, this switch offers versatile connectivity options for a wide range of network configurations and requirements.
Advanced networking features
Supports a comprehensive suite of networking features including 802. 1x authentication, Access Control List (ACL) support, Quality of Service (QoS), and Energy Efficient Ethernet, enabling sophisticated network management and optimization.
Durable and reliable
Designed for longevity with an MTBF of over 2 million hours and compliance with numerous safety and environmental standards, ensuring dependable operation in diverse conditions.
| General | |
|---|---|
| Flash Memory | 256 MB |
| RAM | 512 MB |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Status Indicators | Status |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Device Type | Switch - 24 ports - Managed |
| Jumbo Frame Support | 10240 bytes |
| Ports | 24 x 10/100/1000 + 4 x Gigabit SFP (uplink) |
| Processor | X ARM: 800 MHz |
| Capacity | Unicast MAC addresses: 15360IPv4 unicast direct routes: 542IPv4 unicast indirect routes: 256IPv6 unicast direct routes: 414IPv6 unicast indirect routes: 128IPv4 routes (static): 16IPv6 routes (static): 16IPv4 routes (Multicast): 1024IPv6 groups (Multicast): 1024IPv4/MAC security ACEs: 600IPv6 security ACEs: 600Active VLANs: 256VLAN IDs: 4094STP instances: 64SPAN sessions: 4MTU-L3 packet: 9198 byte |
| Routing Protocol | IGMP, MLDv2, MLD, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
| Performance | Forwarding bandwidth: 28 GbpsSwitching bandwidth: 56 GbpsForwarding rate (64‑byte L3 packets): 41.67 Mpps |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX |
| Features | BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), IDS, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, DTP support, PAgP support, ACL support, QoS, UDLD, Rapid PVST+, fanless, SRR, LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, MIB, CoS, 802.1x authentication, DSCP support, IGMP filtering, IP source guard, WTD, SmartPort technology, VTP, STRG, AAA, UDP, proxy ARP, SPAN, loopback detection, MAB, BPDU Guard, NEAT |
| Expansion / Connectivity | |
| Interfaces | 24 x 1000Base-T RJ-454 x 1000Base-X SFP uplink1 x management RJ-451 x mini-USB Type B1 x USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business dayTechnical support - consulting - 90 days |
| Miscellaneous | |
| Pricing Type | Remanufactured |
| MTBF | 2,026,793 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A |
| Power | |
| Installed Qty | 1 |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Humidity Range Storage | 5 - 95% |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -25 °C |
| Dimensions & Weight | |
| Depth | 24 cm |
| Width | 44.5 cm |
| Weight | 2.63 kg |
| Height | 4.39 cm |
