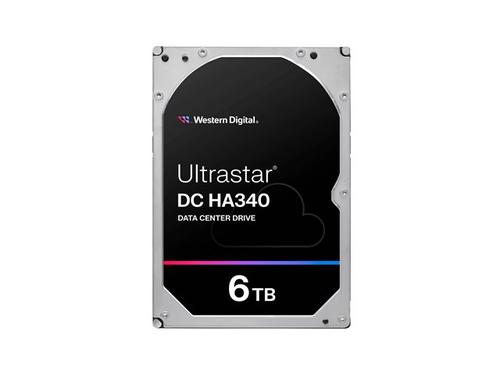

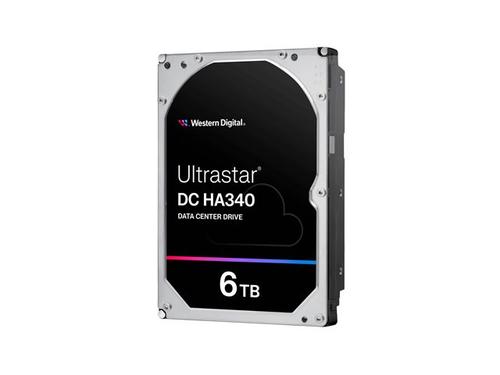

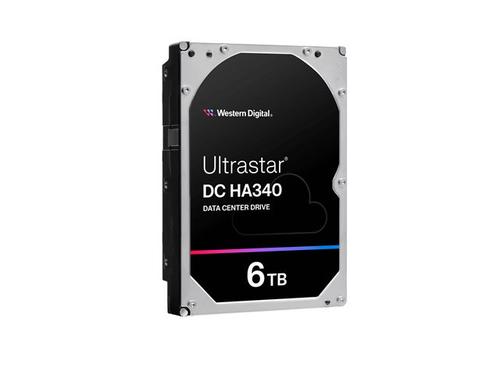

WD Ultrastar DC HA340 WUS721206BLE6L4 - Hard drive - Data Centre - 6 TB - internal - 3.5" - SATA 6Gb/s - 7200 rpm - buffer: 256 MB
- Brand
- Western Digital
- Product code
- 0B47077
- SKU
- 012I85WLJCJWR
- EAN/GTIN
- 829686008915
- Hard drive
- Data Centre
- 6 TB
- internal
- 3.5"
- SATA 6Gb/s
- 7200 rpm
- buffer: 256 MB
- Weight: 0.68 KG
Product Info
The WD Ultrastar DC HA340 is a high-capacity, internal hard drive designed to meet the rigorous demands of data center environments. Engineered for continuous operation, it boasts a mean time between failures (MTBF) of 2,000,000 hours, ensuring reliability and performance. With a 6 TB storage capacity and utilizing Conventional Magnetic Recording (CMR) technology, this hard drive is capable of handling large-scale data storage requirements. It features a 256 MB buffer size and supports a data transfer rate of 600 MBps, making data management both efficient and effective. Features such as Dual Stage Actuator (DSA), Rotational Vibration (RV) compensation technology, and support for advanced format 512e, further enhance its reliability and storage capacity. Whether for NAS systems, RAID arrays, or direct data center integration, the WD Ultrastar DC HA340 is engineered to deliver dependable storage solutions.
Description
Reliable performance
Designed for continuous operation, the WD Ultrastar DC HA340 ensures dependable performance with a MTBF of 2,000,000 hours. Its features like Dual Stage Actuator (DSA) and Rotational Vibration (RV) compensation technology provide stability and reliability in demanding data center environments.
High-capacity storage
With a generous 6 TB capacity, this internal hard drive meets the growing demands for storage space in data centers. The use of Conventional Magnetic Recording (CMR) technology allows for efficient data storage, making it a suitable solution for large-scale data storage needs.
Efficient data management
Featuring a 256 MB buffer size and a data transfer rate of 600 MBps, the WD Ultrastar DC HA340 optimizes data processing speeds. Its support for advanced format 512e enhances drive capacity and error correction capabilities, ensuring data integrity and efficient storage management.
| General | |
|---|---|
| Buffer Size | 256 MB |
| Form Factor | 3.5" |
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 715 g |
| Capacity | 6 TB |
| Device Type | Hard drive - internal |
| Interface | SATA 6Gb/s |
| Features | Advanced format 512e, non-volatile cache, Dual Stage Actuator (DSA), Rotational Vibration (RV) compensation technology, Conventional magnetic recording (CMR), 24x7 continuous operation, NAS compatible, RAID ready |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Power | |
| Power Consumption | 7 Watt (operating)5.8 Watt (idle) |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 5 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 70 g @ 2 ms |
| Shock Tolerance (non-operating) | 300 g @ 2 ms |
| Vibration Tolerance (operating) | 0.67 g @ 5-500 Hz |
| Vibration Tolerance (non-operating) | 1.04 g @ 2-200 Hz |
| Performance | |
| Average Latency | 4.16 ms |
| Spindle Speed | 7200 rpm |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 267 MBps |
| Drive Class | Data Centre |
| Reliability | |
| Non-Recoverable Errors | 1 per 10^15 |
| 24x7 Operation | Yes |
| Load / Unload Cycles | 600,000 |
| MTBF | 2,000,000 hours |
| Software & System Requirements | |
| OS Required | Linux, Microsoft Windows, Microsoft Windows Server |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SATA 6 Gb/s |
