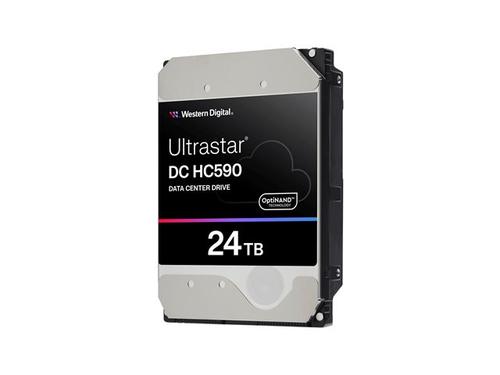

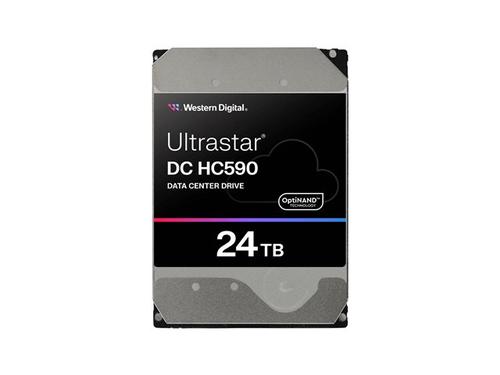

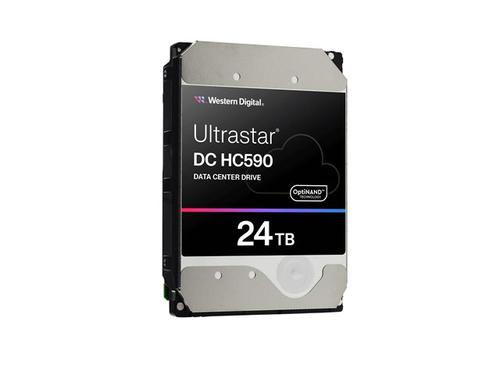

WD Ultrastar DC HC590 0F65642 - Hard drive - Data Centre - 24 TB - internal - 3.5" - SATA 6Gb/s - 7200 rpm - buffer: 512 MB
- Brand
- Western Digital
- Product code
- 0F65684
- SKU
- SMY0NK414SVUE
- EAN/GTIN
- 829686009042
- HDD
- Centro dati
- crittografato
- 24 TB
- interno
- 3.5"
- SATA 6Gb/s
- 7200 rpm
- buffer: 512 MB
- Self-Encrypting Drive (SED)
- Weight: 0.66 KG
Product Info
The WD Ultrastar DC HC590 is designed for data centers requiring high capacity and reliability. With a storage capacity of 24 TB, this internal hard drive delivers performance and efficiency. It operates with an average latency of 4.16 ms and a data transfer rate of 600 MBps, ensuring quick access to critical data. Features such as Rotational Vibration Safeguard (RVS) and HelioSeal technology enhance durability and reliability under varying conditions. Built for 24x7 operation, the WD Ultrastar DC HC590 supports dynamic fly height technology, optimizing read/write performance. It is equipped with Energy-Assisted Magnetic Recording (EAMR) and ArmorCache Technology for added data protection and performance efficiency. Designed to withstand challenging environments, it operates within a temperature range of 5°C to 60°C and can handle non-operating temperatures as low as -40°C and as high as 70°C. This hard drive meets demanding data center needs with a mean time between failures (MTBF) of 2,500,000 hours, making it a choice for critical storage applications.
Description
Robust performance
With a spindle speed of 7200 rpm and an internal data rate of 287 MBps, this hard drive provides fast data access suitable for demanding applications.
Enhanced reliability
Equipped with features like non-recoverable errors at 1 per 10^15 and an MTBF of 2,500,000 hours, this drive ensures data integrity over long-term use.
Energy efficient
The WD Ultrastar DC HC590 operates with a power consumption of only 5. 6 watts in idle mode, helping to reduce overall energy costs.
Advanced data protection
Self-encrypting capabilities and ArmorCache Technology safeguard sensitive information, making this hard drive a secure choice for data centers.
Shock and vibration resistant
Designed to withstand high levels of shock and vibration, this hard drive operates reliably even in challenging environmental conditions.
| General | |
|---|---|
| Buffer Size | 512 MB |
| Form Factor | 3.5" |
| Hardware Encryption | Yes |
| Weight | 670 g |
| Width | 101.6 mm |
| Height | 26.1 mm |
| Capacity | 24 TB |
| Device Type | Hard drive - internal |
| Interface | SATA 6Gb/s |
| Depth | 146.7 mm |
| Features | HelioSeal, advanced format 512e, advanced format 4Kn, OptiNAND technology, ArmorCache Technology, 24x7 availability, Energy-Assisted Magnetic Recording (EAMR), Rotational Vibration Safeguard (RVS), Dynamic fly height technology, Conventional magnetic recording (CMR), self-encrypting |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Power | |
| Power Consumption | 8.4 Watt (random read/write)5.6 Watt (idle) |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 5 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 40 g @ 2 ms half-sine wave |
| Vibration Tolerance (operating) | 0.7 gRMS @ 5-500 Hz |
| Vibration Tolerance (non-operating) | 1.04 gRMS @ 2-200 Hz |
| Shock Tolerance (non-operating) | 200 g @ half-sine wave |
| Performance | |
| Average Latency | 4.16 ms |
| Spindle Speed | 7200 rpm |
| Drive Transfer Rate | 600 MBps (external) |
| Drive Class | Data Centre |
| Internal Data Rate | 287 MBps |
| Reliability | |
| Non-Recoverable Errors | 1 per 10^15 |
| 24x7 Operation | Yes |
| Load / Unload Cycles | 600,000 |
| MTBF | 2,500,000 hours |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SAS 12 Gb/s |
