BenQ RE8604 86" Display
- Brand
- BenQ
- Product code
- 9H.F9GTK.DE6
- SKU
- 3UBE440GWNMIL

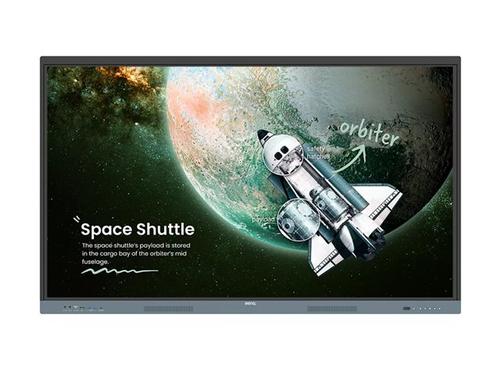

- 86" Diagonal Class RE04 Series LED-backlit LCD display
- education
- with touchscreen (multi touch)
- Android
- 4K UHD (2160p) 3840 x 2160
- direct-lit LED
- Weight: 80.15 KG
Product Info
The BenQ Board Essential RE8604 is designed to enhance collaboration in educational settings. With an 86-inch LED-backlit LCD flat panel display, it presents visuals in 4K UHD resolution, ensuring every detail is clear and impactful. Its 178-degree viewing angle and 450 cd/m² brightness allow for visibility in various lighting conditions, making it suitable for classrooms of all sizes.
Equipped with features like infrared touch technology and precision touch, the display supports up to 40 touchpoints, enabling intuitive interaction among users. The built-in speaker system delivers a total output power of 40 watts, providing clear audio to complement the visual experience. With multiple connection options, including HDMI and USB-C ports, the RE8604 allows for seamless integration with different devices and applications, enhancing functionality for presentations and discussions.
Description
Display quality
The 86-inch LED-backlit LCD flat panel features a 3840 x 2160 resolution and a contrast ratio of 1200:1, delivering vibrant colors and deep blacks for a captivating viewing experience.
Audio performance
Two built-in speakers provide a total output power of 40 watts, ensuring that all audio from presentations and videos is delivered clearly and effectively.
Connectivity options
Multiple ports including HDMI, USB-C, and VGA allow for easy connection to various devices, integrating with existing classroom technology.
Compliance and certifications
Complies with ENERGY STAR standards and features TÜV safety certification, ensuring efficient and safe operation in educational environments.
Interactive features
Equipped with applications such as InstaShare 2 and Google Play, providing users access to various tools to enhance collaboration and learning.
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
| Power | |
| Power Device | Power supply |
| Power Consumption Stand by | 0.5 Watt |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Media Player | |
| USB Ports Qty | 6 |
| USB Port | Yes |
| Supported Memory Cards | microSD |
| Configuration | ARM Cortex-A73 Quad-Core + ARM Cortex-A53 Quad-Core - 8 GB - 64 GB - Mali G52 MP8 |
| Audio System | |
| Output Power / Total | 40 Watt |
| Speaker System | 2 speakers |
| Speakers | 2 x main channel speaker - 20 Watt |
| Display | |
| Touchpoints Qty | 40 |
| Backlight Life | 50,000 hour(s) |
| Response Time | 8 ms |
| Image Aspect Ratio | 16:9 |
| Image Contrast Ratio | 1200:1 |
| Viewing Angle | 178 degrees |
| LCD Display Technology | IPS |
| Dynamic Contrast Ratio | 30000:1 |
| Resolution | 3840 x 2160 |
| LCD Backlight Technology | Direct-lit LED |
| Display Format | 4K UHD (2160p) |
| Brightness | 450 cd/m² |
| Coating | Anti-glare, 9H Hard |
| Operation Hours / Days | 18 / 7 |
| Commercial Features | OPS Slot |
| Features | 10-bit support, precision touch technology, infrared touch technology, Device Management Solution (DMS), Account Management System (AMS), Flicker free technology, Low Blue Light Technology, text-to-speech function |
| Network & Internet Multimedia | |
| LAN Protocol | Gigabit Ethernet |
| Functionality | Whiteboard |
| Connectivity | LAN |
| Application Store | Google Play |
| Connect & Share | InstaShare 2 |
| Dimensions & Weight (Shipping) | |
| Height (Shipping) | 18.5 cm |
| Depth (Shipping) | 126.5 cm |
| Weight (Shipping) | 80.2 kg |
| Width (Shipping) | 209.5 cm |
| Stands & Mounts | |
| Wall Mount Included | Yes |
| VESA Compatibility | Yes |

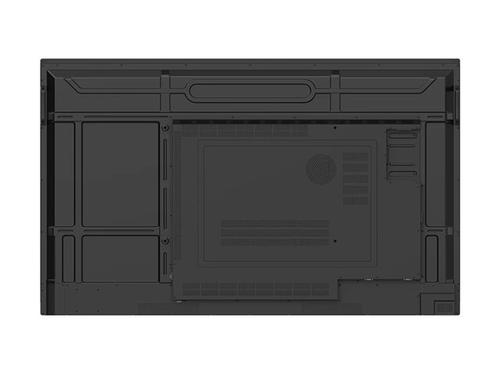

| Flat Panel Mount Interface | 800 x 600 mm |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| Remote Control | |
| Type | Remote control |
| General | |
| TV Tuner Presence | No |
| HDMI Ports Qty | 3 ports |
| Weight | 63.4 kg |
| Video Interface | HDMI |
| TV Tuner | No tuner |
| Platform | Android |
| PC Interface | VGA (HD-15), DisplayPort |
| Product Type | LED-backlit LCD flat panel display |
| Depth | 8.77 cm |
| Protection | Dust-resistant |
| Modes | Landscape mode |
| Diagonal Class | 86" |
| Combined With | Touchscreen (multi touch) |
| Picture Enhancements | 68% Colour Gamut NTSC |
| Sensors | Ambient light sensor (ALS), Infrared (IR) |
| Operating System | Android OS 13 |
| Commercial Use | Yes - education |
| Series | RE04 Series |
| Power Consumption Operational | 106.8 Watt |
| Width | 196.18 cm |
| Height | 117.97 cm |
| Miscellaneous | |
| Included Accessories | 2 styluses |
| Cables Included | VGA cable - 3 mHDMI cable - 3 mUSB touch cable - 3 mUSB-C cable - 1.5 m |
| Compliant Standards | Google EDLA, TÜV safety certification, IEC 60529 IP5X |
| Connections | |

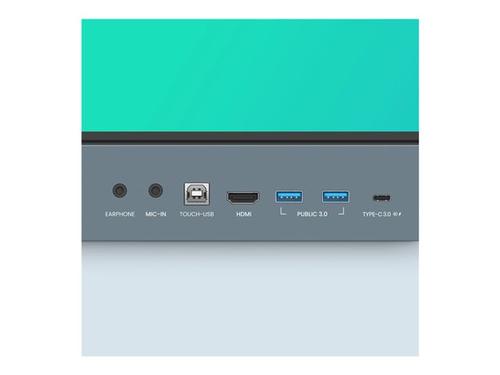

| Connector Type | VGA input3 x HDMI inputHDMI outputDisplayPort2 x USB 2.02 x USB 3.0USB-C 2.0USB-C 3.0 with 65W Power DeliveryTouchAudio line-inEarphonesSPDIF outputGigabit LANMicrophoneRS-232 |
