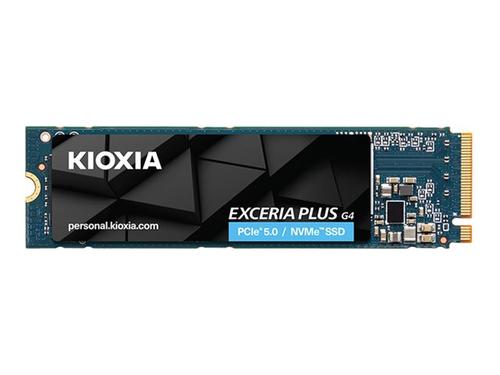

KIOXIA EXCERIA PLUS G4 NVMe M.2 2280 1TB
- Brand
- Kioxia
- Product code
- LVD10Z001TG8
- SKU
- VDAYRQ7ZWGLDP
- EAN/GTIN
- 4582563859975
- SSD
- 1 TB
- internal
- M.2 2280
- PCI Express 5.0 x4 (NVMe)
- Weight: 0.04 KG
Product Info
The KIOXIA Exceria Plus G4 Series 1 TB internal hard drive is designed to deliver performance and reliability. With an internal data rate of 10,000 MBps and write speeds reaching 7,900 MBps, this SSD is suitable for users requiring high-speed data access and storage. Its M.2 2280 form factor and PCI Express 5.0 x4 (NVMe) interface ensure rapid read and write capabilities, making it suitable for applications such as gaming, video editing, and data-intensive tasks.
Equipped with 3D BiCS Flash technology and an endurance rating of 600 TB, this SSD offers long-lasting performance and efficiency. Supporting features such as TRIM and Idle Time Garbage Collection, it optimizes storage management, enhancing speed and reducing wear over time. With a shock tolerance rating of up to 1,000 g and operating temperature range from 0°C to 85°C, the KIOXIA Exceria Plus G4 Series is built to endure various environmental conditions, ensuring data safety and performance stability.
Description
High-capacity storage
With a capacity of 1 TB, this solid state drive provides plenty of space for storing important files, applications, and multimedia content.
Data transfer speeds
The drive achieves internal data rates of up to 10,000 MBps, streamlining data access and reducing wait times.
Advanced 3D BiCS Flash technology
This technology enhances performance and endurance, ensuring that the SSD remains reliable under heavy workloads.
Robust durability
The SSD can withstand shock acceleration of up to 1,000 g and operates efficiently in temperatures ranging from 0°C to 85°C.
Energy-efficient operation
Consuming just 5. 3 watts during active mode, this SSD ensures efficient power usage while maintaining performance.
| General | |
|---|---|
| Capacity | 1 TB |
| Device Type | Solid state drive - internal |
| Weight | 5.6 g |
| Width | 22.15 mm |
| Height | 2.38 mm |
| Form Factor | M.2 2280 |
| Depth | 80.15 mm |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Interface | PCI Express 5.0 x4 (NVMe) |
| Features | 3D BiCS Flash, Host Memory Buffer (HMB), Idle Time Garbage Collection, TRIM support, NVMe 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | ROHS Directive 2011/65/EU |
| Power | |
| Power Consumption | 5.3 Watt (active)5 mW (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
| Max Storage Temperature | 85 °C |
| Vibration Tolerance (operating) | 20 g @ 20-2000 Hz |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms half-sine wave |
| Performance | |
| 4KB Random Read | 1300000 IOPS |
| 4KB Random Write | 1400000 IOPS |
| SSD Endurance | 600 TB |
| Internal Data Rate | 10000 MBps (read) / 7900 MBps (write) |
| Reliability | |
| MTBF | 1,500,000 hours |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 5.0 x4 (NVMe) - M.2 M key |
