E-CapHDD 24TB 3.5 7.2k SAS 12Gbit/s 5xxe
- Brand
- Toshiba
- Product code
- MG11SCA24TE
- SKU
- SO34DEDW3BXV3
- EAN/GTIN
- 4260557513231
- Hard drive
- Enterprise
- 24 TB
- internal
- 3.5"
- SAS 12Gb/s
- 7200 rpm
- buffer: 1 GB
- Weight: 0.72 KG
Product Info

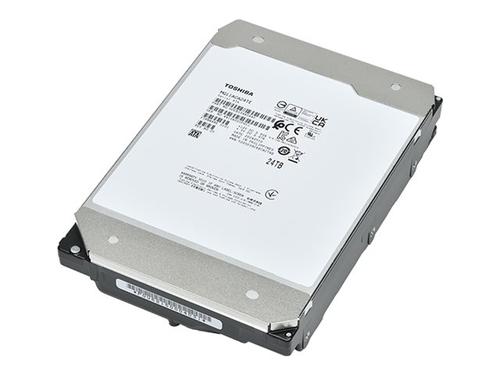

The Toshiba MG11 Series MG11SCA24TE offers storage capabilities with a 24 TB capacity, designed for 24x7 continuous operation. This enterprise-class hard drive features a 7200 rpm spindle speed and a data transfer rate of 1.2 GBps, ensuring performance for demanding workloads. Moreover, its helium sealed-drive design enhances reliability and efficiency while minimizing operational costs. Operating effectively in a wide range of environmental conditions, this hard drive can function in temperatures from 5°C to 55°C and can be stored in environments as cold as -40°C and as warm as 70°C. With an MTBF of 2,500,000 hours, the MG11SCA24TE demonstrates durability and reliability, making it suitable for various enterprise applications.
Description
High capacity
With a 24 TB storage capacity, this hard drive is ideal for handling large volumes of data, making it suitable for enterprise-level applications.
Efficient performance
The drive features a data transfer rate of 1. 2 GBps and a spindle speed of 7200 rpm, which facilitate swift data access and transfer, essential for demanding workloads.
Robust durability
Designed with an MTBF of 2,500,000 hours, this hard drive demonstrates longevity and reliable performance in various operational environments.
Advanced technologies
Equipped with Persistent Write Cache technology and Flux Control Microwave Assisted Magnetic Recording (FC-MAMR), this drive enhances data integrity and workflow efficiency.
Wide operating range
The hard drive operates efficiently in a temperature range of 5°C to 55°C and has a storage tolerance spanning from -40°C to 70°C, offering flexibility in diverse conditions.
| General | |
|---|---|
| Buffer Size | 1 GB |
| Form Factor | 3.5" |
| Weight | 730 g |
| Depth | 147 mm |
| Height | 26.1 mm |
| Capacity | 24 TB |
| Device Type | Hard drive - internal |
| Width | 101.85 mm |
| Interface | SAS 12Gb/s |
| Features | 24x7 continuous operation, workload up to 550 TB per year, advanced format 512e, Conventional magnetic recording (CMR), Flux Control Microwave Assisted Magnetic Recording (FC-MAMR), Helium Sealed-Drive Design, advanced format 4Kn, Persistent Write Cache technology |
| Power | |
| Power Consumption | 8.57 Watt (read/write)4.83 Watt (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 55 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Sound Emission | 20 dBA |
| Vibration Tolerance (non-operating) | 3 g @ 5-500 Hz |
| Shock Tolerance (non-operating) | 200 g @ 2 ms |
| Vibration Tolerance (operating) | 0.75 g @ 5-300 Hz |
| Shock Tolerance (operating) | 50 g @ 2 ms |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Performance | |
| Spindle Speed | 7200 rpm |
| Drive Class | Enterprise |
| Drive Transfer Rate | 1.2 GBps (external) |
| Internal Data Rate | 295 MBps |
| Reliability | |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 10 per 10^16 |
| Load / Unload Cycles | 600,000 |
| MTBF | 2,500,000 hours |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SAS 12 Gb/s |
