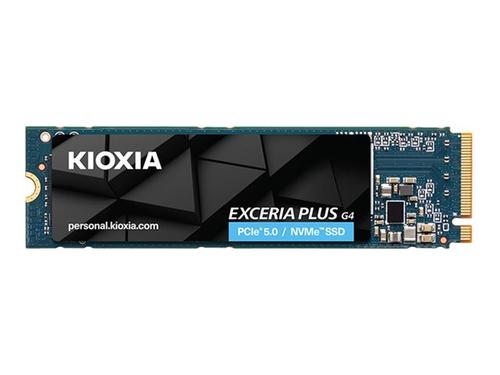

KIOXIA EXCERIA PLUS G4 NVMe M.2 2280 2TB
- Brand
- Kioxia
- Product code
- LVD10Z002TG8
- SKU
- 8RJUOBHGOAHJB
- EAN/GTIN
- 4582563859982
- SSD
- 2 TB
- internal
- M.2 2280
- PCI Express 5.0 x4 (NVMe)
- Weight: 0.04 KG
Product Info
The KIOXIA Exceria Plus G4 Series SSD provides storage capabilities with a generous 2 TB capacity. Engineered for efficiency, this solid state drive utilizes 3D BiCS Flash technology to deliver read speeds of 10,000 MBps and write speeds of 8,200 MBps, ensuring quick access and transfer of files. Designed for reliability, it features a low power consumption of only 5 mW in idle mode and 5.3 watts in active mode, providing an energy-efficient solution for demanding applications.
Operating within a temperature range from -40°C to 85°C for storage and 0°C to 85°C during operation, this SSD is built to endure various environments. The KIOXIA Exceria Plus G4 Series also supports TRIM for optimal performance and includes Idle Time Garbage Collection for efficient data management. With a durability rating of 1,200 TB and a mean time between failures (MTBF) of 1,500,000 hours, it offers longevity that meets the needs of high-performance users.
Description
Robust performance
The KIOXIA Exceria Plus G4 Series SSD boasts an internal data rate of 10,000 MBps for reading and 8,200 MBps for writing, providing performance for a variety of applications.
High durability
With an SSD endurance rating of 1,200 TB and a mean time between failures of 1,500,000 hours, this drive is built to handle heavy workloads and extend its lifespan.
Efficient data management
Featuring TRIM support and Idle Time Garbage Collection, the SSD optimizes data storage and retrieval, ensuring consistent performance over time.
Temperature resilience
This solid state drive operates efficiently in a temperature range of 0°C to 85°C, making it suitable for various environments and applications.
Advanced technology
Utilizing 3D BiCS Flash technology and PCI Express 5. 0 x4 interface, this SSD provides speed and reliability for demanding users.
| General | |
|---|---|
| Weight | 5.7 g |
| Capacity | 2 TB |
| Device Type | Solid state drive - internal |
| Width | 22.15 mm |
| Height | 2.38 mm |
| Form Factor | M.2 2280 |
| Depth | 80.15 mm |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Interface | PCI Express 5.0 x4 (NVMe) |
| Features | 3D BiCS Flash, Host Memory Buffer (HMB), Idle Time Garbage Collection, TRIM support, NVMe 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | ROHS Directive 2011/65/EU |
| Power | |
| Power Consumption | 5.3 Watt (active)5 mW (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
| Max Storage Temperature | 85 °C |
| Vibration Tolerance (operating) | 20 g @ 20-2000 Hz |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms half-sine wave |
| Performance | |
| 4KB Random Read | 1300000 IOPS |
| 4KB Random Write | 1400000 IOPS |
| SSD Endurance | 1200 TB |
| Internal Data Rate | 10000 MBps (read) / 8200 MBps (write) |
| Reliability | |
| MTBF | 1,500,000 hours |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 5.0 x4 (NVMe) - M.2 M key |
