E-CapHDD 24TB 3.5 7.2k SATA 6Gbit/s 512e
- Brand
- Toshiba
- Product code
- MG11ACA24TE
- SKU
- 3HY2ZYSH4ORP4
- EAN/GTIN
- 4260557513248
- Hard drive
- Enterprise
- 24 TB
- internal
- 3.5"
- SATA 6Gb/s
- 7200 rpm
- buffer: 1 GB
- Weight: 0.72 KG
Product Info

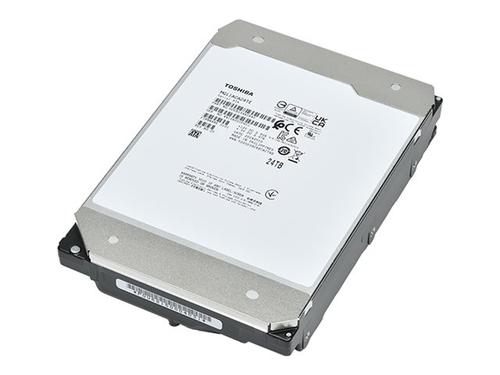

The Toshiba MG11 Series MG11ACA24TE internal hard drive offers performance and reliable storage solutions. With a capacity of 24 TB and a 7200 rpm spindle speed, this hard drive delivers data transfer rates of up to 600 MBps, ensuring efficient data management. Designed for 24x7 continuous operation, it is well-suited for enterprise environments where maximum uptime and reliability are essential. Equipped with Persistent Write Cache technology and Flux Control Microwave Assisted Magnetic Recording (FC-MAMR), this hard drive minimizes error rates and supports workloads of up to 550 TB per year. Its helium-sealed design reduces turbulence during operation, enhancing performance and longevity. With an MTBF of 2,500,000 hours, the Toshiba MG11ACA24TE is a dependable choice for various applications, providing a balance between storage capacity and operational efficiency.
Description
Reliable performance
The Toshiba MG11ACA24TE features a spindle speed of 7200 rpm, providing quick access to stored data while maintaining efficiency in data transfer.
Advanced technology integration
Equipped with Persistent Write Cache technology and Flux Control Microwave Assisted Magnetic Recording (FC-MAMR), this hard drive minimizes errors and combines high capacity with dependable performance.
Durable construction
Designed with helium-sealed technology, the drive reduces turbulence during operation, contributing to its durability and longevity in demanding environments.
Vast workload capability
The drive supports workloads of up to 550 TB per year, suitable for enterprise environments that require consistent high-performance storage.
Extensive operational lifespan
With a mean time between failures (MTBF) of 2,500,000 hours, the Toshiba MG11ACA24TE ensures long-lasting reliability for critical applications.
| General | |
|---|---|
| Buffer Size | 1 GB |
| Form Factor | 3.5" |
| Weight | 730 g |
| Depth | 147 mm |
| Height | 26.1 mm |
| Capacity | 24 TB |
| Device Type | Hard drive - internal |
| Width | 101.85 mm |
| Interface | SATA 6Gb/s |
| Features | 24x7 continuous operation, workload up to 550 TB per year, advanced format 512e, Conventional magnetic recording (CMR), Flux Control Microwave Assisted Magnetic Recording (FC-MAMR), Helium Sealed-Drive Design, advanced format 4Kn, Persistent Write Cache technology |
| Power | |
| Power Consumption | 8.11 Watt (read/write)4.35 Watt (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 55 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Sound Emission | 20 dBA |
| Vibration Tolerance (non-operating) | 3 g @ 5-500 Hz |
| Shock Tolerance (non-operating) | 200 g @ 2 ms |
| Vibration Tolerance (operating) | 0.75 g @ 5-300 Hz |
| Shock Tolerance (operating) | 50 g @ 2 ms |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Performance | |
| Spindle Speed | 7200 rpm |
| Drive Class | Enterprise |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 295 MBps |
| Reliability | |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 10 per 10^16 |
| Load / Unload Cycles | 600,000 |
| MTBF | 2,500,000 hours |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SATA 6 Gb/s |
