RE7504_64GB
- Brand
- BenQ
- Product code
- 9H.F9FTK.DE6
- SKU
- 49AORZYBAL3YK
- EAN/GTIN
- 5054444673233
- 75" Diagonal Class RE04 Series LED-backlit LCD display
- education
- with touchscreen (multi touch)
- Android
- 4K UHD (2160p) 3840 x 2160
- direct-lit LED
- Weight: 64.90 KG
Product Info

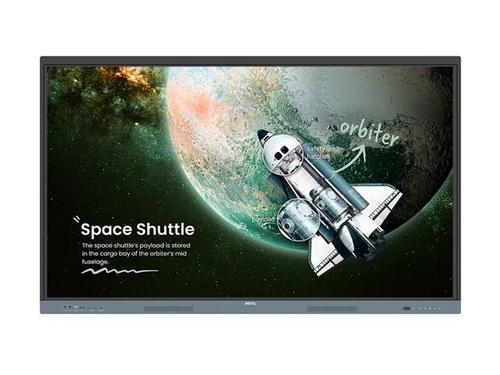

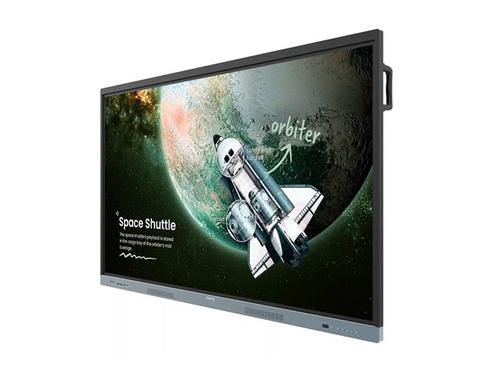

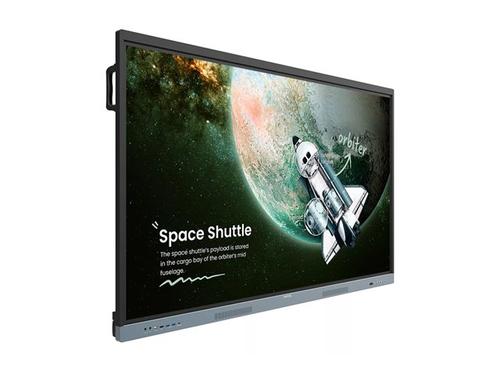

The BenQ Board Essential RE7504 offers a visually stunning experience with its 75-inch LED-backlit LCD flat panel display, featuring a 4K UHD resolution of 3840 x 2160. The brightness of 450 cd/m² combined with a contrast ratio of 1200:1 ensures that images appear sharp and vibrant, making it suitable for educational and commercial use. This display supports a range of connectivity options, including HDMI, USB-C, and VGA, allowing for versatile integration into any setting. The built-in speaker system delivers quality sound with a total output of 40 watts, enriching presentations or media playback. Infrared touch technology and a response time of 8 ms facilitate seamless interaction and engagement, enhancing collaborative experiences in classrooms or conference rooms.
Durability meets functionality with the RE7504, equipped with a dust-resistant design and an operating lifespan of 50,000 hours. It complies with ENERGY STAR standards for energy efficiency, making it an environmentally friendly and cost-effective choice over time. Additional conveniences include multiple USB ports for easy access and the integration of advanced management solutions, allowing users to optimize their presentations and educational tools. The BenQ Board Essential RE7504 combines advanced features with dependable performance for any professional environment.
Description
Stunning visual performance
The RE7504 features a resolution of 3840 x 2160, delivering images that enhance viewing experiences. With a dynamic contrast ratio of 30000:1 and a 72% color gamut NTSC, colors are rendered vibrant and true to life.
Robust connectivity options
Equipped with multiple input types including HDMI, USB-C, and VGA, this display offers flexibility in connecting various devices. An OPS Slot is also included for added functionality.
Enhanced interactive engagement
Incorporating precision touch technology and infrared capabilities, the screen supports responsive touch interactions. This makes it suitable for collaborative environments, allowing multiple users to engage simultaneously.
Energy efficient design
With a low operational power consumption of 73. 9 watts and compliance with ENERGY STAR certification, the RE7504 is an eco-friendly solution that contributes to lower energy costs.
Solid multimedia support
The built-in ARM Cortex processors and 8 GB RAM ensure smooth performance for media functions, while the variety of supported memory cards and USB ports facilitate easy content sharing.
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
| Power | |
| Power Device | Power supply |
| Power Consumption Stand by | 0.5 Watt |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Media Player | |
| USB Ports Qty | 6 |
| USB Port | Yes |
| Supported Memory Cards | microSD |
| Configuration | ARM Cortex-A73 Quad-Core + ARM Cortex-A53 Quad-Core - 8 GB - 32 GB - Mali G52 MP8 |
| Audio System | |
| Output Power / Total | 40 Watt |
| Speaker System | 2 speakers |
| Speakers | 2 x main channel speaker - 20 Watt |
| Display | |
| Touchpoints Qty | 40 |
| Backlight Life | 50,000 hour(s) |
| Response Time | 8 ms |
| Image Aspect Ratio | 16:9 |
| Image Contrast Ratio | 1200:1 |
| Viewing Angle | 178 degrees |
| LCD Display Technology | IPS |
| Dynamic Contrast Ratio | 30000:1 |
| Resolution | 3840 x 2160 |
| LCD Backlight Technology | Direct-lit LED |
| Display Format | 4K UHD (2160p) |
| Brightness | 450 cd/m² |
| Coating | Anti-glare, 9H Hard |
| Operation Hours / Days | 18 / 7 |
| Commercial Features | OPS Slot |
| Features | 10-bit support, precision touch technology, infrared touch technology, Device Management Solution (DMS), Account Management System (AMS), Flicker free technology, Low Blue Light Technology, text-to-speech function |
| Network & Internet Multimedia | |
| LAN Protocol | Gigabit Ethernet |
| Functionality | Whiteboard |
| Connectivity | LAN |
| Application Store | Google Play |
| Connect & Share | InstaShare 2 |
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 18.5 cm |
| Weight (Shipping) | 64.9 kg |
| Width (Shipping) | 186 cm |
| Height (Shipping) | 112.5 cm |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| Stands & Mounts | |

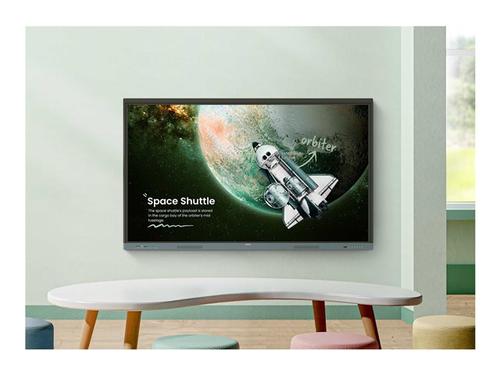

| Wall Mount Included | Yes |
| VESA Compatibility | Yes |
| Flat Panel Mount Interface | 800 x 400 mm |
| Remote Control | |
| Type | Remote control |
| General | |
| TV Tuner Presence | No |
| HDMI Ports Qty | 3 ports |
| Weight | 50.2 kg |
| Video Interface | HDMI |
| TV Tuner | No tuner |
| Platform | Android |
| PC Interface | VGA (HD-15), DisplayPort |
| Product Type | LED-backlit LCD flat panel display |
| Diagonal Class | 75" |
| Depth | 8.77 cm |
| Power Consumption Operational | 73.9 Watt |
| Protection | Dust-resistant |
| Modes | Landscape mode |
| Combined With | Touchscreen (multi touch) |
| Sensors | Ambient light sensor (ALS), Infrared (IR) |
| Picture Enhancements | 72% Colour Gamut NTSC |
| Operating System | Android OS 13 |
| Commercial Use | Yes - education |
| Series | RE04 Series |
| Width | 171.65 cm |
| Height | 104.16 cm |
| Miscellaneous | |
| Included Accessories | 2 styluses |
| Cables Included | VGA cable - 3 mHDMI cable - 3 mUSB touch cable - 3 mUSB-C cable - 1.5 m |
| Compliant Standards | Google EDLA, TÜV safety certification, IEC 60529 IP5X |
| Connections | |
| Connector Type | VGA input3 x HDMI inputHDMI outputDisplayPort2 x USB 2.02 x USB 3.0USB-C 2.0USB-C 3.0 with 65W Power DeliveryTouchAudio line-inEarphonesSPDIF outputGigabit LANMicrophoneRS-232 |
