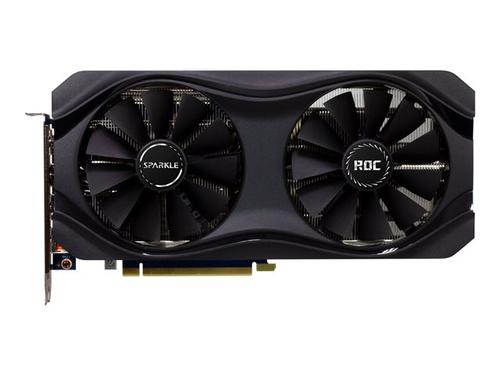

SPARKLE Arc A770 ROC OC 16GB GDDR6
- Brand
- SPARKLE
- Product code
- SA770R-16GOC
- SKU
- J9PUK21NXEC0Y
- EAN/GTIN
- 4711342290573
- OC Edition
- graphics card
- Intel Arc A770
- 16 GB GDDR6
- PCIe 4.0 x16
- 3 x DisplayPort, HDMI
- Weight: 1.22 KG
The SPARKLE Intel Arc A770 ROC Open Edition graphics card powers a new era in gaming and creative performance. With a potent 16 GB of GDDR6 SDRAM and a 256-bit bus width, this card delivers bandwidth of 560 GBps and memory speeds of 17.5 Gbps. This architecture supports a maximum external resolution of 7680 x 4320, ensuring visuals for even the most demanding applications. Connect with three DisplayPorts and one HDMI port, all featuring version 2.0 support, to unlock the potential of ultra-high-definition displays.
Equipped with Intel Deep Link Technology and advanced video adapter features, including variable rate shading and ray tracing capabilities, the A770 ROC is engineered for gaming and content creation. Enjoy enhanced performance with 32 Ray Tracing Units and 512 Intel XMX Engines. The cooling system includes dual 100mm double-ball bearing fans to maintain performance during intense gaming sessions. This graphics card supports modern APIs such as OpenGL 4.6 and DirectX 12, making it a versatile option for users seeking graphics rendering.
Description
Powerful performance
With a boost clock speed of 2300 MHz and operational power consumption of 225 watts, the A770 ROC delivers performance suitable for gaming and resource-intensive applications.
High-definition output
The card supports maximum resolutions of 7680 x 4320 via DisplayPort at 60 Hz and 4096 x 2160 via HDMI at 60 Hz, providing crisp and clear image quality.
Robust architecture
Featuring a 256-bit bus width and a memory bandwidth of 560 GBps, this graphics card is designed for high-speed data transfer, achieving performance in demanding scenarios.
Advanced cooling system
The design includes two 100mm double-ball bearing fans which optimize airflow and maintain stable temperatures during prolonged gaming sessions.
Versatile API support
Compatible with OpenGL 4. 6, DirectX 12, OpenCL 3. 0, and Vulkan 1. 3, this graphics card enhances compatibility with various games and applications, ensuring a seamless experience.
| General | |
|---|---|
| Device Type | Graphics card |
| Boost Clock | 2300 MHz |
| Max Resolution | 7680 x 4320 at 60 Hz |
| Max Resolution Details | DisplayPort: 7680 x 4320 at 60 Hz/ HDMI: 4096 x 2160 at 60 Hz |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | Intel Arc A770 |
| Interfaces Details | HDMI3 x DisplayPort (version 2.0) |
| API Supported | DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 3.0 |
| Features | 32 Xe Cores, 32 Ray Tracing Units, 512 Intel XMX Engines, 512 Xe Vector Engines, metal backplate, variable rate shading (VRS), AV1 decode support, AV1 encode support, VP9 support, Intel Deep Link Technology, Ray Tracing, 2 x 100mm double-ball bearing fans |
| Memory | |
| Size | 16 GB |
| Bus Width | 256-bit |
| Technology | GDDR6 SDRAM |
| Memory Speed | 17.5 Gbps |
| Bandwidth | 560 GBps |
| Miscellaneous | |
| Depth | 13.1 cm |
| Power Consumption Operational | 225 Watt |
| Height | 5.1 cm |
| Width | 28.1 cm |
| Weight | 880 g |
| System Requirements | |
| Required Power Supply | 650 W |
| Additional Requirements | 2 x 8 pin PCI Express power connector |
| OS Required | Windows 11, Windows 10, Ubuntu 22.04 |
