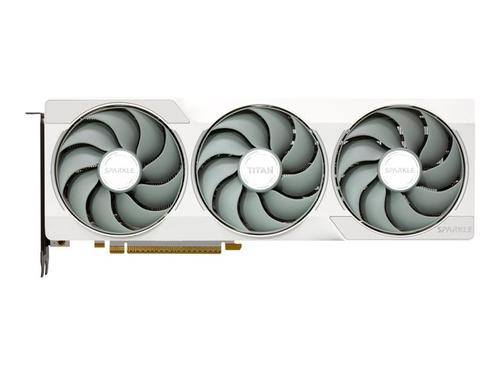

SPARKLE Arc B580 Titan Luna OC 12GB
- Brand
- SPARKLE
- Product code
- SB580TW-12GOC
- SKU
- 1QTMIV1TLQ054
- EAN/GTIN
- 4711342290788
- OC Edition
- graphics card
- Arc B580
- 12 GB GDDR6
- PCIe 4.0 x8
- 3 x DisplayPort, HDMI
- Weight: 1.60 KG
The SPARKLE Intel Arc B580 TITAN Luna OC Edition graphics card offers performance with 12 GB of GDDR6 SDRAM and a powerful Intel Arc B580 graphics processor. With a bandwidth of 456 GBps, this graphics card ensures smooth performance during demanding tasks. Enjoy visuals at a maximum resolution of 7680 x 4320 and support for up to four monitors, making it suitable for gaming or resource-intensive applications. Features include Adaptive-Sync, variable rate shading, and ray tracing, enhancing the experience while gaming or rendering graphics. Designed for optimal cooling and longevity, it has a 2.2-slot fan cooler alongside three AXL fans to maintain temperatures during operation. Transform your setup with the blue breathing light and a durable metal backplate, providing functionality and style.
Description
High performance
Experience exceptional performance with a maximum NPU performance of up to 233 TOPS, making this graphics card suitable for demanding applications.
Extensive connectivity
Equipped with three DisplayPorts and an HDMI port, this card offers versatile connectivity options to support multiple displays seamlessly.
Efficient power consumption
Designed to operate efficiently, the card consumes only 200 W under operational conditions, balancing performance and energy use.
Advanced graphics support
Supports OpenGL 4. 6, DirectX 12 Ultimate, OpenCL 3. 0, and Vulkan 1. 3, enabling compatibility with a wide range of games and applications.
Robust cooling solution
Features a 2. 2-slot fan cooler along with three AXL fans and TORN cooling 2. 0 technology, ensuring optimal cooling for uninterrupted performance.
| General | |
|---|---|
| Max Monitors Supported | 4 |
| Device Type | Graphics card |
| Interfaces Details | HDMI3 x DisplayPort |
| Max Resolution | 7680 x 4320 at 120 Hz |
| Bus Type | PCI Express 4.0 x8 |
| API Supported | DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 3.0 |
| Graphics Engine | Intel Arc B580 |
| Boost Clock | 2740 MHz |
| Max Resolution Details | DisplayPort: 7680 x 4320 at 60 Hz/ HDMI: 7680 x 4320 at 120 Hz |
| Features | Blue breathing light, 20 Xe Cores, 20 Ray Tracing Units, 160 Intel XMX Engines, TORN cooling 2.0, metal backplate, Ray Tracing, variable rate shading (VRS), Adaptive-Sync, AV1 encode support, AV1 decode support, VP9 support, Intel Deep Link Hyper Compute, Intel Deep Link Hyper Encode, Intel Deep Link Stream Assist, 3 x AXL fans, 2.2-slot Fan Cooler |
| Memory | |
| Size | 12 GB |
| Bus Width | 192-bit |
| Technology | GDDR6 SDRAM |
| Bandwidth | 456 GBps |
| Miscellaneous | |
| Depth | 31.5 cm |
| Power Consumption Operational | 200 Watt |
| Width | 4.4 cm |
| Height | 11.7 cm |
| Weight | 954 g |
| Included Accessories | VGA Holder |
| System Requirements | |
| Required Power Supply | 600 W |
| Additional Requirements | 8 pin PCI Express power connector |
| OS Required | Windows 11, Windows 10 |
| Performance | |
| AI Datatype Support on NPU | INT8 |
| NPU Performance Up To (TOPS) | 233 TOPS |
