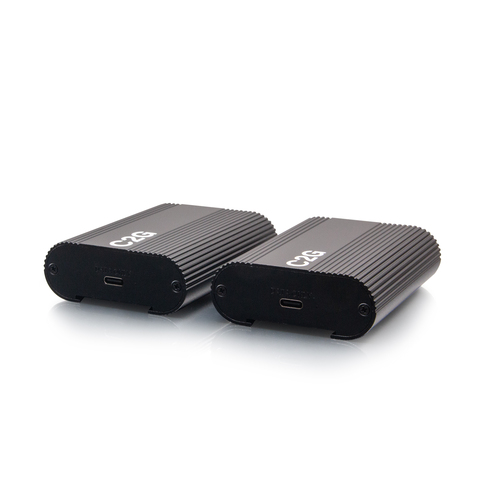

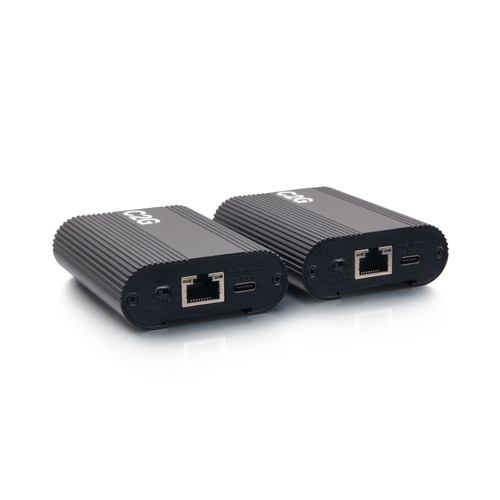

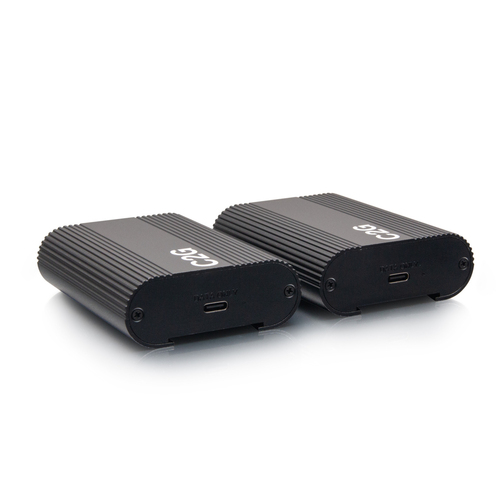

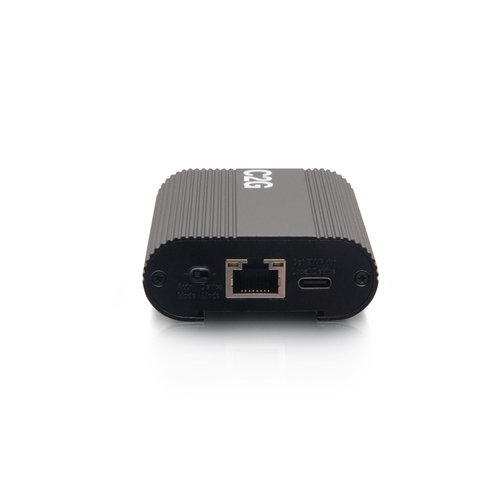

C2G Superbooster USB Camera Extender Over Cat Box to Box Kit - USB extender - over CAT 6 - up to 45.7 m
- Brand
- C2G
- Product code
- C2G54277
- SKU
- 82RBX10Q5T1SJ
- EAN/GTIN
- 757120542773
- Tested and proven to support leading PTZ cameras at 1080p or 4K resolutions depending on the camera
- Extends a USB camera up to 150ft (45.7m) over Cat6
- Lower power consumption - typically 0.5W
- Bi-directional data and power transfer – simplifies installation by allowing the same module to be used as either a transmitter or receiver
- As easy to use as a passive cable. Plug and play with no software or drivers required
- Up to 1.5A power delivery from host to device Optional external power to support high-current devices(up to 3A)
- Supports a dual-mode USB-C device when explicit device mode is selected. Compatible with USB 2.0. Compatible to USB 1.1 if a USB 2.0 hub is used on the device end
Product Info
C2G Superbooster USB Extenders deliver reliable USB signal transmission for USB devices, allowing devices such as cameras, interactive whiteboards and printers to be placed at greater distances from the host computer.
What's more, the C2G Superbooster USB Camera Extender has been tested to be compatible with industry-leading video conferencing cameras. Not only does this testing ensure reliability and deployment confidence for AV integrators, it saves valuable time as well.
This camera extender is designed with chipset technology that offers a higher compatibility rate than other USB extenders on the market. The C2G Superbooster USB Camera Extender has been tested and proven by C2G to support leading PTZ cameras at 1080p or 4K resolutions depending on the camera.
This Superbooster USB Camera Extender provides reliable USB data extension from a computer to a USB camera up to 150 feet (45.7m) over a standard Cat6 network cable – making it an ideal solution for conference rooms, command centers, classrooms, auditoriums and medical facilities.
This plug-and-play solution consists of one box transmitter and one box receiver.
| Features | |
|---|---|
| Type | Console transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Maximum transfer distance | 45.7 m |
| LED indicators | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
| Product colour | Black |
| Compatible products | AVAYA RC100 AVer Cam550 AVer TR333V2 Bose Video Bar VB1 Huddlecam Huddly IQ Jabra PanaCast 50 Logitech BCC950 Logitech Brio 4K Logitech Meetup Logitech Rally Bar Logitech Rally Camera Owl Labs Meeting Owl 3 Polycom Poly Studio 4K USB video Polycom Poly Studio X50 - device mode Vaddio IntelliSHOT Vaddio RoboSHOT Yealink UVC86 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| USB ports quantity | 4 |
| USB version | 2.0 |
| USB connector type | USB Type-C |
| Power | |
| Power source type | USB |
| Input current | 0.5 A |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -35 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 62.95 x 24 x 121 mm |
| Transmitter dimensions (WxDxH) | 62.95 x 24 x 121 mm |
| Packaging content | |
| Mounting brackets included | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS |
