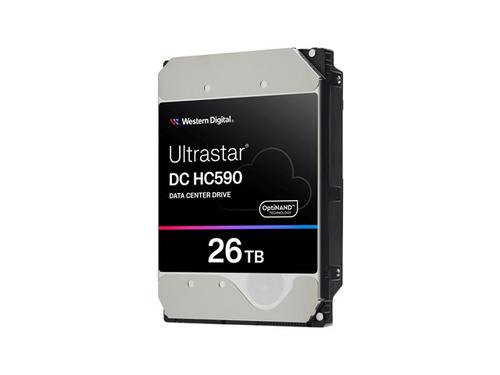

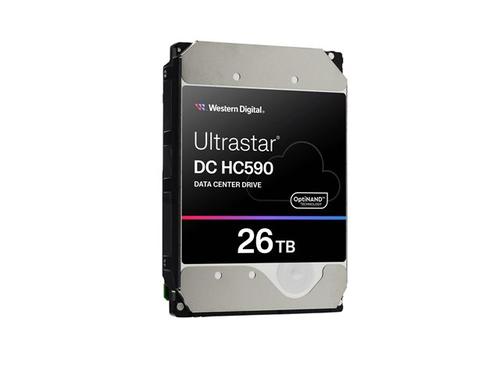

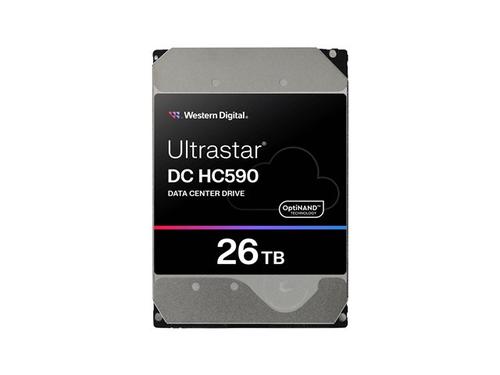

DC HC590 26TB 512MB SATA 512E SE NP3
- Brand
- Western Digital
- Product code
- 0F65672
- SKU
- 2B9O4UV563MMW
- EAN/GTIN
- 829686009141
- Hard drive
- Data Centre
- encrypted
- 26 TB
- internal
- 3.5"
- SATA 6Gb/s
- 7200 rpm
- buffer: 512 MB
- TCG Encryption
- Weight: 0.66 KG
Product Info
The WD Ultrastar DC HC590 internal hard drive offers a 26 TB capacity, making it suitable for data centers requiring high-performance storage solutions. With a data transfer rate of 600 MBps and an average latency of 4.16 ms, this hard drive enables swift access and retrieval of critical data, enhancing overall system efficiency. Built with technologies such as HelioSeal and Energy-Assisted Magnetic Recording (EAMR), it ensures reliable performance and optimal energy usage, allowing for 24x7 operation without compromising on speed. Features like Rotational Vibration Safeguard (RVS) and Dynamic Fly Height Technology improve data integrity and drive longevity, making it a dependable choice for enterprise applications.
Designed to withstand a variety of environmental conditions, the WD Ultrastar DC HC590 operates efficiently in temperatures ranging from 5°C to 60°C and can handle storage conditions from -40°C to 70°C. With a robust MTBF of 2,500,000 hours, this hard drive is constructed for durability, ensuring that data remains safe even under demanding scenarios. The internal data rate of 302 MBps and a spindle speed of 7200 rpm further enhance its performance, making it suitable for high-traffic workloads and continuous data access requirements.
Description
High capacity storage
The WD Ultrastar DC HC590 provides a 26 TB capacity, catering to the needs of large data storage applications such as cloud storage and enterprise-level data centers.
Fast data access
With a data transfer rate of 600 MBps, this hard drive allows for quick data retrievals and exchanges, significantly improving workflow and minimizing downtime.
Environmentally resilient
Engineered to function in a wide temperature range from 5°C to 60°C and withstand storage temperatures from -40°C to 70°C, ensuring reliable performance across various conditions.
Advanced reliability features
Incorporating Rotational Vibration Safeguard (RVS) and Dynamic Fly Height Technology, the hard drive effectively minimizes the risk of errors and failures, providing enhanced data security.
Robust performance metrics
A spindle speed of 7200 rpm and an MTBF of 2,500,000 hours ensure that this hard drive meets the demands of high-traffic workloads and continuous access requirements.
| General | |
|---|---|
| Buffer Size | 512 MB |
| Form Factor | 3.5" |
| Hardware Encryption | Yes |
| Weight | 670 g |
| Width | 101.6 mm |
| Height | 26.1 mm |
| Device Type | Hard drive - internal |
| Capacity | 26 TB |
| Interface | SATA 6Gb/s |
| Depth | 146.7 mm |
| Features | HelioSeal, advanced format 512e, advanced format 4Kn, OptiNAND technology, ArmorCache Technology, 24x7 availability, Energy-Assisted Magnetic Recording (EAMR), Rotational Vibration Safeguard (RVS), Dynamic fly height technology, Conventional magnetic recording (CMR) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Power | |
| Power Consumption | 8.4 Watt (random read/write)5.6 Watt (idle) |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 5 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 40 g @ 2 ms half-sine wave |
| Vibration Tolerance (operating) | 0.7 gRMS @ 5-500 Hz |
| Vibration Tolerance (non-operating) | 1.04 gRMS @ 2-200 Hz |
| Shock Tolerance (non-operating) | 200 g @ half-sine wave |
| Performance | |
| Average Latency | 4.16 ms |
| Spindle Speed | 7200 rpm |
| Drive Transfer Rate | 600 MBps (external) |
| Drive Class | Data Centre |
| Internal Data Rate | 302 MBps |
| Reliability | |
| Non-Recoverable Errors | 1 per 10^15 |
| 24x7 Operation | Yes |
| Load / Unload Cycles | 600,000 |
| MTBF | 2,500,000 hours |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SATA 6 Gb/s |
