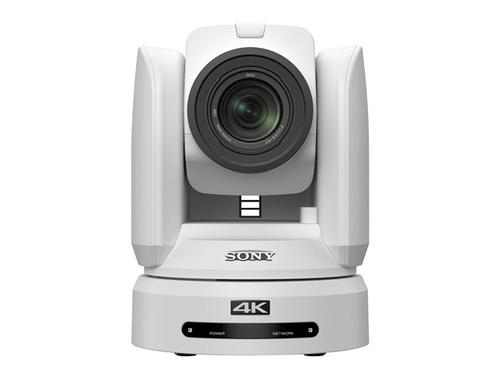

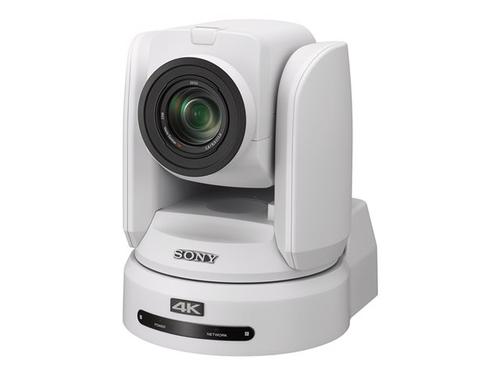

BRC-X1000 4K30P PTZ camera - white
- Brand
- Sony
- Product code
- BRC-X1000/W
- SKU
- VZKKF1WNFKLVZ
- Conference camera
- PTZ
- colour (Day&Night)
- 20.4 MP
- motorized
- 1800 TVL
- HDMI, 3G-SDI
- DC 10.8
- 13.2 V / PoE Plus
Product Info
The BRC-X1000 is a Sony remote camera, combining uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections. Designed for remote operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It's also particularly suited to efficient multi-camera setups, under the control of a single operator.
Description
Enhanced PTZ operation
Accurately re-frame shots or track moving subjects with smooth, speedy, near-silent remote control of pan, tilt and zoom functions. There's also low-speed zoom and a slow pan/tilt mode for precise, judder-free camera movements.
Cinematic pictures
The camera can also operate in 24p mode, for video footage with a rich, cinematic look.
Excellent low-light sensitivity
The BRC-X1000 can capture crisp, low noise color video images in low light levels, making it an ideal choice for dimly lit live hall and theater.
Flexible installation
Integration is simplified in a wide range of environments, with PoE+ to reduce cabling requirements and VISCA control over IP.
Versatile video outputs
Enjoy greater installation flexibility in professional broadcast and AV environments with dual link 3G-SDI and HDMI video outputs.
| Miscellaneous | |
|---|---|
| Colour | White |
| Compliant Standards | IEEE 802.3at, IEC 60130-10 |
| Included Accessories | Remote control, 2 ceiling mount brackets, wire rope, screws, HDMI cable fixing plate |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| General | |
| Height | 26 cm |
| Weight | 4.3 kg |
| Depth | 23.8 cm |
| Width | 19.8 cm |
| Camera Mount Type | Ceiling mount |
| Connectivity Technology | Wired |
| Device Type | Conference camera |
| Lens Construction | |
| Min Focus Distance | 8 cm |
| Focus Adjustment | Automatic, manual |
| Optical Zoom | 12 x |
| Lens Iris | F/2.8-4.5 |
| Type | Motorized zoom |
| Horizontal Field of View (degree) | 64.6 |
| Focal Length | 9.3 mm - 111.6 mm |
| Camera | |
| Frame Rate (max) | 60 frames per second |
| Horizontal Resolution (TV Lines) | 1800 |
| Type | Colour - Day&Night - pan / tilt / zoom |
| Exposure Range | 1/6 sec - 1/10000 sec |
| Minimum Illumination | 1.7 lux F2.8 - 50 IRE - shutter 1/30 sec |
| Features | Clear Image Zoom, GENLOCK, auto gain control, auto exposure control, back illuminated sensor, Shutter Priority mode, auto white balance, 100 preset positions, image flip, Visibility Enhancer, PTZ Trace memory 16, PTZ Motion Sync, Picture Profile Preset, ND Filter, Color Gain (15 step), Color Hue (15 step), Gamma Level (15 step), Black Level (97 step), Black Gamma (15 step), Knee Point (13 step), Flicker Cancel |
| Video Modes | 2160/29.97p, 1080/59.94p, 1080/59.94i, 720/59.94p, 2160/25p, 1080/50p, 1080/50i, 720/50p, 2160/23.98p, 1080/23.98p, 1080/60p |
| Panning | |
| Range (degree) | -170 to +170 |
| Speed (degree/sec) | Up to 60 |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 60 |
| Interfaces | |
| Video | HDMI, 3G-SDI |
| Control Interface | RS-422, VISCA |
| Power | |
| Power Device | Power adapter - external 25.5 Watt |
| Power Requirements | DC 10.8 - 13.2 V / PoE Plus |
| Image Sensor | |
| Type | 20.4 MP Exmor R CMOS 1" |
| Expansion / Connectivity | |
| Ports | 4 x 3G-SDI - BNCHDMI output - HDMI Type AVISCA input - RJ-45VISCA output - RJ-45HD 3-level sync - BNCLAN (PoE+ output) - RJ-45 |
