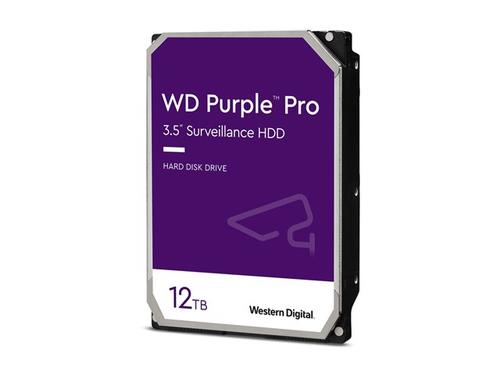

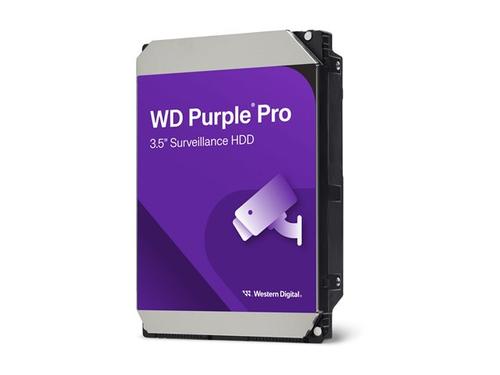

HDD Purple Pro 12TB 3.5 SATA 6GBs 512MB
- Brand
- Western Digital
- Product code
- WD122PURP
- SKU
- DC854BXX3S192
- EAN/GTIN
- 718037901299
- Hard drive
- 12 TB
- internal
- 3.5"
- SATA 6Gb/s
- 7200 rpm
- buffer: 512 MB
- Weight: 0.74 KG
Product Info
The WD Purple Pro internal hard drive is engineered for 24x7 continuous operation, making it suitable for surveillance systems requiring high-capacity storage. With a substantial capacity of 12 TB, it supports up to 64 cameras, ensuring that critical footage is captured and stored seamlessly. The drive utilizes Advanced Format technology and Conventional Magnetic Recording (CMR) for efficient data management, providing reliable performance with a data transfer rate of up to 600 MBps. Designed for durability, the WD Purple Pro features tarnish-resistant components and operates effectively in temperatures from 0°C to 65°C while withstanding storage temperatures as low as -40°C. The drive's robust construction is complemented by a mean time between failures (MTBF) of 2,000,000 hours, ensuring long-term reliability for mission-critical applications. Additionally, with low sound emission of 34 dBA, it operates quietly, making it suitable for various environments.
Description
Reliable 24x7 operation
The WD Purple Pro is optimized for continuous operation, ensuring that it can handle constant writing and reading demands typical in surveillance applications without interruption.
Robust storage capacity
With a capacity of 12 TB, this hard drive provides ample space for storing large volumes of footage from multiple cameras.
Enhanced data integrity
Non-recoverable errors are minimized to 1 per 10^15, ensuring that data remains safe and reliable over time.
Environmentally resilient
With operating temperatures ranging from 0°C to 65°C and storage temperatures from -40°C to 70°C, it is built to perform reliably in various environments.
Efficient data transfer rates
Achieves data transfer rates of up to 600 MBps, supporting fast access to stored information for quick retrieval and playback.
| General | |
|---|---|
| Buffer Size | 512 MB |
| Form Factor | 3.5" |
| Weight | 750 g |
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Capacity | 12 TB |
| Device Type | Hard drive - internal |
| Interface | SATA 6Gb/s |
| Features | Advanced Format technology, 24x7 continuous operation, Conventional magnetic recording (CMR), AllFrame AI, support up to 64 cameras, tarnish-resistant, OptiNAND technology |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | ROHS Directive 2015/863/EU, ROHS Directive 2011/65/EU, BSMI, ICES-003, NMB-003, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB Scheme, TUV, UL |
| Power | |
| Power Consumption | 9.1 Watt (read/write)8.2 Watt (idle)0.3 Watt (standby)0.3 Watt (sleep) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 65 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Sound Emission | 34 dBA |
| Shock Tolerance (operating) | 70 g @ 2 ms |
| Shock Tolerance (non-operating) | 250 g @ 2 ms |
| Performance | |
| Spindle Speed | 7200 rpm |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 267 MBps |
| Reliability | |
| Non-Recoverable Errors | 1 per 10^15 |
| 24x7 Operation | Yes |
| Load / Unload Cycles | 600,000 |
| MTBF | 2,000,000 hours |
| Software & System Requirements | |
| Software Included | Western Digital Device Analytics |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SATA 6 Gb/s |
