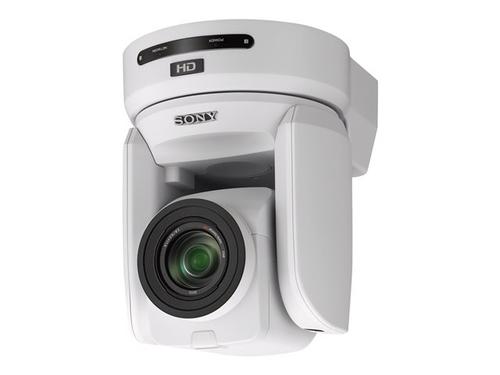

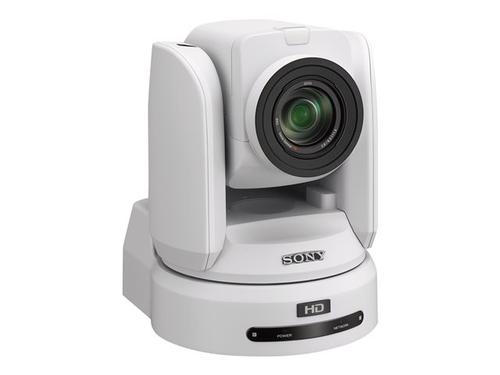

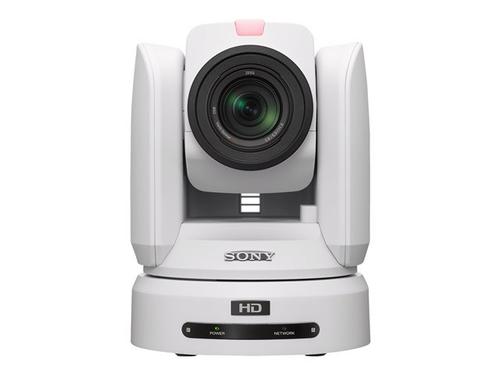

Sony BRC-H800 PTZ Camera

BRC-H800/W - 5013493411777

BRC-H800 HD PTZ camera - white

Brand: Sony
Product code: BRC-H800/W
SKU: T41J0Q5OEVH4J
EAN/GTIN: 5013493411777

Conference camera
PTZ
colour (Day&Night)
20.4 MP
motorized
850 TVL
HDMI, 3G-SDI
DC 10.8
13.2 V / PoE Plus

€5535.85 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

The BRC-H800 remote camera combines uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections. Designed for unattended operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.

Description

Enhanced pan/tilt/zoom operation

Accurately re-frame shots or track moving subjects with smooth, speedy, near-silent remote control of pan, tilt and zoom functions. There's also low-speed zoom and a slow pan/tilt mode for precise, judder-free camera movements.

Excellent low light sensitivity

The BRC-H800 can capture crisp, low noise color video images in low light levels, making it an ideal choice for dimly lit live hall and theater.

Flexible installation

Integration is simplified in a wide range of environments, with PoE+ to reduce cabling requirements and VISCA control over IP.

Front and rear tally lamps

Ideal for on-air broadcast use, the BRC-H800 features dual tally lamps on the front and rear of the camera body. Brightness of the front tally lamp can be adjusted in two steps.

Specifications

Miscellaneous

Colour White

Compliant Standards IEEE 802.3at, IEC 60130-10

Included Accessories Remote control, 2 ceiling mount brackets, wire rope, screws, HDMI cable fixing plate

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

General

Height 26 cm

Weight 4.3 kg

Depth 23.8 cm

Width 19.8 cm

Camera Mount Type Ceiling mount

Connectivity Technology Wired

Device Type Conference camera

Lens Construction

Min Focus Distance 8 cm

Focus Adjustment Automatic, manual

Optical Zoom 12 x

Lens Iris F/2.8-4.5

Type Motorized zoom

Horizontal Field of View (degree) 64.6

Focal Length 9.3 mm - 111.6 mm

Camera

Horizontal Resolution (TV Lines) 850

Type Colour - Day&Night - pan / tilt / zoom

Exposure Range 1/6 sec - 1/10000 sec

Minimum Illumination 1.7 lux F2.8 - 50 IRE - shutter 1/30 sec

Video Modes 1080/59.94p, 1080/59.94i, 720/59.94p, 1080/50p, 1080/50i, 720/50p, 1080/23.98p

Features Auto gain control, auto exposure control, auto white balance, 100 preset positions, PTZ Motion Sync, PTZ Trace memory 16, Visibility Enhancer, image flip, Picture Profile Preset

Panning

Range (degree) -170 to +170

Speed (degree/sec) Up to 60

Tilting

Range (degree) -30 to +90

Speed (degree/sec) Up to 60

Power

Power Device Power adapter - external 23 Watt

Power Requirements DC 10.8 - 13.2 V / PoE Plus

Interfaces

Video HDMI, 3G-SDI

Control Interface RS-422, VISCA

Image Sensor

Type 20.4 MP Exmor R CMOS 1"

Expansion / Connectivity

Ports 2 x 3G-SDI - BNCHDMI output - HDMI Type AVISCA input - RJ-45VISCA output - RJ-45HD 3-level sync - BNCLAN (PoE+ output) - RJ-45
