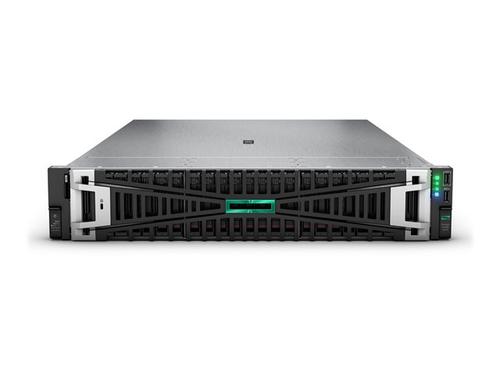

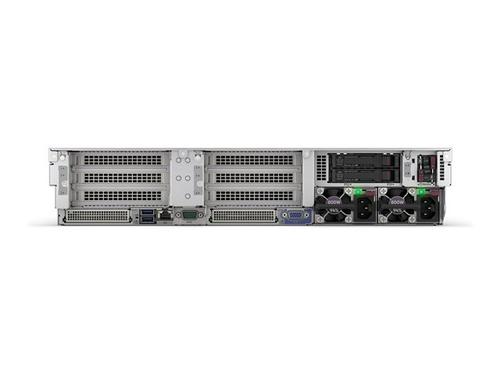

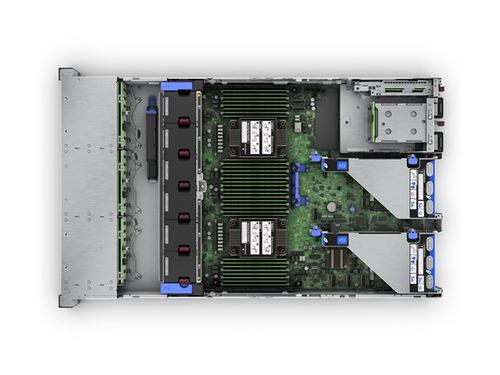

HPE ProLiant DL380 Gen11 4514Y 2.0GHz 16c 1P 64GB-R 8SFF MR416i-o 2x2.4TB HDD 2x1000W PS EU Server - This HPE pre built server includes the following: - 2x P64706-B21 = HPE 32GB (1x32GB) Dual Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit - 2x P28352-B21 = HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD - 2x P03178-B21 = HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit - If you have any questions or additional product requirements, please
- Brand
- Hewlett Packard Enterprise
- Product code
- P77235-425
- SKU
- 8PNM4ZLJ8UVDU
- EAN/GTIN
- 190017767697
- This HPE pre built server includes the following:
- 2x P64706-B21 = HPE 32GB (1x32GB) Dual Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit
- 2x P28352-B21 = HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD
- 2x P03178-B21 = HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
- Weight: 27.24 KG
Product Info
The HPE ProLiant DL380 Gen11 is designed to excel in demanding data center environments, offering flexibility and performance to meet diverse workload requirements. With a Xeon Silver processor and support for DDR5 SDRAM, this server allows for improvements in memory speed and capacity. Its rack-mountable chassis is optimized for space efficiency while providing easy access to components, ensuring effective cooling management within server racks. The HPE ProLiant DL380 Gen11 features hot-swap server storage bays compatible with SATA, SAS, and NVMe interfaces. The server is designed for scalability with two-way configuration support and plenty of expansion options, including available bays and slots. Additionally, its integrated management tools streamline remote administration and enhance security with the Trusted Platform Module (TPM 2.0), ensuring system integrity.
Description
Efficient storage capabilities
The server features eight hot-swap storage bays, allowing for easy installation and maintenance of drives. It supports various interface options including SATA, SAS, and NVMe, providing the flexibility needed for different storage setups.
Robust expansion options
With a total of 32 RAM slots and the capability to support expansion cards in available half-length, full-height slots, the HPE ProLiant DL380 Gen11 offers the scalability needed for growing business demands.
Effective cooling and operation
Designed for a wide range of operating environments, the DL380 Gen11 operates efficiently between 10°C and 35°C and can handle humidity levels of 8% to 90% RH, ensuring reliability in various conditions.
Integrated management tools
Equipped with Integrated Lights-Out 6, this server streamlines remote management, allowing administrators to monitor and maintain server health and performance without being onsite.
Enhanced security features
The embedded Trusted Platform Module (TPM 2. 0) ensures a strong foundation for secure boot processes and encryption, protecting the integrity of sensitive data.
| Monitor | |
|---|---|
| Monitor Type | None. |
| Processor / Chipset | |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Clock Speed | 2 GHz |
| Max Turbo Speed | 3.4 GHz |
| Number of Cores | 16-core |
| Chipset Type | Intel C741 |
| CPU | Intel Xeon Silver 4514Y |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Device Type | Power supply - hot-plug |
| Power Provided | 1000 Watt |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V |
| Power Redundancy Scheme | 1+1 |
| 80 PLUS Certification | 80 PLUS Titanium |
| General | |
| Type | Server |
| Hot-Swap Bays Qty | 8 |
| Server Scalability | 2-way |
| Product Form Factor | Rack-mountable - 2U |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localisation | Region: Europe |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 44.8 cm |
| Weight | 16 kg |
| Height | 8.75 cm |
| Depth | 72.7 cm |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labour - 3 years - on-site |
| Storage Controller | |
| Channel Qty | 16 |
| Buffer Size | 8 GB |
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Type | 1 x RAID - OCP |
| Storage Controller Name | HPE MR416i-o Gen11 SPDM |
| Cache Memory | |
| Cache Per Processor | 30 MB |
| Installed Size | L3 Cache - 30 MB |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| Networking | |
| Data Link Protocol | 10 Gigabit Ethernet |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM57416 |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | PXE support, Wake on LAN (WoL) |
| Hard Drive | |
| Type | HDD |
| Interface Type | SAS |
| Capacity | 2 x 2.4 TB |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | HPE Server UEFI |
| OS Certified | Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, Canonical Ubuntu, Oracle Linux, Citrix |
| RAM | |
| Effective Memory Speed | 2800 MHz |
| Rated Memory Speed | 2800 MHz |
| Configuration Features | 2 x 32 GB |
| Form Factor | DIMM 288-pin |
| Slots | 32 (Total) / 30 (empty) |
| Technology | DDR5 SDRAM |
| Installed Size | 64 GB (installed) / 8 TB (max) |
| Features | HPE SmartMemory, registered, slots 17 - 32 are available in two-processor configuration only |
| Optical Storage | |
| Type | No optical drive |
| Miscellaneous | |
| Included Accessories | 4 standard fans |
| Manufacturer Selling Program | HPE Smart Choice |
| Compliant Standards | AES, TLS v1.2, ACPI 6.3, ASHRAE Class A3, ASHRAE Class A4, ErP Lot 9, WEEE 2002/95/EC, FIPS 140-2, low halogen, Triple DES, SMBIOS 3.2, Redfish API |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x external Universal Media Bay8 (total) / 6 (free) x hot-swap 2.5" SFF |
| Slots | 2 (total) / 2 (free) x FlexibleLOM1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x8 mode)1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height (x8 mode) |
| Interfaces | 1 x USB 3.0 (1 in front) (HPE iLO Service Port)4 x USB 3.0 (2 rear, 2 internal)1 x HPE iLO - RJ-45 (1 rear)1 x VGA (1 rear)2 x LAN (10Gigabit Ethernet) |
