Tripp Lite U223-007-IND interface hub

Eaton Tripp Lite series 7-Port Rugged Industrial USB 2.0 Hi-Speed Hub w 15KV ESD Immunity Metal Mountable - Hub - 7 x USB 2.0 - DIN rail mountable, wall-mountable


Brand
Eaton
Product code
U223-007-IND
SKU
HYYHPDFFGPJOZ
  • Adds barcode scanner, serial device, sensor—up to 7 devices—to your host computer
  • Supports USB 2.0 speeds up to 480 Mbps to ensure reliable data transfers
  • Rugged metal housing designed to withstand harsh warehouse and factory environments
  • ESD protection to ±15 kV cuts potential static damage to your connected peripherals
  • Plug-and-play operation with no software required for easy, immediate installation
€111.6 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

Industrial-Grade USB 2.0 Hub Adds up to 7 USB Devices to Your Computer
This USB 2.0 hub with a heavy-duty all-metal housing connects as many as seven USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses. The hub supports USB 2.0 data transfer rates up to 480 Mbps and is backward compatible with USB 1.1 devices.

Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This seven-port hub includes ESD protection to ±15 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with overcurrent protection to safeguard your connected devices against damage and data loss from power surges.

Plug-and-Play Hub Offers Flexible Power and Mounting Options

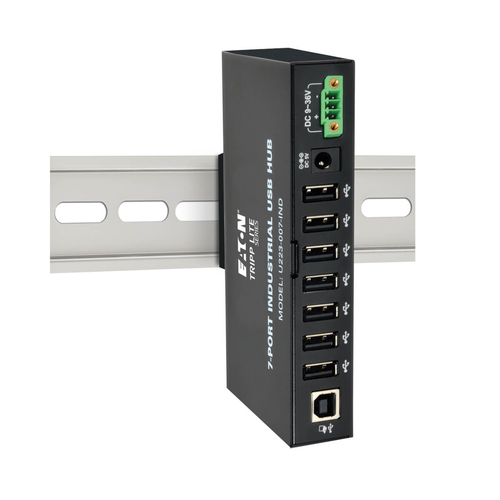

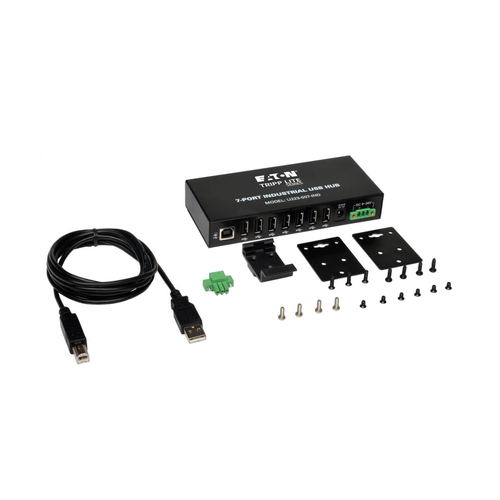

The U223-007-IND requires no software or drivers to download and install. It draws power from the connected computer through the included USB cable. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal, or connect a compatible 5V 3A DC power supply (not included) to a standard AC outlet. The hub mounts easily to a wall or DIN rail using the included hardware.

Ports & interfaces
Hub interfaces USB 2.0
USB 2.0 ports quantity 8
Ports quantity 7
Features
Data transfer rate 480 Mbit/s
Product colour Black
Housing material Metal
Plug and Play Yes
Country of origin China
Weight & dimensions
Width 139.7 mm
Depth 63.5 mm
Height 25.4 mm
Weight 320 g
Packaging data
Package width 231.1 mm
Package depth 160 mm
Package height 71.1 mm
Package weight 540 g
Operational conditions
Operating temperature (T-T) 0 - 60 °C
Operating relative humidity (H-H) 5 - 95%
Logistics data
Master (outer) case width 485.1 mm
Master (outer) case length 337.8 mm
Master (outer) case height 383.5 mm
Master (outer) case gross weight 11.9 kg
Products per master (outer) case 20 pc(s)
Master (outer) case GTIN (EAN/UPC) 10037332181425
Harmonized System (HS) code 84719000
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
