Eaton Tripp Lite series 4-Port DisplayPort KVM Switch w/Audio, Cables and USB 3.0 SuperSpeed Hub - KVM / audio / USB switch - 4 x KVM / audio / USB - 1 local user - desktop
- Brand
- Eaton
- Product code
- B004-DPUA4-K
- SKU
- LRZO45DFYX0WR
- Connect peripherals to built-in 2-port USB 3.0 hub
- Switch among computers via front buttons or keyboard hotkeys
- Supports digital video resolutions up to 2560 x 1600
- Supports Displayport 1.1
- Includes all necessary DisplayPort, USB 3.0 and audio cables
Product Info
Access and Control Up to 4 Computers with One KVM Switch
Switch among computers using keyboard hotkeys or front-panel buttons
Monitor's EDID information sent to connected computer when selected
Auto Scan feature cycles among computers at regular intervals for at-a-glance observation of activity
Supports DisplayPort 1.1
Independent Audio Switching
3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment among computers
Listen to audio files on one computer while accessing another computer
Supports 2-channel stereo audio
Independent USB 3.0 Peripheral Sharing
2-port USB 3.0 SuperSpeed hub allows connection of peripherals, such as webcams, flash drives, printers and scanners
Print documents from one computer while accessing another computer
Supports USB 3.0 data transfer rates up to 5 Gbps
Backward compatible with USB 2.0 and USB 1.1 devices
Compatible with All Major Operating Systems
Easy to set up with no software or drivers to install
Supports digital video resolutions up to 2560 x 1600, including 1080p
Works with Windows, Mac, Linux and Sun

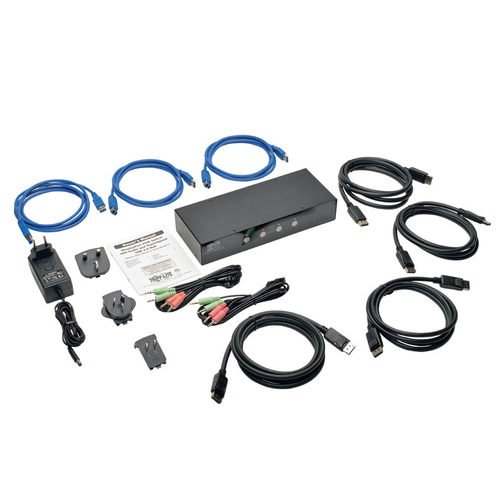

All necessary cables included
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Display connection | Yes |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB B |
| Console USB ports quantity | 4 |
| USB hub | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Audio connections | Yes |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| DC-in jack | Yes |
| Performance | |
| Maximum resolution | 2560 x 1600 pixels |
| DDC/DDC2 supported | Yes |
| Number of users | 1 user(s) |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Cable length | 1.8 m |
| LED indicators | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.8 A |
| Output voltage | 9 V |
| Output current | 2 A |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Sustainability | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 205.7 mm |
| Depth | 99.1 mm |
| Height | 45.7 mm |
| Weight | 950 g |
| Packaging data | |
| Package width | 157.5 mm |
| Package depth | 269.2 mm |
| Package height | 188 mm |
| Package weight | 2.68 kg |
| Packaging content | |
| Cables included | Audio (3.5mm), DisplayPort, USB |
| Manual | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 8517.62.0020 |
| Master (outer) case width | 492.8 mm |
| Master (outer) case length | 551.2 mm |
| Master (outer) case height | 215.9 mm |
| Master (outer) case gross weight | 17 kg |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332188639 |
| Country of origin | China |
