Eaton Tripp Lite series 4-Port DisplayPort KVM with Dual Console Ports (DP and HDMI), 4K 60Hz 4:4:4, DP1.4 with IR Remote - KVM / audio / USB switch - 4 x KVM / audio / USB - 1 local user - desktop
- Brand
- TRIPP LITE
- Product code
- B005-DPUA4
- SKU
- 0RPPKK9BIWHXE
- EAN/GTIN
- 037332255020
- Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) for crystal-clear video
- Carries High Dynamic Range (HDR) signals for expanded color accuracy
- Dual-mode DisplayPort (DP++) support allows connection of a local HDMI display
- Dual USB 3.0 hub ports let you share USB peripherals among connected computers
- Push buttons, hotkeys and included IR remote allow easy toggling between computers
Product Info
Connects 4 DisplayPort-Enabled Devices to a Single Monitor, Keyboard and Mouse
This KVM switch lets you access, control, boot and reboot four computers with DisplayPort connectors and switch between them. In addition to desktop and notebook computers, the switch also connects up to four media centers, video game systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other DisplayPort-enabled devices. All computers share one monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.
Supports DisplayPort++ for Connecting an HDMI or DisplayPort Monitor
The B005-DPUA4 supports DP++, allowing incoming DisplayPort signals to be converted to HDMI. It features one DisplayPort output and one HDMI output, though only one monitor may be used at a time.

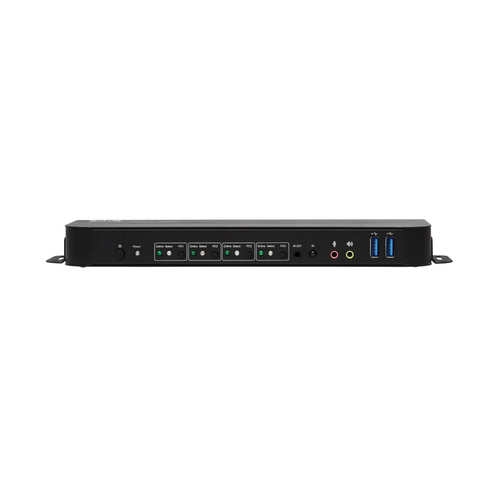

Switching Between Computers Is Fast and Easy
Use the front-panel push buttons, hotkey commands, mouse movement or the included IR remote control for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected. Please note: The included IR remote requires a battery in order to work. Please note: Mouse Traversal is a permanent feature and cannot be disabled
USB Hub Lets You Share Peripherals between Computers
Two USB 3.0 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between both connected computers. The ports support USB 3.0 data transfer speeds up to 5 Gbps and are backward compatible with earlier USB generations.
Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color
The B005-DPUA4 supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This KVM switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

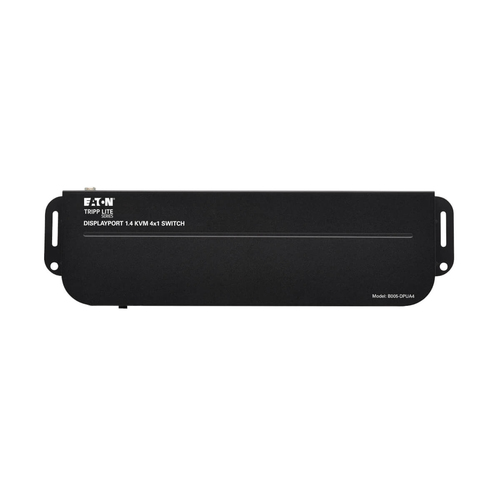

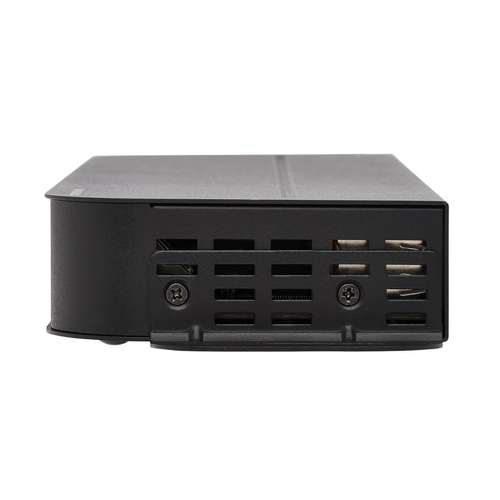

Designed for Convenient Mounting with Included Brackets

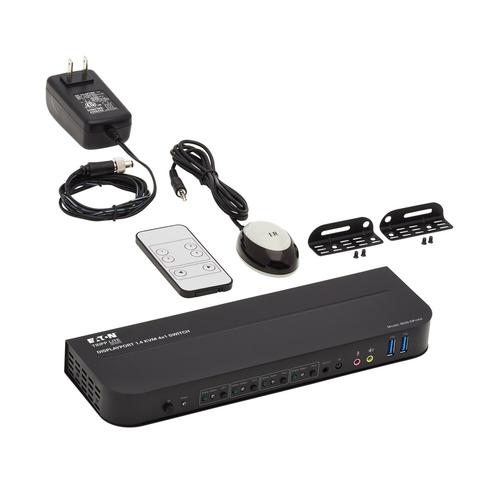

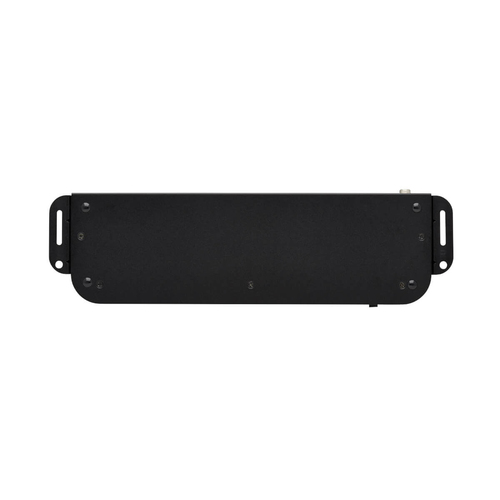

The heavy-duty metal housing comes with mounting brackets for permanent installation on a wall or beneath a desk with user-supplied hardware. The included DC power supply connects to any standard AC power source.

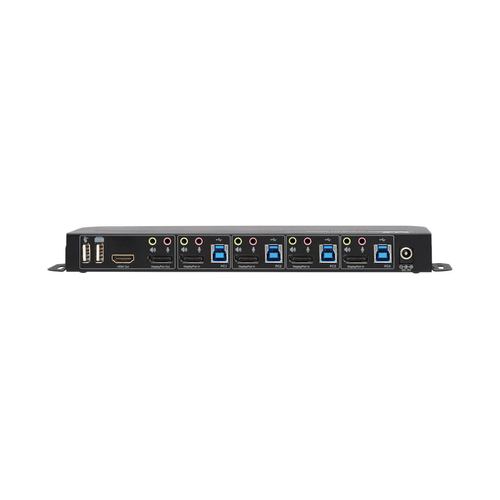

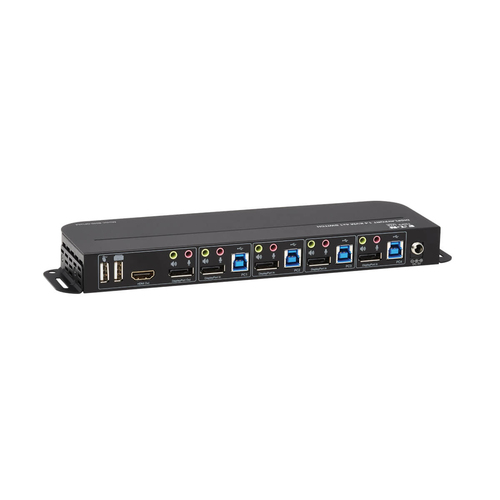

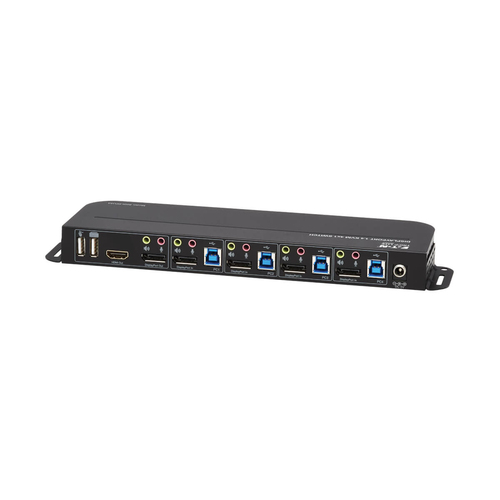

| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI/DisplayPort |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 5 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 6 |
| Number of microphone inputs | 6 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 5 Gbit/s |
| Auto scan delay (min) | 5 s |
| Auto scan delay (max) | 999 s |
| HDCP | Yes |
| Plug and Play | Yes |
| Number of users | 1 user(s) |
| Number of displays supported | 4 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Certification | CE, FCC, REACH |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.6 A |
| Output voltage | 5 V |
| Output current | 3 A |
| Power consumption (typical) | 11.75 W |
| External power adapter | Yes |
| Compatible power plug types | AU, EU, UK, US |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 243.1 mm |
| Depth | 74.9 mm |
| Height | 25.9 mm |
| Weight | 500 g |
| Packaging data | |
| Package width | 230.1 mm |
| Package depth | 200.4 mm |
| Package height | 65 mm |
| Package weight | 550 g |
| Package type | Box |
| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 340.1 mm |
| Master (outer) case length | 249.9 mm |
| Master (outer) case height | 199.9 mm |
| Master (outer) case gross weight | 3.5 kg |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332255027 |
| Country of origin | Vietnam |
