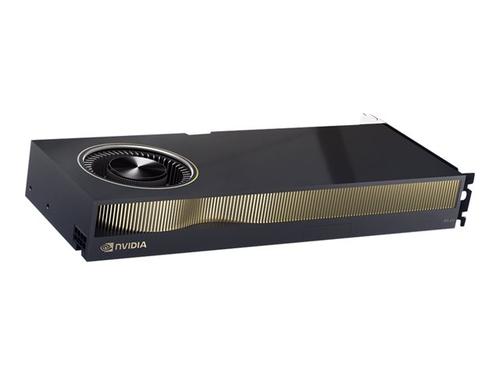

NVIDIA RTX6000 Ada graphics card GDDR6 - PCIe 4.0 x16 - Retail boxed Board with Quick start Guide+Support Guide,2xPCIE 8-Pin to 1xCEM5 16-pin power dongle: 1pc, DP 1.4 to HDMI 2.0 dongle : 1pc - -DOES NOT CONTAIN BRACKETS
- Brand
- NVIDIA GCC
- Product code
- 900-5G133-2550-000
- SKU
- J6UYQG8U983KX
- EAN/GTIN
- 812674025292
- PCIe 4.0 x16
- Retail boxed Board with Quick start Guide+Support Guide,2xPCIE 8-Pin to 1xCEM5 16-pin power dongle: 1pc, DP 1.4 to HDMI 2.0 dongle : 1pc
- Weight: 2.58 KG
The NVIDIA RTX 6000 Ada Generation graphics card offers power for high-end computing needs, featuring 48 GB of GDDR6 SDRAM and a 384-bit bus width. With a bandwidth of 960 GBps, this graphics card is designed to handle robust applications and multi-monitor setups, supporting resolutions up to 7680 x 4320. It incorporates technologies such as NVidia CUDA technology and error correcting codes (ECC) memory, ensuring reliability and performance for demanding tasks. Designed for versatility, the NVIDIA RTX 6000 Ada Generation supports a range of APIs such as DirectX 12, OpenGL 4.6, and Vulkan 1.3, making it compatible with a variety of software. With the capability to connect up to four monitors simultaneously, users can experience enhanced productivity and workflow. Whether for gaming, design, or computational tasks, this graphics card delivers peak floating point and tensor performance, making it a choice for professionals in various fields.
Description
Robust performance
With a peak single-precision floating-point performance of 91. 1 Tflops and a tensor performance of 1457 Tflops, the NVIDIA RTX 6000 Ada Generation is engineered to handle resource-demanding applications efficiently.
Enhanced connectivity
This graphics card comes with four DisplayPort interfaces, supporting multi-monitor setups while ensuring high-definition output without compromising performance.
Advanced rendering capabilities
The card features 142 NVIDIA second-generation RT Cores, allowing for detailed graphics and real-time ray tracing, essential for modern gaming and graphics-intensive applications.
Reliable memory management
Integrated error-correcting code (ECC) memory enhances data integrity, making it ideal for mission-critical applications and professional environments where precision is key.
Flexible working environments
Supporting up to four external displays at high resolutions, this graphics card enables seamless multitasking, suitable for creative professionals and gamers alike.
| General | |
|---|---|
| Max Monitors Supported | 4 |
| Device Type | Graphics card |
| VR Ready | Yes |
| Interfaces Details | 4 x DisplayPort |
| Max Resolution | 7680 x 4320 at 60 Hz |
| Bus Type | PCI Express 4.0 x16 |
| Max Resolution Details | DisplayPort: 7680 x 4320 at 60 Hz (dual displays) / 5120 x 2880 at 60 Hz (four displays) / 4096 x 2160 at 120 Hz (four displays) |
| CUDA Cores | 18176 |
| Graphics Engine | NVIDIA RTX 6000 Ada |
| API Supported | OpenCL 3.0, CUDA 11.6, DirectCompute, DirectX 12, Shader Model 6.6, OpenGL 4.6, Vulkan 1.3 |
| Features | 568 NVIDIA third-generation Tensor Cores, 142 NVIDIA second-generation RT Cores, Error Correcting Codes (ECC) Memory, Active Thermal Solution, Nvidia CUDA technology, 91.1 Tflops peak single-precision floating point performance, 210.6 Tflops RT Core performance, 1457 Tflops tensor performance, Nvidia GPUDirect, NVIDIA Mosaic, NVIDIA RTX IO, NVIDIA RTX Experience, Quadro Sync 2, Nvidia Virtual GPU, NVIDIA GPUDirect Remote Direct Memory Access (RDMA) support, AV1 decode support, AV1 encode support, full-height dual-slot, HDCP |
| Memory | |
| Size | 48 GB |
| Bus Width | 384-bit |
| Technology | GDDR6 SDRAM |
| Bandwidth | 960 GBps |
| Miscellaneous | |
| Package Type | Retail |
| Power Consumption Operational | 300 Watt |
| Height | 11.2 cm |
| Depth | 26.7 cm |
| Compliant Standards | DisplayPort 1.4, HDCP 2.2 |
| Software Included | NVIDIA RTX Desktop Manager |
| System Requirements | |
| OS Required | Linux, Windows 10 |
