Tripp Lite U360-010-IND interface hub

Eaton Tripp Lite series 10-Port Industrial-Grade USB 3.0 SuperSpeed Hub - 20 kV ESD Immunity, Iron Housing, Mountable - Hub - 10 x SuperSpeed USB 3.0 - DIN rail mountable, wall-mountable


Brand
Eaton
Product code
U360-010-IND
SKU
MNB7ETIJUY1HA
  • Adds barcode scanner, serial device, sensor—up to 10 devices—to your host computer
  • Supports USB 3.0 SuperSpeed rates up to 5 Gbps to ensure fast data transfers
  • Rugged metal housing designed to withstand harsh warehouse and factory environments
  • ESD protection to ±20 kV cuts potential static damage to your connected peripherals
  • Plug-and-play operation with no software required for easy, immediate installation
€224.5 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

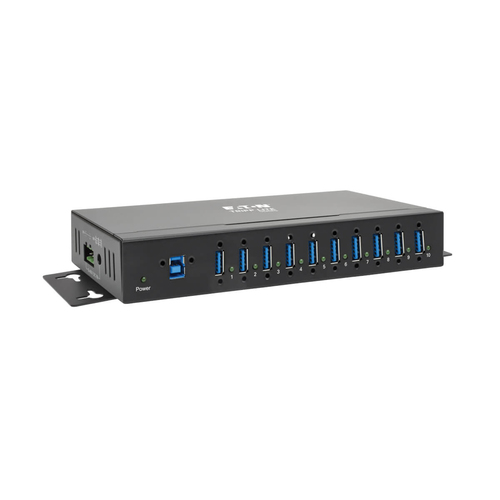

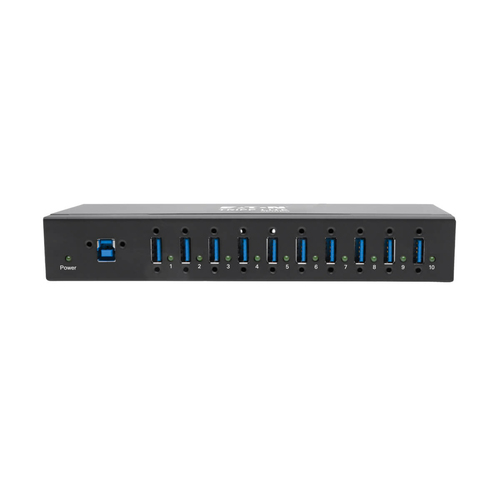

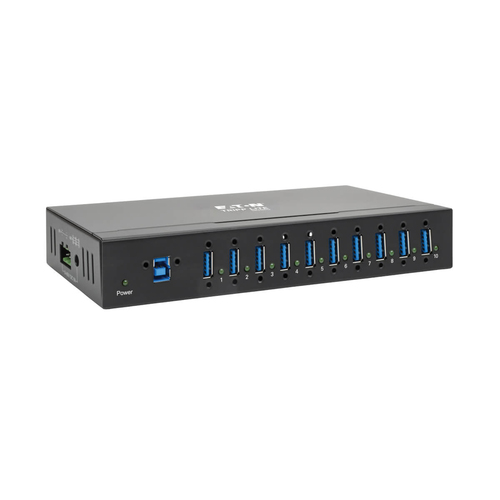

Industrial-Grade USB 3.0 Hub Adds up to 10 USB Devices to Your Computer
This 10-port USB 3.0 hub with a heavy-duty all-metal housing connects as many as 10 USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses.

Supports SuperSpeed USB 3.0 to Ensure Fast Data Transfers
The hub supports USB 3.0 SuperSpeed data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. It is especially recommended for high-bandwidth USB 3.0 devices, such as security cameras and high-resolution webcams. Each downstream port provides up to 900 mA for charging mobile devices. The hub is backward compatible with previous USB standards, so you can also continue using older peripherals while getting maximum performance from current devices.

Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This 10-port hub includes ESD protection to ±20 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with ±2.5kV-per-port overcurrent protection to safeguard your connected devices against damage and data loss from power surges.

Plug-and-Play Hub Offers Flexible Power and Mounting Options

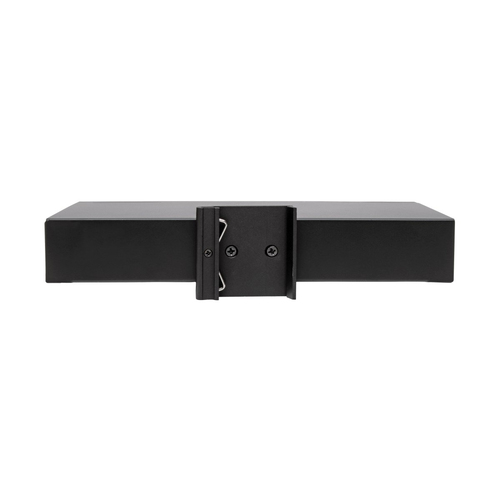

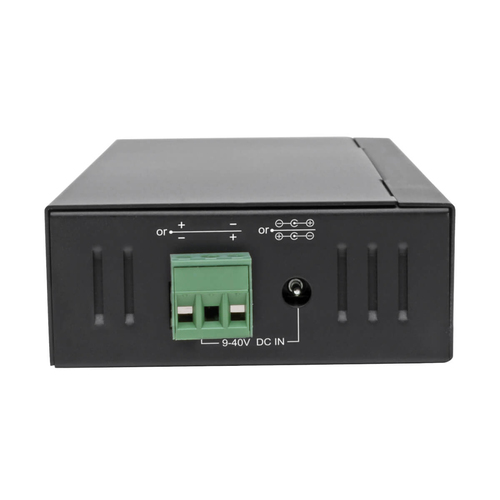

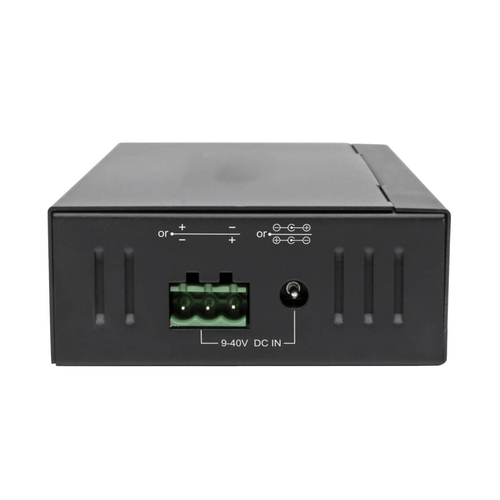

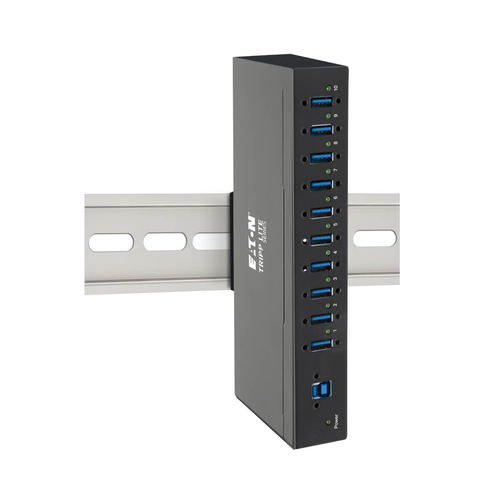

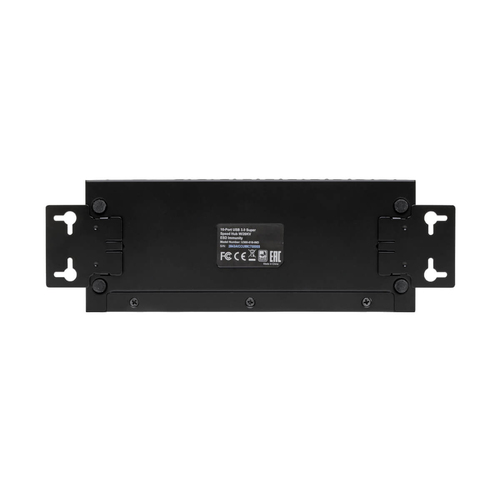

The U360-010-IND requires no software or drivers to download and install. It draws power from the connected computer through the included USB cable. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal, or connect a compatible 9–40V DC LPS power supply (not included) to a standard AC outlet. The hub mounts easily to a wall or DIN rail using the included hardware.

Ports & interfaces
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 10
Ports quantity 10
Terminal block port Yes
Features
Data transfer rate 5000 Mbit/s
Product colour Black
Housing material SGCC
Overcurrent protection Yes
LED indicators Yes
Plug and Play Yes
Country of origin Malaysia
Certification CE, FCC, RoHS, REACH
Power
Power consumption (max) 51.3 W
Input voltage 100 - 240 V
Input current 0.6 A
AC input frequency 50 - 60 Hz
Output voltage 9 - 40 V
Output current 3 A
USB charging port Yes
Weight & dimensions
Width 201 mm
Depth 81 mm
Height 33 mm
Weight 430 g
Packaging data
Package width 114.3 mm
Package depth 228.6 mm
Package height 66 mm
Package weight 640 g
Package type Box

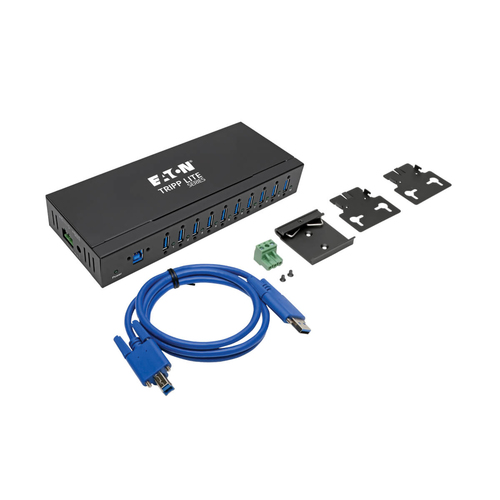

Packaging content
Cables included USB
Wall mounting kit Yes
Manual Yes
Terminal block included Yes
DIN rail kit included Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating temperature (T-T) 32 - 104 °F
Storage temperature (T-T) -10 - 55 °C
Operating relative humidity (H-H) 5 - 90%
Logistics data
Master (outer) case width 246.4 mm
Master (outer) case length 350.5 mm
Master (outer) case height 256.5 mm
Master (outer) case gross weight 6.94 kg
Products per master (outer) case 10 pc(s)
Master (outer) case GTIN (EAN/UPC) 10037332231243
Harmonized System (HS) code 84719000
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
