Eaton Tripp Lite series 2-Port DisplayPort 1.1/USB KVM Switch with Audio/Video, Built-In Cables, USB Peripheral Sharing - KVM / audio / USB switch - 2 x KVM / audio / USB - 1 local user - desktop
- Brand
- Eaton
- Product code
- B032-DPUA2
- SKU
- CQU7NIENP3W55
- Supports UHD resolutions up to 4096 x 2160 (@ 30 Hz) for crystal-clear 4K x 2K video

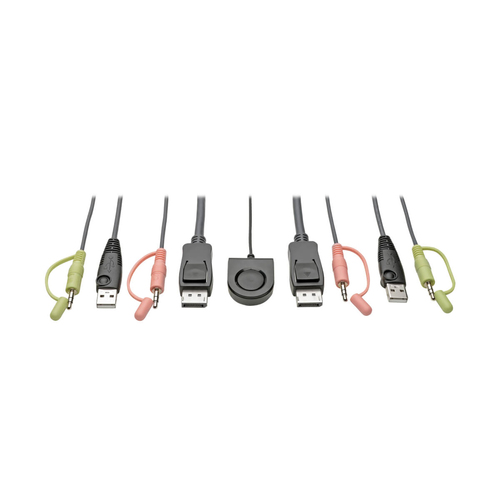

- Dual 4-ft. (1.22 m) DisplayPort, USB and 3.5 mm audio cables are built right in for instant use
- Built-in remote port selector allows fast, easy toggling between computers
- USB console mouse port also accepts powered USB hub for connecting peripherals
- Widely compatible KVM switch works with Windows, Mac and Linux operating systems
Product Info

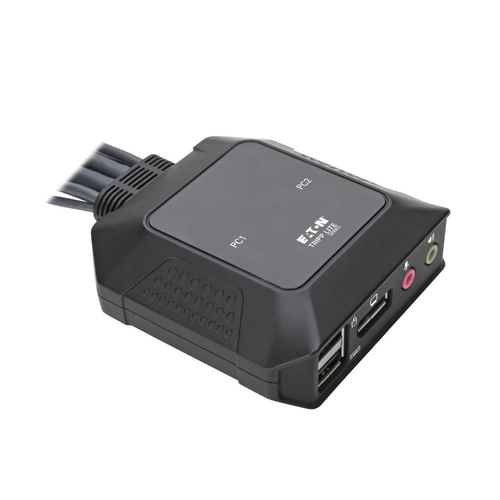

Connects 2 Computers to a Single Monitor, Keyboard and Mouse
This compact two-port NetDirector® KVM switch lets you access and control two desktop, laptop or notebook computers at the same time. Both computers share one DisplayPort monitor, USB keyboard and USB mouse, which saves space on your desk or workspace. The B032-DPUA2 works with Windows, Mac and Linux.

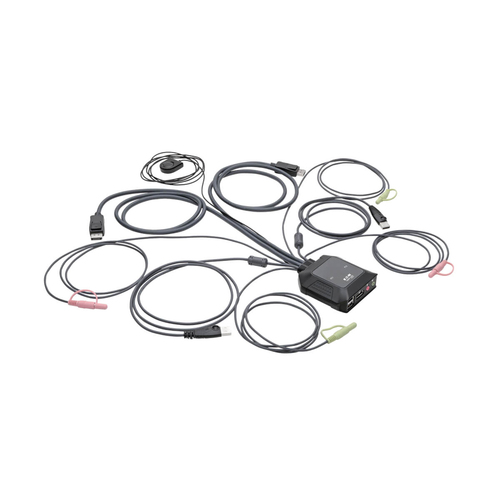

Built-In Cables for Fast and Simple Setup

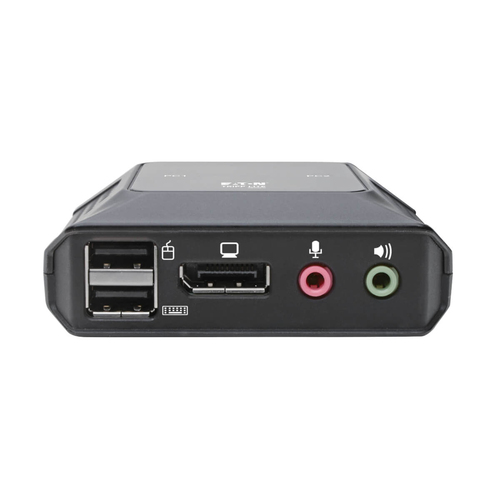

All necessary cables are built right into the KVM switch. Connect your monitor, keyboard, mouse, and speakers to the switch’s console ports. Then, connect the DisplayPort, USB and 3.5 mm audio cables to the appropriate ports on your computers. The plug-and-play KVM switch requires no software, drivers or external power supply, so you can connect and use it immediately. Use the built-in remote port selector for quick and easy toggling between computers. In addition, the remote port selector allows you to enable/disable your monitor's auto-detection mode preventing lost productivity while waiting for your monitor to turn back on. Green LEDs indicate which computer is currently selected.
Connect a USB Hub to Share Peripherals between Computers
By connecting a powered USB hub (not included) to the USB console mouse port, you’ll be able to share multiple USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between the two computers.
Transmits Crystal-Clear 4K Video and Digital Audio
To send digital audio and Ultra High Definition video to a 4K-ready DisplayPort television, projector or monitor, connect the corresponding port to the display using a DisplayPort cable (such as P580-Series DP cables, sold separately). The KVM switch supports Ultra HD video resolutions up to 4096 x 2160 (4K x 2K) at 30 Hz.
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPort version | 1.1 |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Number of users | 1 user(s) |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Wired remote switch | No |
| Cable length | 1.2 m |
| LED indicators | Yes |
| Certification | CE, FCC, REACH |
| Display | |
| Built-in display | No |
| Power | |

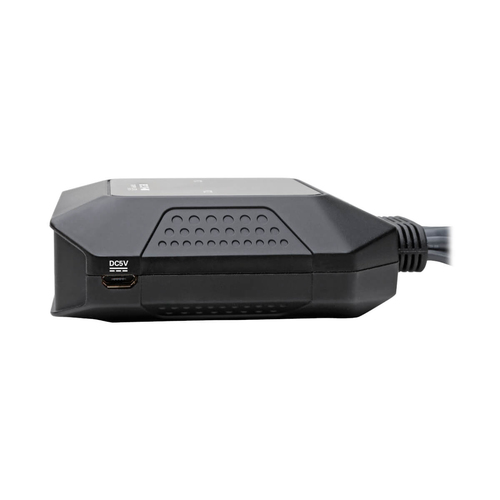

| Power source | DC |
| USB powered | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 84.1 mm |
| Depth | 83.3 mm |
| Height | 30.5 mm |
| Weight | 350 g |
| Packaging data | |
| Package width | 239 mm |
| Package depth | 175 mm |
| Package height | 63.5 mm |
| Package weight | 680 g |
| Package type | Box |
| Packaging content | |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 497.1 mm |
| Master (outer) case length | 327.9 mm |
| Master (outer) case height | 198.1 mm |
| Master (outer) case gross weight | 5.81 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332235975 |
| Country of origin | China |
