Eaton Tripp Lite Series PDU Switched 7.4kW 230V 16 C13 2 C19 2 IEC309 32A Blue Cords 2U - Power distribution unit (rack-mountable) - 32 A - AC 200/208/220/230/240 V - 7.7 kW - 1-phase - Ethernet - input: IEC 60309 32A - output connectors: 18 (power IEC 60320 C13, IEC 60320 C19) - 2U - 19" - 3 m cord - TAA Compliant
- Brand
- Eaton
- Product code
- PDUMH32HVATNET
- SKU
- CU62AJUE6LN87
- Single-phase IEC309 200-240V 32A Blue (2P+E) input
- 16 C13 and 2 C19 230V switched outlets in 2 breakered load banks
- Automatic transfer switching within 1–5 ms
- Ethernet network interface for remote access

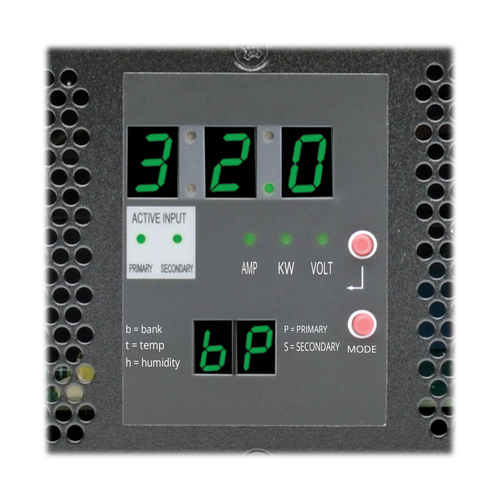

- Digital LED display for real-time status and current monitoring
Product Info

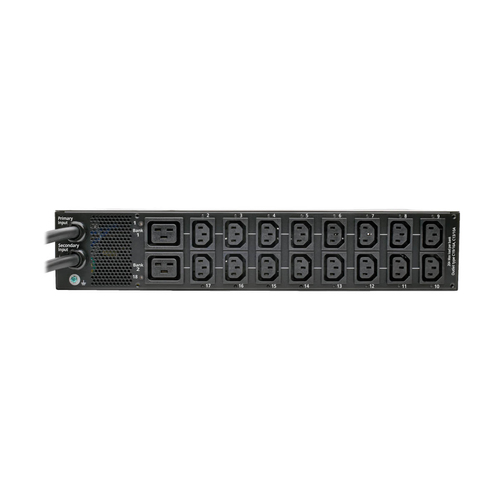

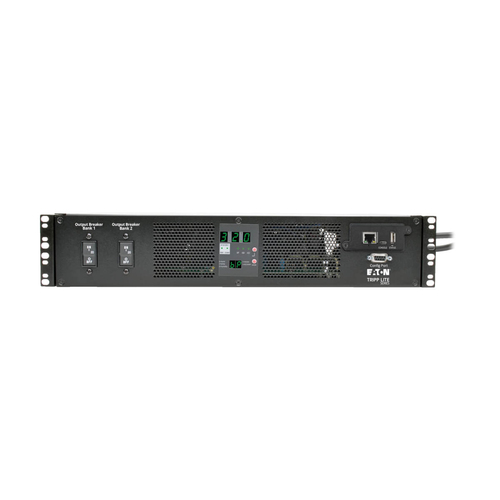

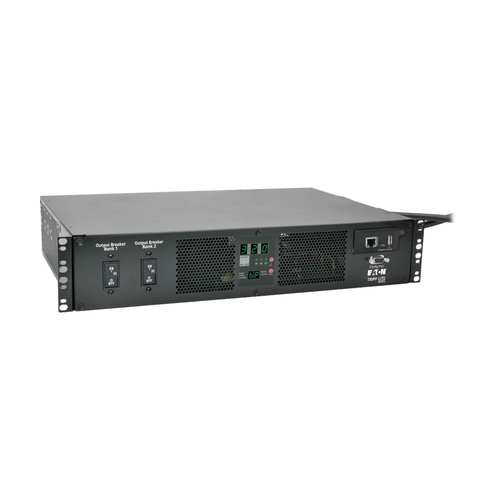

The PDUMH32HVATNET 7.7kW Single-Phase 200-240V Switched Automatic Transfer Switch / ATS PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard racks and features 18 switched outlets (16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker.

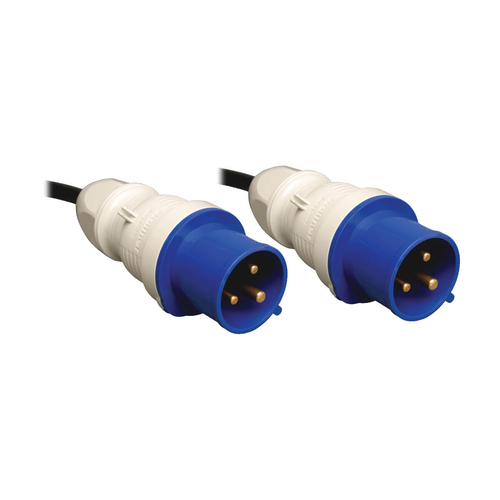

Dual 3-meter input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in LX Platform network management interface. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separate) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
| Design | |
|---|---|
| PDU types | Switched |
| Type | Single-phase |
| Rack capacity | 2U |
| Mounting | Horizontal |
| Housing material | Metal |
| Product colour | Black |
| Display | LCD |
| Ports & interfaces | |
| AC outlets quantity | 18 AC outlet(s) |
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| LED indicators | Yes |
| Cable length | 3 m |
| Management features | |
| Supported network protocols | HTTP, HTTPS, PowerAlert®, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP |
| Power | |
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 200-240 V |
| Maximum power | 7700 W |
| Weight & dimensions | |
| Width | 444.5 mm |
| Depth | 317.5 mm |
| Dimensions (WxDxH) | 444 x 317 x 88 mm |
| Height | 88.9 mm |
| Weight | 6.21 kg |
| Packaging data | |
| Package dimensions (WxDxH) | 424 x 505 x 198 mm |
| Package weight | 9.12 kg |
| Package width | 457.2 mm |
| Package depth | 497.8 mm |
| Package height | 198.1 mm |
| Packaging content | |
| Manual | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Country of origin | Taiwan |
| Products per master (outer) case | 1 pc(s) |
