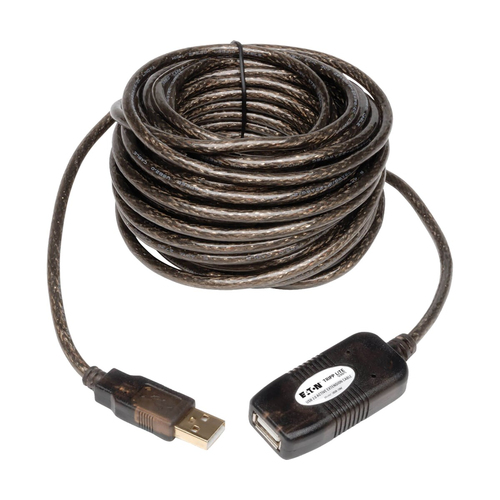

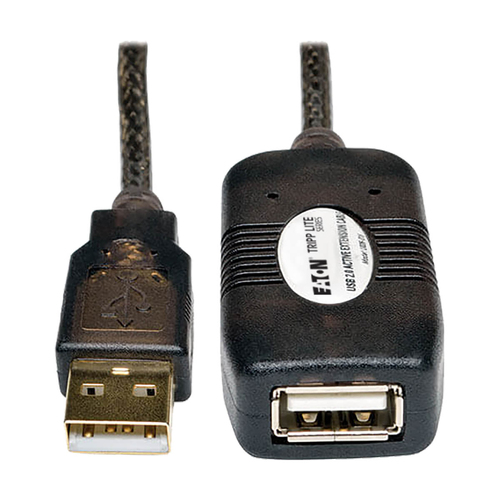

Tripp Lite U026-016 USB cable

Eaton Tripp Lite Series 16ft USB 2.0 Extension Cable Active USB-A Male / USB-A Female 16' - USB extension cable - USB (F) to USB (M) - USB 2.0 - 4.88 m - active - black


Brand
TRIPP LITE
Product code
U026-016
SKU
XPGL3GJNEJE89
EAN/GTIN
037332120588
  • Premium double-shielded cables with tinned copper braid and aluminum mylar foil feature twisted 28/22 AWG data/power lines
  • Gold plated contacts provide superior conductivity for low and high speed devices (1.5 to 480 Mbps.)
  • Active extension cable regenerates USB signal for extra-long distances: daisy-chain up to 80-ft. in most applications
€29.88 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

This USB 2.0 Extension Cable is a bus-powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. USB limits a cable's length to 16 feet (4.9 meters). Any length above 16 feet requires the use of an active cable such as this one. This cable has a signal booster built in. The overall cable length can be extended up to 80 feet (24.4 meters) by daisy-chaining up to five of these active cables. The U026-016 provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply or need to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-016. Use a standard six-foot (1.8 meters), 10-foot (3.1 meters) or 15-foot (4.6 meters) USB cable to reach the desired distance.

Features
USB version USB 2.0
Connector 1 USB A
Connector 2 USB A
Connector gender Male/Female
Connector 1 gender Male
Connector 2 gender Female
Connector 1 form factor Straight
Connector 2 form factor Straight
AWG wire size 28/20
Connector contacts plating Gold
Cable shielding Aluminum mylar foil
Maximum data transfer rate 480 Mbit/s
Maximum data transfer rate 0.48 Gbit/s
Product colour Black
Weight & dimensions
Cable length 4.88 m
Packaging data
Package width 114.3 mm
Package depth 149.9 mm
Package height 25.4 mm
Package weight 180 g
Logistics data
Products per master (outer) case 10 pc(s)
Master (outer) case GTIN (EAN/UPC) 10037332120585
Master (outer) case width 279.4 mm
Master (outer) case length 355.6 mm
Master (outer) case height 101.6 mm
Master (outer) case gross weight 1.86 kg
Harmonized System (HS) code 84733080
Country of origin China
Other features
Compliance certificates RoHS
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
