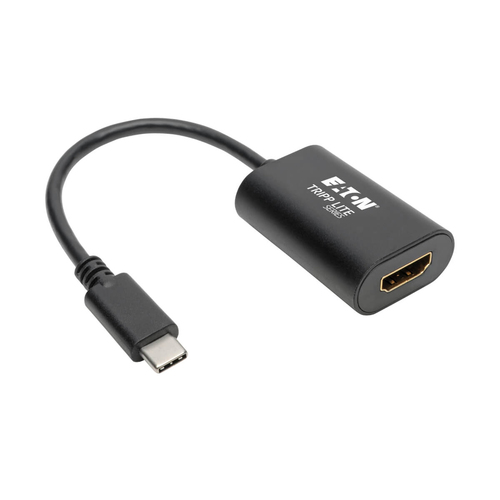

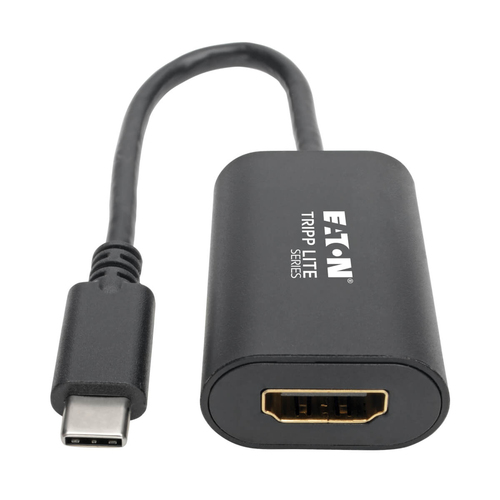

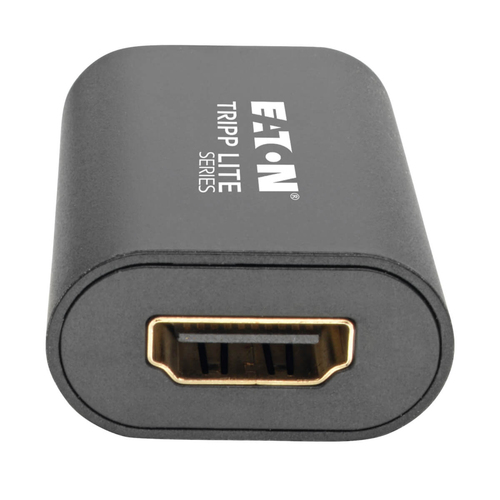

Eaton Tripp Lite Series USB C to HDMI Video Adapter Converter 4Kx2K M/F, USB-C to HDMI, USB Type-C to HDMI, USB Type C to HDMI 6in - External video adapter - USB-C 3.1 - HDMI - black
- Brand
- TRIPP LITE
- Product code
- U444-06N-HD4K6B
- SKU
- DKTG8V9SI2UQI
- EAN/GTIN
- 037332203366
- Supports USB DisplayPort Alternate Mode for transmitting audio/video
- Supports UHD resolutions up to true 4K @ 60 Hz for crystal-clear video
- Supports 7.1-channel surround sound
- Reversible USB-C plug connects in either direction
- Plug-and-play operation with no software or drivers required
Product Info

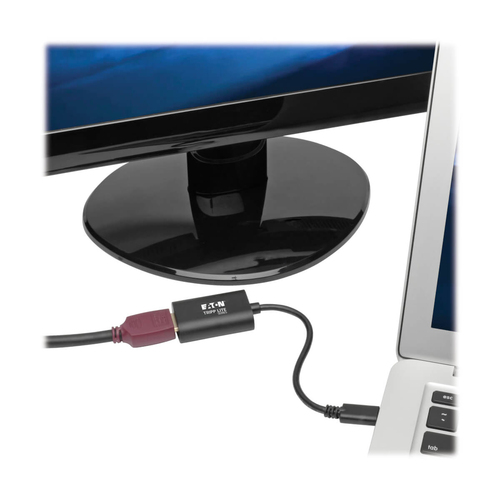

Connects an HDMI Display to Your USB-C or Thunderbolt 3 Device
Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
Ideal for giving video presentations, editing multiple documents or streaming video for digital signage
Meets HDCP 2.2 specifications
Common Applications
Extends video from your primary display to another
Duplicates the same video on 2 displays
Converts a secondary display to your primary display
Crystal-Clear True 4K Video and Digital Audio
Supports UHD video resolutions up to 4K x 2K (4096 x 2160) @ 60 Hz, as specified in HDMI 2.0
Supports 24-bit Deep Color (8 bits per channel)
Supports 7.1-channel surround sound
Supports per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)

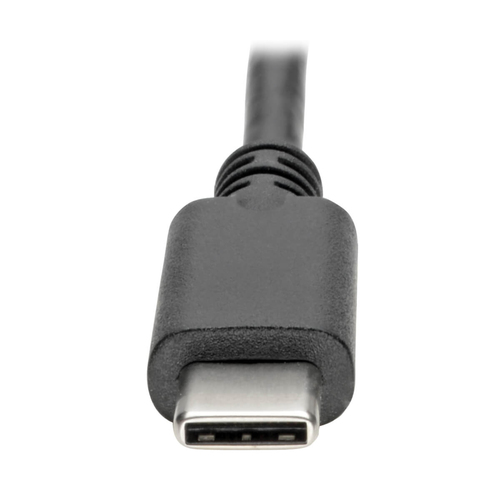

Built-In Cable with Reversible USB-C Connector
Fumble-free reversible USB-C plug connects in either direction for quick connection every time
Ready for Instant Use
Plug-and-play operation with no software, drivers or external power required
Half the footprint of a credit card for easy carrying in a pocket, purse or laptop bag
Backward compatible with non-4K displays
| Features | |
|---|---|
| Connector contacts plating | Nickel/Gold |
| Cable length | 0.1524 m |
| Connector 1 | USB Type-C |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Maximum resolution | 4096 x 2160 pixels |
| Data transfer rate | 5 Gbit/s |
| Product colour | Black |
| Country of origin | China |
| Certification | FCC, CE |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Cable diameter | 4 mm |
| Weight | 20 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 145 mm |
| Package depth | 76.2 mm |
| Package height | 26.9 mm |
| Package weight | 50 g |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 290.1 mm |
| Master (outer) case length | 160 mm |
| Master (outer) case height | 95 mm |
| Master (outer) case gross weight | 700 g |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332203363 |
