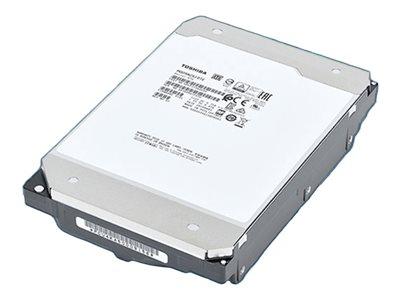

Toshiba MG09 Series MG09SCA12TE - Hard drive - 12 TB - internal - 3.5" - SAS 12Gb/s - 7200 rpm - buffer: 512 MB
- Brand
- TOSHIBA HDD
- Product code
- MG09SCA12TE
- SKU
- K536TVKJIQZDN
- EAN/GTIN
- 4260557513033
- Hard drive
- 12 TB
- internal
- 3.5"
- SAS 12Gb/s
- 7200 rpm
- buffer: 512 MB
- Weight: 0.68 KG
Product Info
The Toshiba MG09 Series hard drive is designed to meet the rigorous demands of continuous operation in challenging environments. With a 12 TB capacity and a 512 MB buffer size, it offers ample storage and efficient data handling for enterprise-level requirements. This hard drive incorporates technologies such as Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) and Conventional Magnetic Recording (CMR), enhancing its storage density and data integrity. Its helium sealed-drive design, coupled with Persistent Write Cache technology, ensures reliable performance and efficient operation. With a workload capacity of up to 550 TB per year and an impressive MTBF of 2,500,000 hours, the Toshiba MG09 Series is a reliable choice for data centers and businesses seeking high-capacity, durable storage solutions.
Description
Robust durability
Engineered for resilience, this hard drive boasts a helium sealed-drive design and a high tolerance for shock and vibration, ensuring reliable performance in demanding environments.
High-capacity storage
With a 12 TB capacity and advanced format 512e, this hard drive meets the needs of extensive storage requirements, making it ideal for data centers and high-load operations.
Efficient operation
Features like Persistent Write Cache technology and a low power consumption mode during read/write operations contribute to efficient data management and reduced operational costs.
Advanced recording technology
Incorporating Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) and Conventional Magnetic Recording (CMR), it offers superior data integrity and storage density.
| General | |
|---|---|
| Buffer Size | 512 MB |
| Form Factor | 3.5" |
| Weight | 690 g |
| Capacity | 12 TB |
| Device Type | Hard drive - internal |
| Interface | SAS 12Gb/s |
| Features | 24x7 availability, Conventional magnetic recording (CMR), Flux Control Microwave Assisted Magnetic Recording (FC-MAMR), Helium Sealed-Drive Design, workload up to 550 TB per year, advanced format 512e, Persistent Write Cache technology |
| Power | |
| Power Consumption | 7.95 Watt (read/write)3.76 Watt (active idle) |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 55 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Shock Tolerance (operating) | 70 g @ 2 ms |
| Shock Tolerance (non-operating) | 250 g @ 2 ms |
| Vibration Tolerance (non-operating) | 3 g @ 5-500 Hz |
| Vibration Tolerance (operating) | 0.75 g @ 5-300 Hz |
| Performance | |
| Spindle Speed | 7200 rpm |
| Drive Transfer Rate | 12 Gbit/s (external) |
| Internal Data Rate | 268 MBps |
| Reliability | |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 10 per 10^16 |
| Load / Unload Cycles | 600,000 |
| MTBF | 2,500,000 hours |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SAS 12 Gb/s |
