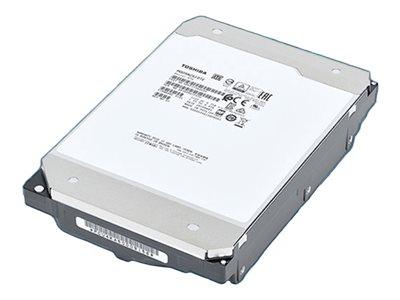

Toshiba MG09 Series MG09ACA14TE - Hard drive - 14 TB - internal - 3.5" - SATA 6Gb/s - 7200 rpm - buffer: 512 MB
- Brand
- TOSHIBA HDD
- Product code
- MG09ACA14TE
- SKU
- K5Y04U09GYYZR
- EAN/GTIN
- 4260557512999
- Hard drive
- 14 TB
- internal
- 3.5"
- SATA 6Gb/s
- 7200 rpm
- buffer: 512 MB
- Weight: 0.70 KG
Product Info
The Toshiba MG09 Series hard drive is engineered to meet the rigorous demands of enterprise storage environments. Offering a substantial 14 TB capacity, this internal hard drive is perfect for data centers requiring high-volume storage with continuous availability. Its helium sealed-drive design not only improves durability but also optimizes performance, making it an efficient choice for businesses. With a data transfer rate of 600 MBps and a 7200 rpm spindle speed, it ensures quick and reliable access to data. Additionally, the drive's advanced features, such as Conventional magnetic recording (CMR) and Flux Control Microwave Assisted Magnetic Recording (FC-MAMR), further enhance its performance and reliability. Designed for durability, it boasts an impressive MTBF of 2,500,000 hours, making it a dependable solution for critical data storage needs.
Description
Enhanced durability
Designed for intensive 24x7 operation, the Toshiba MG09 Series hard drive ensures reliability with an impressive MTBF of 2,500,000 hours. Its helium sealed-drive design not only enhances its durability but also optimizes power efficiency during read/write operations.
High capacity storage
With a generous 14 TB capacity, this hard drive meets the demands of high-volume storage environments. It's equipped with advanced format 512e and Persistent Write Cache technology, providing ample space and data integrity for enterprise-level workloads.
Efficient performance
Achieve smooth and fast data transfer rates of up to 600 MBps, thanks to the Serial ATA-600 interface and a 512 MB buffer size. The drive's 7200 rpm spindle speed and internal data rate of 268 MBps ensure quick access to stored information, making it ideal for demanding data center applications.
| General | |
|---|---|
| Buffer Size | 512 MB |
| Form Factor | 3.5" |
| Weight | 705 g |
| Device Type | Hard drive - internal |
| Capacity | 14 TB |
| Interface | SATA 6Gb/s |
| Features | Advanced format 512e, 24x7 availability, Conventional magnetic recording (CMR), Flux Control Microwave Assisted Magnetic Recording (FC-MAMR), Helium Sealed-Drive Design, Persistent Write Cache technology, workload up to 550 TB per year |
| Power | |
| Power Consumption | 7.96 Watt (read/write)3.77 Watt (active idle) |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 55 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Sound Emission | 20 dBA |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Shock Tolerance (operating) | 70 g @ 2 ms |
| Shock Tolerance (non-operating) | 250 g @ 2 ms |
| Vibration Tolerance (non-operating) | 3 g @ 5-500 Hz |
| Vibration Tolerance (operating) | 0.75 g @ 5-300 Hz |
| Performance | |
| Spindle Speed | 7200 rpm |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 268 MBps |
| Reliability | |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 10 per 10^16 |
| Load / Unload Cycles | 600,000 |
| MTBF | 2,500,000 hours |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SATA 6 Gb/s |
