Crestron Saros® 6.5 in. 2-Way In-Ceiling Speaker, White Textured, Single (must be ordered in multiples of 2)

Product Info

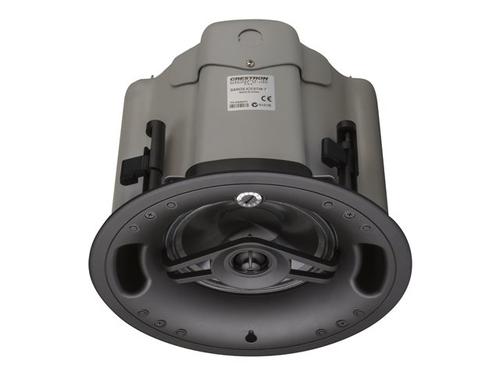

The Saros Express ICE6T model is a 2-way in-ceiling speaker featuring a 6-1/2 inch woofer and wide-dispersion, horn-loaded 1 inch dome tweeter. A built-in 30 Watt multi-tap transformer allows for use with 70 and 100 volt distributed speaker systems. Power handling at 8 ohms is 60 watts (program), with a frequency response from 75 Hz to 20 kHz (±3 dB).

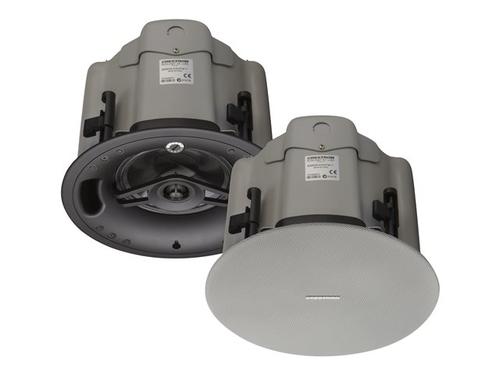

Like its more expensive sibling, the Saros IC6T, the Saros Express ICE6T is smartly designed for quick and easy installation and reliable performance. Its "zero-bezel" frameless grille achieves an unobtrusive and contemporary appearance well-suited for use in restaurants and night clubs, retail spaces, houses of worship, convention facilities, universities, and office buildings. Installing the grille requires no hardware or tools, utilizing powerful magnets to hold it in place. A safety tether is included to prevent the grille from ever falling from the ceiling.

Unitized construction of the speaker enclosure simplifies specification and installation for use in existing ceilings. Mounting the speaker is facilitated using rugged, 2-step toggle clamps integrated into the enclosure. Each toggle clamp offers two positions to accommodate standard and extra thick surfaces up to 2.4 inches (61 mm). A tile bridge is included to provide proper support when installed in a typical drop-tile ceiling. The tile bridge is adjustable to enable off-center speaker positioning, and can be folded to fit through the speaker cutout in blind-mount situations.

An integral metal back can is employed to meet the requirements for installation in an environmental air-handling (plenum) space. The wiring connection is accessible behind a rear cover panel by removing a single screw. Top and side knockouts are provided on the cover panel to accommodate 1/2" or 3/4" flexible conduit. A cable clamp is also provided. Connecting the wiring behind the cover panel is facilitated using a detachable screw terminal block with provisions for easy parallel wiring in a multi-speaker application. Setting the 70/100V transformer tap is performed via a screwdriver-adjustable control located on the front baffle behind the grille.

Description

Robust audio performance The ICE6T incorporates a 6. 5" woofer driver and a 0. 98" tweeter driver, providing a rich and balanced audio experience suitable for various settings. Flexible installation options With its in-ceiling mounting capability and dual transformer options, the speaker can be installed in diverse environments to meet specific audio requirements. Durable and adaptable design Built from zinc-plated steel, the speaker features a paintable grille that allows customization to match different aesthetics. Advanced connectivity features The ICE6T is designed with wired connectivity, ensuring stable sound transmission and reliability in performance. Effective frequency management The speaker's crossover frequency of 2500 Hz allows for precise distribution of sound between the woofer and tweeter, enhancing overall audio clarity.
