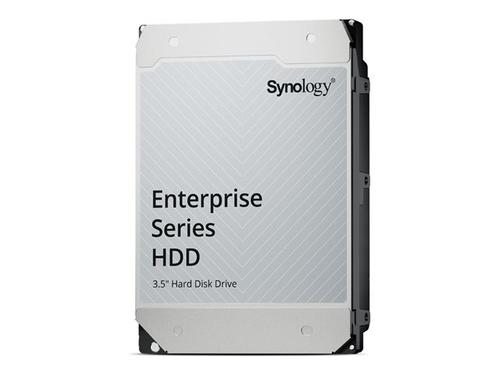

Synology HAT5310 - Hard drive - 20 TB - internal - 3.5" - SATA 6Gb/s - 7200 rpm
- Brand
- Synology
- Product code
- HAT5310-20T
- SKU
- I6G4RFCQOHD6Y
- Hard drive
- 20 TB
- internal
- 3.5"
- SATA 6Gb/s
- 7200 rpm
- Weight: 0.72 KG
Product Info
The Synology HAT5310 internal hard drive offers reliability and performance for storage solutions. With a 3.5" form factor and a Serial ATA-600 interface, it integrates seamlessly into desktops and servers, supporting fast data transfer rates. Its 7200 rpm spindle speed enables quick access to stored information, suitable for demanding applications. Designed to operate effectively in temperatures from 5°C to 60°C, and capable of withstanding storage temperatures from -40°C to 70°C, the HAT5310 is built for durability in various environments. Its compliance with a wide range of standards, including BSMI, EAC, ICES, KC, RCM, RoHS, TUV, UKCA, and UL, attests to its reliability and broad system compatibility.
Description
Robust durability
Designed to withstand the rigors of both operation and non-operation, the Synology HAT5310 hard drive features shock and vibration tolerance that ensures reliability in demanding environments. With operating shock tolerance at 2 ms and non-operating shock tolerance also at 2 ms, this hard drive is built to last.
High temperature resilience
The Synology HAT5310 is engineered to perform reliably in a wide range of environmental conditions. It operates optimally at temperatures up to 60°C and can withstand storage temperatures as high as 70°C, making it an ideal choice for systems exposed to high temperatures.
Extensive compatibility
This internal hard drive meets a variety of compliance standards, including BSMI, EAC, ICES, KC, RCM, RoHS, TUV, UKCA, and UL, ensuring its compatibility and reliability in a wide range of systems and regulatory environments.
General | |
---|---|
Form Factor | 3.5" |
Depth | 147 mm |
Weight | 720 g |
Height | 26.1 mm |
Capacity | 20 TB |
Device Type | Hard drive - internal |
Width | 101.85 mm |
Interface | SATA 6Gb/s |
Features | Helium Sealed-Drive Design, 512MB cache |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
Miscellaneous | |
Compliant Standards | WEEE, RCM, BSMI, KC, EAC, UL, TUV, ICES, UKCA, RoHS, Morocco |
Power | |
Power Consumption | 4.38 Watt (idle)8.11 Watt (average) |
Environmental Parameters | |
Max Operating Temperature | 60 °C |
Min Operating Temperature | 5 °C |
Max Storage Temperature | 70 °C |
Min Storage Temperature | -40 °C |
Humidity Range Operating | 5 - 90% RH (non-condensing) |
Shock Tolerance (operating) | 490 g @ 2 ms |
Shock Tolerance (non-operating) | 1960 g @ 2 ms |
Performance | |
Spindle Speed | 7200 rpm |
Reliability | |
24x7 Operation | Yes |
MTBF | 2,500,000 hours |
Expansion & Connectivity | |
Compatible Bay | 3.5" |
Interfaces | 1 x SATA 6 Gb/s |
