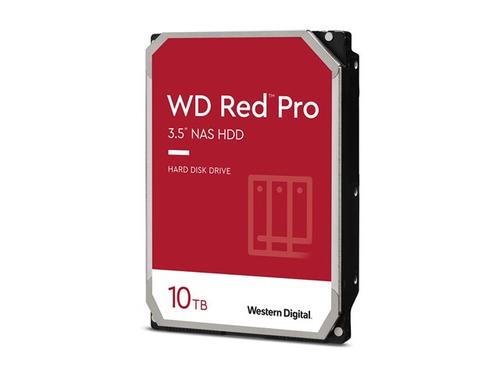

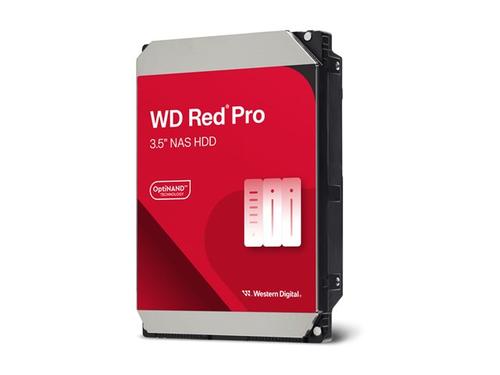

WD Red Pro WD103KFBX

HDD Desk Red Pro 10TB 3.5 SATA 512MB


Brand
Western Digital
Product code
WD103KFBX
SKU
NRHGGZSI2NYV9
EAN/GTIN
718037877310
  • Hard drive
  • Enterprise
  • 10 TB
  • internal
  • 3.5"
  • SATA 6Gb/s
  • 7200 rpm
  • buffer: 512 MB
  • Weight: 0.73 KG
€320.48 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

Joining the original color of NAS, WD Red Pro continues the formula of success that has led the WD Red product family by adding support beyond consumer and small business markets into medium and large 8-16 bay business storage systems. WD Red Pro hard drives integrate WD's exclusive technology, NASware, to provide unparalleled support for drive compatibility, reliability, and performance.

Description
Professional solutions

Designed specifically with SMB customers in mind the WD Red family has expanded with the addition of WD Red Pro, which is available for the 8 to 16 bay medium to large-scale NAS environments. With capacities up to 4 TB, WD Red Pro was engineered to handle the increased workloads from your business.

Exclusive NASware technology

The exclusive advanced firmware technology built into every WD Red Pro drive, NASware enables seamless integration, robust data protection and optimal performance for systems operating in the demanding NAS environment.

Experienced in NAS

WD Red is a reflection of the most extensive NAS partner compatibility testing list that is available on the market. That means when you buy a NAS enclosure, you can trust that WD Red will be the most compatible drive available.

Vibration protection

In combination with 3D Active Balance Plus, WD Red Pro also features hardware vibration compensation technology which monitors the drive to correct both linear and rotational vibration in real time, further increasing drive reliability.

Enhanced accuracy for NAS

For overall enhanced accuracy for NAS, WD Red Pro is also equipped with dual actuator technology which improves positional accuracy over the data tracks and head positioning. StableTrac technology then secures the motor shaft at both ends to reduce system-induced vibration and stabilize the drive platters for accurate tracking during read and write operations. Both technologies are important for larger 8 to 16 bay NAS environments.

8 to 16 Bay Shock protection

WD Red Pro is equipped with a multi-axis shock sensor that automatically detects subtle shock events and dynamic fly height technology which adjusts each read-write function to compensate and protect the data. This combination of technology further protects the drives in large 8 to 16 bay NAS environments and increases drive reliability.

Extended drive testing

The 8 to 16 bay NAS environment is very demanding on a hard drive with added vibration, heat and other factors. This is why every WD Red Pro drive is shipped with extended thermal cycle burn-in testing which ensure each drive for extended reliable operation.

Error recovery prevention

Built specifically for RAID and NAS environments, WD Red Pro drives come equipped with error recovery controls as part of NASware, which prevents the drive from fallout in RAID applications.

General
Buffer Size 512 MB
Form Factor 3.5"
Weight 750 g
Width 101.6 mm
Depth 147 mm
Height 26.1 mm
Capacity 10 TB
Device Type Hard drive - internal
Interface SATA 6Gb/s
Features Workload up to 550 TB per year, Conventional magnetic recording (CMR), Air Drive Design, Advanced Format technology, Native Command Queuing (NCQ), RV Sensor, 24x7 continuous operation, Dynamic fly height technology, Multi-axis shock sensor, NASware 3.0 technology, 3D Active Balance Plus, Error Recovery Control
Manufacturer Warranty
Service & Support Limited warranty - 5 years
Miscellaneous
Compliant Standards RoHS, BSMI, ICES-003, NMB-003, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB Scheme, TUV, UL
Power
Power Consumption 8.8 Watt (read/write)6.1 Watt (idle)0.3 Watt (sleep)
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 65 °C
Max Storage Temperature 70 °C
Min Storage Temperature -40 °C
Sound Emission 34 dBA
Shock Tolerance (operating) 70 g @ 2 ms
Shock Tolerance (non-operating) 250 g @ 2 ms
Performance
Spindle Speed 7200 rpm
Drive Class Enterprise
Drive Transfer Rate 600 MBps (external)
Internal Data Rate 267 MBps
Reliability
24x7 Operation Yes
Non-Recoverable Errors 10 per 10^15
Load / Unload Cycles 600,000
MTBF 2,000,000 hours
Expansion & Connectivity
Compatible Bay 3.5"
Interfaces 1 x SATA 6 Gb/s
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
