Eaton Tripp Lite Series VGA over Cat5/Cat6 Video Extender Kit USB Powered up to 500ft TAA/GSA - Video extender - over CAT 5/6 - up to 152 m
- Brand
- Eaton
- Product code
- B130-101-U
- SKU
- VEJXEAMD2PZAN
- Extends a 1920 x 1440 (60 Hz) signal up to 350 ft. (106.68 m), or a 1024 x 768 (60 Hz) signal up to 500 ft. (152.4 m), when using 24 AWG, Solid Wire Cat5e/6 cable, such as N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
- USB-powered...no external AC power needed
- Built-in VGA dongles...no need for additional VGA cables
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Product Info

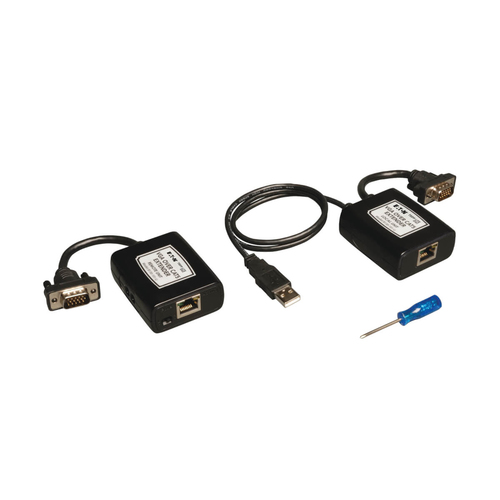

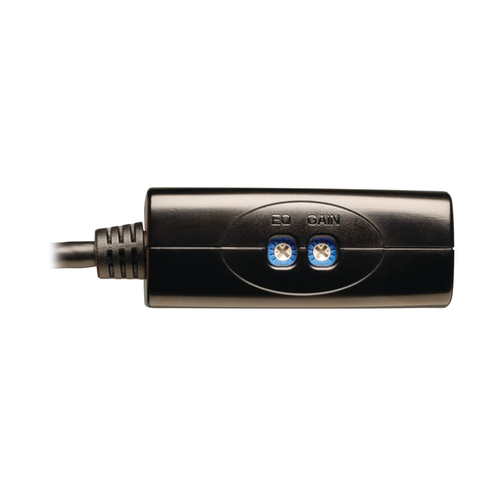

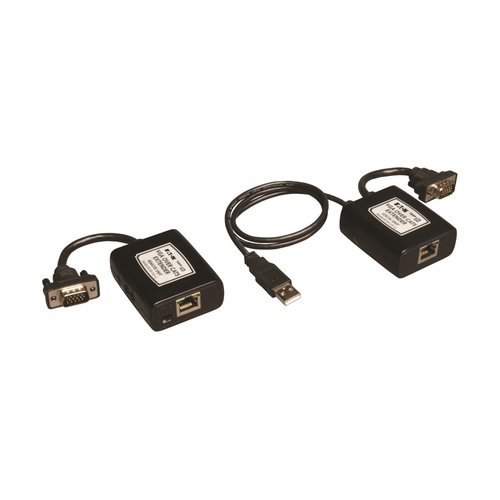

This USB-powered VGA over Cat5 Extender Kit allows you to extend a 1920 x 1440 (60 Hz) signal up to 350 feet (106.7 meters) or a 1024 x 768 (60 Hz) signal up to 500 feet (152.4 meters) when using 24 AWG Solid Wire Cat5e/6 cable, such as N022-01K-GY (Cat5) and N222-01K-GY (Cat6). Ideal for digital signage applications, classroom or auditorium projectors, and more. Extender draws needed power from a USB connection at the computer...no external AC adapters required. Receiver unit includes gain adjustment for brightness/darkness control and equalization adjustment for sharp, clear images. VGA "dongles" allow for direct attachment to video equipment...no additional VGA cables required. Kit includes a transmitter with VGA and USB (power) pigtails and a receiver with VGA pigtail. Also included is a small adjustment screwdriver for the EQ and GAIN controls. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
| Features | |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1920 x 1440 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 152.4 m |
| Supported graphics resolutions | 1920 x 1440, 1024 x 768 (XGA) |
| Product colour | Black |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| RJ-45 input ports | 2 |
| VGA (D-Sub) input ports | 2 |
| DC-in jack | No |
| Power | |
| External power adapter | No |
| Packaging data | |
| Package width | 200.7 mm |
| Package depth | 142.2 mm |
| Package height | 43.2 mm |
| Package weight | 200 g |
| Packaging content | |
| Manual | Yes |
| Technical details | |
| Country of origin | Taiwan |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 467.4 mm |
| Master (outer) case length | 226.1 mm |
| Master (outer) case height | 309.9 mm |
| Master (outer) case gross weight | 5.5 kg |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332166606 |
