Broadcom NetXtreme N2100G - 2x 100GbE OCP 3.0
- Brand
- Broadcom
- Product code
- BCM957508-N2100G
- SKU
- 0SF0M4U5EPMAC
- 2x 100GbE OCP 3.0
- Weight: 0.12 KG
Product Info

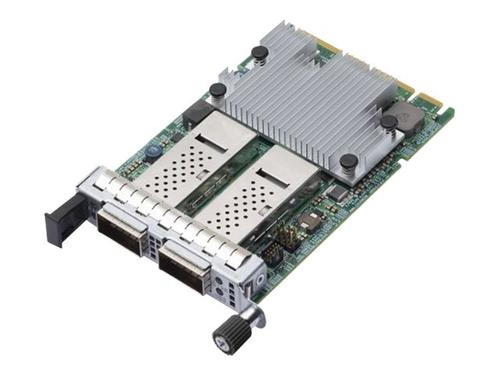

The Broadcom BCM957508-N2100G is a dual-port 100 Gb/s PCI Express 4.0 x16 Network Adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with two QSFP56 network connectors. The adapter supports QSFP56/QSFP28/QSFP+ optical modules and copper direct-attach cables. The network adapter uses the Broadcom BCM57508 200GbE MAC controller with an integrated dual-channel 100GbE SFI transceiver.
Description
Enhanced connectivity
Equipped with two 100Gb Ethernet QSFP56 ports, the Broadcom NetXtreme E-Series N2100G network adapter ensures high-speed, reliable connectivity for demanding data center environments.
Advanced networking features
This network adapter supports a wide range of features such as Data Center Bridging (DCB), Enhanced Transmission Selection (ETS), and RDMA over Converged Ethernet (RoCE), enhancing data efficiency and network management.
Optimized for virtualization
With support for technologies like Single Root I/O Virtualization (SR-IOV) and VMware NetQueue, the N2100G facilitates efficient virtual machine traffic management, making it ideal for virtualized data centers.
Energy efficient
Operating at a power consumption of just 19. 3 watts, the N2100G is designed to maximize performance while minimizing energy use, contributing to a greener data center.
Robust security and management features
Features like Wake On LAN (WOL) and iSCSI boot provide enhanced security and management options, ensuring reliable and secure network operations.
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 4.0 x16 |
| PCI Specification Revision | PCIe 4.0 |
| Expansion / Connectivity | |
| Interfaces | 2 x 100Gb Ethernet - QSFP56 |
| Networking | |
| Connectivity Technology | Wired |
| Status Indicators | Link/activity |
| Data Link Protocol | 100 Gigabit Ethernet |
| Ports | 100 Gigabit QSFP56 x 2 |
| Features | WOL, DCBX support, PXE support, LSO, LRO, RSS, UEFI support, SR-IOV, DCB, TSO, MSI-X, GRE, TSS, iSCSI boot, TCP/IP checksum offload, UDP/IP checksum offload, RoCE, PFC, NC-SI, VXLAN, NVGRE, FLR, MSI, Jumbo Frames support (up to 9000 bytes), Mware NetQueue and Microsoft VMQ, MCTP over SMBus, TruFlow, Interrupt coalescing, ETS, QCN, Multi-Host technology, OCP 3.0 support, vSwitch Acceleration, tunnel-aware stateless offloads, SMBus 2.0, NetQueue |
| Miscellaneous | |
| Compliant Standards | MSA SFF-8402 |
| Power | |
| Power Consumption Operational | 19.3 Watt |
| Processor / Memory | |
| Processor | Broadcom BCM57508 |
