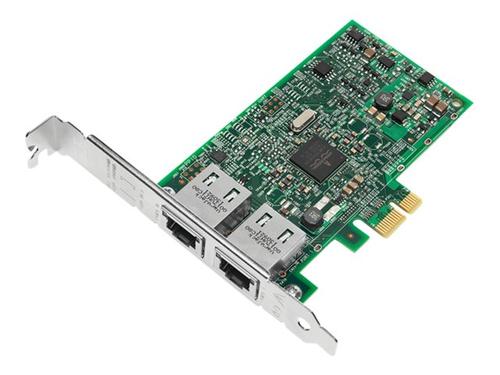

Broadcom NetXtreme BCM5720-2P - 2x 1GbE PCIe NIC
- Brand
- Broadcom
- Product code
- BCM95720A2003AC
- SKU
- P8DTMSW7T8R4Q
- 2x 1GbE PCIe NIC
- Weight: 0.20 KG
Product Info
Leveraging long-standing industry leadership in Ethernet, Broadcom now offers the NetXtreme BCM5720-2P Ethernet Server Adapter, providing the highest levels of performance, efficiency, and scalability for the enterprise data center.
Designed for today's enterprise and data center environments, the Broadcom BCM5720-2P Ethernet Server adapter is the ideal solution for multicore servers, delivering full line-rate throughput across all ports. The adapter utilizes Broadcom's field-proven dual-port BCM5720-2P integrated controller device to deliver lower power consumption and Energy Efficient Ethernet (EEE), reducing IT operation costs. The BCM5720-2P is compatible with x86 and x64 servers utilizing the PCIe v1.x and v2.x interfaces.
Increasing application workloads are placing greater demands on enterprise networks, and the BCM5720-2P-based dual-port 1GbE Server Adapter is the solution of choice for such environments, providing a reliable, highperformance, energy-efficient 1GbE connectivity solution.
Description
Robust connectivity
Equipped with dual RJ-45 connectors, this network adapter ensures reliable wired connectivity and supports Ethernet 1000Base-T, 100Base-TX, and 10Base-T for versatile network configurations.
Enhanced performance
Features like Advanced Error Reporting (AER), Energy Efficient Ethernet, and Jumbo Frames support enhance the data transfer efficiency and reliability, ensuring smooth and fast network performance.
Advanced networking
With support for both IPv4 and IPv6, the Broadcom NetXtreme BCM5720-2P offers networking capabilities. Additionally, functionalities like Receive Side Scaling (RSS) and Transmit Side Scaling (TSS) optimize the processing of network traffic, improving overall system performance.
Efficient management
Support for ACPI, PXE boot, and iSCSI remote boot allows for efficient management and deployment of networked systems, making it a suitable solution for enterprise environments.
Secure and compatible
Compliant with multiple IEEE standards and featuring a low-profile form factor, this network adapter ensures secure and compatible integration into a wide range of networking environments.
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T - RJ-45 |
| Networking | |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Connectivity Technology | Wired |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az |
| Ports | Gigabit Ethernet x 2 |
| Features | Flow control, ACPI support, IPv6 support, Jumbo Frames support, IPv4 support, teaming support, PXE support, RSS, Energy Efficient Ethernet, TSO, AER, MSI-X, iSCSI remote boot, TSS |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, SuSE Linux Enterprise Server 10 SP3, SuSE Linux Enterprise Server 10 SP4, SuSE Linux Enterprise Server 11 SP2, Microsoft Windows Server 2012, Red Hat Enterprise Linux 5.8, Red Hat Enterprise Linux 5.9, Red Hat Enterprise Linux 6.3, Red Hat Enterprise Linux 6.4, SuSE Linux Enterprise Server 11 SP3 |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory | |
| Processor | Broadcom BCM5720 |
| Dimensions & Weight | |
| Depth | 10.922 cm |
| Height | 6.858 cm |
