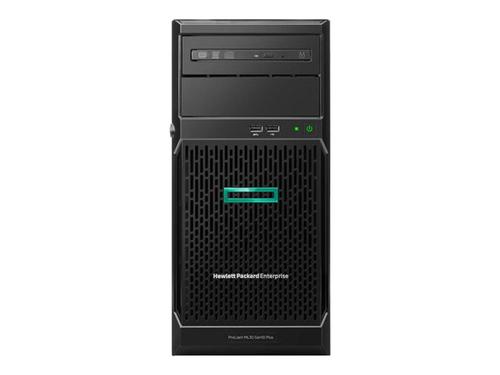

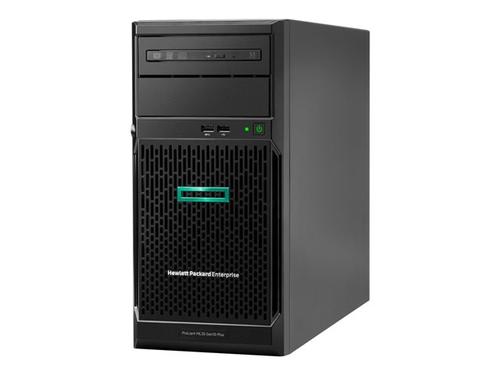

HPE ProLiant ML30 Gen10 Plus Performance - Server - tower - 4U - 1-way - 1 x Xeon E-2314 / up to 4.5 GHz - RAM 16 GB - SATA - hot-swap 3.5" bay(s) - no HDD - Gigabit Ethernet - monitor: none
- Brand
- Hewlett Packard Enterprise
- Product code
- P44720-421
- SKU
- TGZTTCU37DRQO
- EAN/GTIN
- 190017520940
- Server
- tower 4U
- 1-way
- 1 x Xeon E-2314 / up to 4.5 GHz
- RAM 16 GB
- SATA
- hot-swap 3.5" bay(s)
- no HDD
- Gigabit Ethernet
- monitor: none
- Weight: 12.50 KG
Product Info
The HPE ProLiant ML30 Gen10 Plus server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premises and hybrid cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a lower cost.
Description
Robust performance
Equipped with an Intel Xeon E-2314 processor and a clock speed of 2. 8 GHz that can turbo boost up to 4. 5 GHz, this server delivers reliable and high-speed performance for demanding business applications.
Flexible storage options
Features hot-swap server storage bays and supports various RAID levels (0, 1, 10, 5), allowing for flexible storage configurations and easy maintenance without system downtime.
Advanced security
The inclusion of a Trusted Platform Module (TPM 2. 0) security chip ensures that data and hardware are protected from external threats, providing peace of mind for sensitive business operations.
Comprehensive connectivity
With a range of interface options including VGA, LAN (Gigabit Ethernet), and multiple USB ports, this server offers versatile connectivity solutions for a variety of networking requirements.
Efficient management
Integrated Lights-Out 5 (iLO 5) remote management offers advanced capabilities, enabling efficient server management and monitoring from any location, reducing the need for physical access.
| Monitor | |
|---|---|
| Monitor Type | None. |
| Processor / Chipset | |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Clock Speed | 2.8 GHz |
| Number of Cores | Quad-Core |
| Max Turbo Speed | 4.5 GHz |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Chipset Type | Intel C256 |
| CPU | Intel Xeon E-2314 |
| Power | |
| Installed Qty | 1 |
| Device Type | Power supply |
| Power Provided | 350 Watt |
| Efficiency | 92% |
| Voltage Required | AC 100-120/200-240 V |
| 80 PLUS Certification | 80 PLUS Gold |
| General | |
| Type | Server |
| Hot-Swap Bays Qty | 4 |
| Server Scalability | 1-way |
| Product Form Factor | Tower - 4U |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localisation | Region: Europe |
| RAM | |
| Features | Unbuffered |
| Configuration Features | 1 x 16 GB |
| Effective Memory Speed | 3200 MHz |
| Rated Memory Speed | 3200 MHz |
| Installed Size | 16 GB (installed) / 128 GB (max) |
| Form Factor | DIMM 288-pin |
| Technology | DDR4 SDRAM - ECC |
| Slots | 4 (Total) / 3 (empty) |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Sound Emission | 28 dBA |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Cache Memory | |
| Cache Per Processor | 8 MB |
| Installed Size | L3 Cache - 8 MB |
| Storage Controller | |
| Channel Qty | 6 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| Dimensions & Weight | |
| Width | 17.5 cm |
| Weight | 10.1 kg |
| Depth | 47.5 cm |
| Height | 36.83 cm |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Features | PXE support |
| Ethernet Controller | Broadcom BCM5720 |
| Remote Management Controller | Integrated Lights-Out 5 |
| Remote Management Protocol | IPMI 2.0, SMASH CLP, SNMP 3 |
| Graphics Controller | |
| Video Interfaces | VGA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years - response time: next business dayLimited warranty - parts and labour - 1 year - on-site - response time: next business day |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Security Slot Type | Kensington security slot |
| Included Accessories | Non-hot plug non-redundant system fan, HPE standard heatsink |
| Compliant Standards | EMC, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.3, UEFI, TLS v1.2 |
| Hard Drive | |
| Type | No HDD |
| Expansion / Connectivity | |
| Bays | 4 (total) / 4 (free) x hot-swap 3.5" LFF |
| Interfaces | 1 x VGA1 x LAN (Gigabit Ethernet)1 x LAN (Gigabit Ethernet) / HPE iLO6 x USB 3.0 (1 front, 4 rear, 1 internal)1 x USB 2.0 (1 in front) |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x4 mode)2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height (x4 mode)1 (total) / 1 (free) x M.2 Card (PCIe x2 and SATA mode) |
| Optical Storage | |
| Type | No optical drive |
| Operating System / Software | |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
