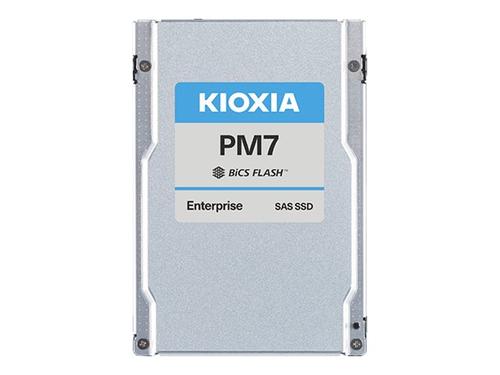

KIOXIA PM7-V Series KPM7VVUG1T60 - SSD - Enterprise - encrypted - 1600 GB - internal - 2.5" - SAS 24Gb/s - Self-Encrypting Drive (SED)
- Brand
- KIOXIA SSD
- Product code
- KPM7VVUG1T60
- SKU
- HP26ZGQLXCUS0
- EAN/GTIN
- 8592978517502
- SSD
- Enterprise
- encrypted
- 1600 GB
- internal
- 2.5"
- SAS 24Gb/s
- Self-Encrypting Drive (SED)
- Weight: 0.10 KG
Product Info
KIOXIA PM7-V Series 24G SAS Enterprise SSD is optimized for mixed use applications, including relational database, streaming media, data warehousing and web services. The series is designed to deliver balanced levels of performance, reliability, capacity and endurance for mixed use and read intensive environments.
Featuring KIOXIA 112-layer BiCS FLASH 3D flash memory, this 7th generation enterprise SAS SSD PM7-V offers 3 DWPD (Drive Writes Per Day) with big capacities.
Description
Enhanced durability
Built to withstand the rigors of the enterprise environment, the KIOXIA PM7-V Series solid state drive offers a shock acceleration operating tolerance of 1000 g and a vibration acceleration operating tolerance of 2. 17 g, ensuring reliability and stability under various conditions.
High-speed performance
With an impressive internal data rate of up to 4200 MBps for reading and 3400 MBps for writing, coupled with 4KB random reads of 720,000 IOPS and writes of 320,000 IOPS, this drive delivers swift and efficient data access and transfer speeds, making it suitable for demanding applications.
Advanced data security
The KIOXIA PM7-V Series is equipped with self-encrypting drive (SED) technology and hardware encryption, providing robust security measures to protect sensitive data from unauthorized access.
Reliable data integrity
Featuring end-to-end data protection, Power Loss Protection (PLP), and T10 Data Integrity Field (DIF) alongside T10 Multi-Stream Write capabilities, this SSD ensures the safety and integrity of your data through various means of protection.
Efficient power management
Designed with a power disable pin (Pin3) and an active typical power consumption of just 5 watts, the KIOXIA PM7-V Series SSD balances performance with energy efficiency, reducing operational costs in enterprise environments.
| General | |
|---|---|
| Hardware Encryption | Yes |
| Form Factor | 2.5" |
| Weight | 150 g |
| Height | 15 mm |
| Width | 69.85 mm |
| Device Type | Solid state drive - internal |
| Capacity | 1600 GB |
| Depth | 100.45 mm |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Interface | SAS 24Gb/s |
| Features | T10 Multi-Stream Write, End-to-end data protection, Power Loss Protection (PLP), T10 Data Integrity Field (DIF), Power Disable Pin (Pin3), 112-layer 3D BiCS FLASH |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Power | |
| Power Consumption | 5 Watt (active (typical)) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (operating) | 2.17 g @ 5-800 Hz |
| Humidity Range Operating | 5 - 95% RH |
| Performance | |
| Drive Writes Per Day (DWPD) | 3 |
| Drive Class | Enterprise |
| 4KB Random Write | 320000 IOPS |
| Drive Transfer Rate | 2.8 GBps (external) |
| 4KB Random Read | 720000 IOPS |
| Internal Data Rate | 4200 MBps (read) / 3400 MBps (write) |
| Reliability | |
| MTBF | 2,500,000 hours |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x SAS 24Gb/s |
